Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | A6120 |
| Part Number | 9199-00002 |
| Manufacturer | Emerson |
| Product Series | CSI 6500 Machinery Health Monitor |
| Product Type | Case Seismic Vibration Monitor |
| Measurement Type | Bearing case / casing seismic vibration |
| Channels | 2 independent channels |
| Module Format | 3U plug-in module |
| Rack Occupancy | 1 slot |
| Protection Standard | API 670 compliant |
| Sensor Type | Electro-dynamic seismic sensors |
| Compatible Sensors | Emerson 9266, 9267, 9268 |
| Input Type | Differential vibration input |
| Input Voltage Range | -5 to +15 VDC |
| Frequency Range | Adjustable 1 Hz to 2000 Hz |
| Outputs | Buffered outputs, proportional outputs, 0/4-20 mA, 0-10 V |
| Power Consumption | Maximum 6 W, 250 mA at 24 VDC |
| Operating Temperature | 0°C to 65°C |
| Application Equipment | Steam turbines, gas turbines, compressors, hydro turbines |
Application Scenarios & Pain Points
Rotating equipment protection depends on accurate vibration measurement. A bad vibration channel does not always create an immediate shutdown; sometimes it creates confusing alarms, unstable trends, or missing condition information.
Typical applications:
- Power Generation: Installed on steam and gas turbine monitoring racks to measure bearing casing vibration during startup, loading, and steady operation.
- Oil & Gas Compression: Used for compressor trains where casing vibration trends help identify mechanical degradation before major damage occurs.
- Petrochemical Facilities: Supports API 670 protection schemes for pumps, turbines, and rotating process equipment.
- Hydropower Stations: Applied on turbine-generator systems where casing vibration monitoring supports mechanical protection.
Field note: A generating station reported inconsistent vibration alarms on one turbine bearing location. The proximity probes were healthy because the system was monitoring casing vibration, not shaft movement. After replacing the A6120 module and verifying sensor scaling, the vibration readings returned to expected values.

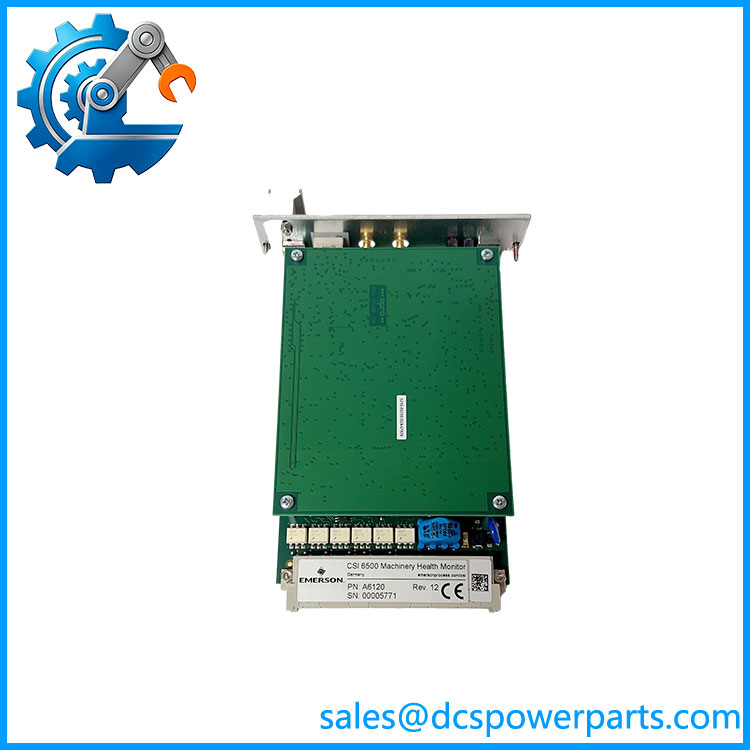

9199-00002 A6120
Related Products
- Emerson A6110 9199-00001 — Shaft relative vibration monitor. Uses proximity probes to measure shaft movement relative to bearings. Suitable for rotor displacement monitoring rather than casing vibration.
- Emerson A6125 9199-00069 — Case piezo vibration monitor. Designed for piezoelectric accelerometer inputs and newer vibration sensor installations.
- Emerson A6140 9199-00058 — Shaft absolute vibration monitor. Measures shaft vibration relative to a fixed reference point.
- Emerson A6210 9199-00003 — Thrust position, differential expansion, and rod drop monitor. Used for axial movement protection on turbines and compressors.
- Emerson A6220 9199-00009 — Shaft eccentricity monitor. Applied during startup and shutdown conditions where rotor bow detection is required.
- Emerson A6312 9199-00025 — Speed and key-phase monitoring module. Provides rotational speed and timing reference measurements.
- Emerson A6410 9199-00005 — Valve and case expansion monitor. Used for turbine thermal growth and expansion measurement.
- Emerson A6824 9199-00090 — Modbus communication module. Transfers CSI 6500 monitoring information to DCS or supervisory systems.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Confusing Case Vibration With Shaft Vibration
The A6120 measures casing/bearing housing vibration. It does not replace shaft relative vibration modules such as the A6110.
How to avoid: Confirm the existing sensor type before ordering. Check whether the field device is an accelerometer/seismic sensor or an eddy-current probe.
⚠️ Incorrect Sensor Compatibility
Older installations may use electro-mechanical velocity sensors, while newer systems may use different sensor technology.
How to avoid: Verify the installed sensor model, signal type, and scaling parameters before commissioning.
⚠️ Alarm Settings Lost During Replacement
A replacement card may start with default limits that do not match the machine protection scheme.
How to avoid: Record alert, danger, delay, and bypass settings before removing the original module.
Frequently Asked Questions (FAQ)
What is the Emerson A6120 9199-00002 used for?
The A6120 is a CSI 6500 Case Seismic Vibration Monitor used to measure overall casing vibration on critical rotating equipment such as turbines, compressors, and other machinery.
Is the A6120 the same as the A6110 vibration module?
No. The measurement methods are different:
- Case seismic vibration using casing-mounted sensors
- A6110: Shaft relative vibration using proximity probes
The correct replacement depends on the original machinery protection design.
What sensors work with the ?
The module is designed for electro-dynamic seismic sensors, including Emerson 9266, 9267, and 9268 sensor models.
Can the be hot-swapped?
The module design supports hot-swappable installation within compatible CSI 6500 rack systems. However, site procedures should still be followed before removing protection hardware.
Why does the vibration value change after installing a replacement ?
Possible causes include:
- Incorrect sensor selection
- Wrong channel configuration
- Different alarm scaling
- Missing original settings
- Wiring or connector issues
What should be checked before purchasing an 9199-00002?
Verify:
- Complete part number
- CSI 6500 rack type
- Sensor model
- Existing configuration file
- Alarm and trip parameters
- Firmware compatibility
Is a refurbished Emerson suitable for machinery protection service?
A tested refurbished unit can be suitable when it passes channel simulation testing, power verification, sensor input checks, alarm output verification, and compatibility review with the installed CSI 6500 system.
