Siemens 6DD2920-0AJ0 Thyristor Trigger Monitoring SAV22 Complete Module Product Description
Product Overview
Siemens 6DD2920-0AJ0 is a Thyristor Trigger Monitoring Complete Module designed for the Siemens SIMADYN D high-performance digital control system. As a specialized converter monitoring component, Siemens 6DD2920-0AJ0 provides thyristor firing pulse supervision, trigger signal monitoring, and protection logic functions for high-power converter and drive applications. The module belongs to the SIMADYN D control platform and is specifically associated with SAV22 rack-based thyristor trigger monitoring configurations.
The Siemens 6DD2920-0AJ0 is developed for demanding industrial power electronics systems where precise thyristor triggering and reliable fault detection are essential. In controlled rectifier systems, DC drives, and converter applications, correct firing pulse timing directly affects system stability, motor performance, and equipment protection. The module monitors trigger-related signals and provides feedback information to the SIMADYN D controller, helping identify missing pulses, abnormal firing sequences, or converter-side failures before they cause major system interruptions.
Within the Siemens SIMADYN D architecture, Siemens 6DD2920-0AJ0 acts as a dedicated interface between the digital control system and thyristor power sections. Its modular construction allows integration into existing SAV22 rack assemblies, supporting long-term maintenance of installed converter systems. The module is widely used in industrial drives, steel production equipment, mining machinery, energy conversion systems, and other applications requiring highly reliable closed-loop control and power semiconductor supervision.
The part number 6DD2920-0AJ0 corresponds to a digital control system component manufactured by Siemens for their SIMADYN D industrial automation and drive product line.
Product Specifications
-
Manufacturer: Siemens
-
Product Family: SIMADYN D (Digital Control System)
-
Description: Thyristor Trigger Monitoring / Control System (Complete Module Carrier / Rack SAV22 Complete)
-
Net Weight: Approx. 5.00 kg
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 6DD2920-0AJ0 |
| Manufacturer | Siemens |
| Product Type | Thyristor Trigger Monitoring Complete Module |
| Product Series | SIMADYN D |
| Main Function | Thyristor firing pulse monitoring and protection logic |
| Application Platform | SIMADYN D digital control system |
| Compatible Rack | SAV22 module rack |
| Application | Thyristor converters, DC drives, power electronics systems |
| Module Structure | Complete plug-in control module assembly |
| Signal Type | Thyristor trigger and feedback monitoring signals |
| Interface Type | SIMADYN D internal system interface |
| Control Function | Trigger supervision, fault detection, status feedback |
| Power Supply | SIMADYN D rack internal power supply |
| Installation Method | Rack-mounted plug-in installation |
| Cooling Method | Cabinet forced/natural cooling depending on system design |
| Protection Class | IP20 (cabinet installation) |
| Operating Environment | Industrial automation environment |
| Country of Origin | Germany |
Main Features and Advantages
Advanced thyristor trigger monitoring:
The primary function of Siemens 6DD2920-0AJ0 is monitoring thyristor trigger circuits in high-power converter systems. Accurate trigger pulse control is essential for stable operation of controlled rectifiers and DC drive systems. The module continuously supervises firing signals and provides reliable feedback to the control system.
High-speed fault detection:
In power electronic converters, missing or incorrect trigger pulses can lead to current imbalance, converter faults, or equipment shutdown. Siemens 6DD2920-0AJ0 provides fast detection of abnormal trigger conditions, allowing the SIMADYN D controller to react quickly and improve system protection.

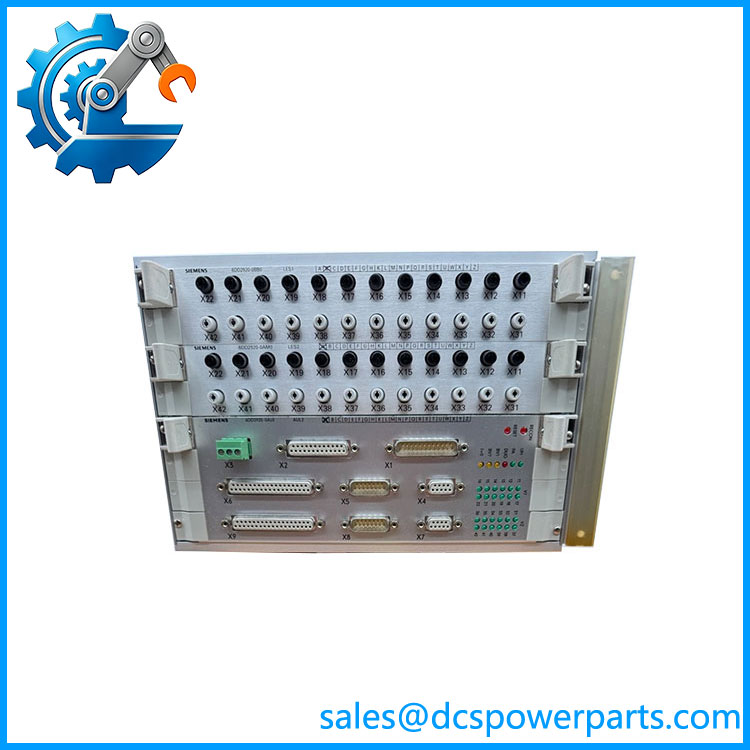

6DD2920-0AJ0
Optimized for SIMADYN D SAV22 systems:
Designed specifically for Siemens SIMADYN D platforms, Siemens 6DD2920-0AJ0 integrates directly with SAV22 rack configurations. This compatibility simplifies replacement work and allows existing industrial installations to continue operating without major hardware modifications.
Reliable converter operation:
Large industrial converters require stable firing control to maintain output voltage and current regulation. Siemens 6DD2920-0AJ0 improves converter reliability by ensuring that trigger signals are continuously monitored and abnormal conditions are detected at an early stage.
Industrial-grade electrical design:
Converter environments typically involve high electromagnetic interference, voltage fluctuations, and continuous operation. Siemens 6DD2920-0AJ0 is designed with robust electronic circuitry suitable for demanding industrial conditions.
Improved equipment protection:
By supervising thyristor triggering processes, Siemens 6DD2920-0AJ0 helps prevent damage caused by incorrect switching sequences or control failures. This improves the safety and availability of high-power drive systems.
Modular maintenance capability:
The plug-in design of Siemens 6DD2920-0AJ0 allows engineers to replace individual control components during maintenance operations. This reduces repair time and minimizes production downtime.
Legacy system support:
Although SIMADYN D is a legacy control platform, many industrial facilities continue operating these systems because of their reliability. Siemens 6DD2920-0AJ0 provides an effective spare solution for maintaining existing converter control installations.
Application Areas
DC Drive Systems:
Siemens 6DD2920-0AJ0 is widely used in large DC drive systems where thyristor converters provide controlled power for industrial motors. It supports reliable firing pulse monitoring to maintain accurate speed and torque control.
Steel and Metallurgy Industry:
Steel plants require extremely stable drive systems for rolling mills, winding equipment, and processing lines. Siemens 6DD2920-0AJ0 helps ensure reliable operation of thyristor-controlled drives used in continuous production environments.
Industrial Converter Equipment:
High-power converters require precise semiconductor switching supervision. Siemens 6DD2920-0AJ0 provides trigger monitoring functions that improve converter stability and reduce unexpected failures.
Mining Applications:
Heavy-duty mining equipment such as conveyors, hoists, and crushers often use large electrical drives. Siemens 6DD2920-0AJ0 supports reliable operation of converter-based motor control systems in harsh environments.
Energy and Power Systems:
Power plants and industrial energy facilities use controlled drives for pumps, fans, compressors, and auxiliary equipment. Siemens 6DD2920-0AJ0 contributes to stable operation of these SIMADYN D-controlled systems.
Industrial Retrofit Projects:
For existing SIMADYN D installations, Siemens 6DD2920-0AJ0 is an important replacement component. It allows operators to maintain original system architecture while extending equipment service life and reducing modernization costs.
Related Products
- Siemens 6DD2920-0AL0 – Trigger Monitoring Logic Module for SIMADYN D SAV21/SAV22 converter applications.
- Siemens 6DD2920-0AM0 – LES2 Light Input/Sender Module for optical signal transmission within SIMADYN D systems.
- Siemens 6DD2920-0BB0 – LES1 Interface Module used for SIMADYN D signal interfacing.
- Siemens 6DD2920-0AB1 – SE48.1 Interface Module for SIMADYN D control systems.
