Description
Product Overview
Bently Nevada 3500/40M 135489-04 is a specialized I/O interface module designed for the 3500 Machinery Protection System. It works together with the 3500/40M Proximitor Monitor to connect proximity probe signals from rotating machinery sensors into the monitoring rack. The module provides the field-side interface, including internal barriers and internal termination capability, allowing proximity transducer signals from hazardous-area installations to be connected directly through the rack interface.
The Bently Nevada 3500/40M 135489-04 configuration is commonly specified as 3500/40M-03-00, where the “03” option represents the Proximitor I/O module type with internal barriers and internal terminations. The associated 3500/40M monitor is a four-channel monitoring device that accepts proximity transducer inputs, conditions the signals, calculates vibration or position values, and compares measured parameters against user-defined alarm settings.
Unlike a standalone vibration sensor or transmitter, the 135489-04 is part of a complete machinery protection chain:
Proximity Probe → Proximitor Sensor → 135489-04 I/O Module → 3500/40M Monitor → 3500 Rack → Alarm/Protection Logic
For maintenance engineers, correct identification is critical because different 3500/40M I/O modules have different termination methods and barrier configurations. The 135489-04 should not be replaced with standard termination versions such as 125680-01 or external termination versions such as 126615-01 without verifying the cabinet design and hazardous-area requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Current Ownership | Baker Hughes |
| Series | 3500 Machinery Protection System |
| Monitor Type | 3500/40M Proximitor Monitor |
| I/O Module Part Number | 135489-04 |
| Configuration | 3500/40M-03-00 |
| Product Type | Proximitor I/O Module |
| Termination Type | Internal Terminations |
| Safety Feature | Internal Barriers |
| Input Channels | 4 Proximitor channels |
| Sensor Compatibility | Bently Nevada proximity transducers |
| Measurement Functions | Radial vibration, thrust position, eccentricity, differential expansion, REBAM |
| Rack System | Bently Nevada 3500 Rack |
| Typical Power Consumption | Approx. 7.7 W for 3500/40M assembly |
| Installation Location | Rear I/O position of 3500 rack |
Main Features and Advantages
Internal Barrier Interface
The main distinction of 135489-04 is the integrated barrier design. The module is intended for installations where proximity probes are located in hazardous areas and require an approved interface between field wiring and monitoring electronics.
The internal barrier eliminates the need for separate external barrier assemblies in compatible configurations, simplifying rack-level installation.
Four-Channel Proximitor Monitoring Support
The module supports the 3500/40M four-channel monitoring architecture. Each channel receives proximity transducer signals and allows the monitor to process machinery condition parameters.
Typical applications include:
- Shaft radial vibration
- Axial thrust position
- Rotor eccentricity
- Differential expansion
- REBAM measurement
Hazardous-Area Machinery Protection
The combination of the 3500/40M monitor and 135489-04 I/O module is widely used on critical rotating equipment where early detection of mechanical problems is required.
Typical monitored equipment includes:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Large motors
- Generators
Direct Rack Integration
The internal termination design allows field wiring to connect directly at the rack I/O module position. This can reduce additional termination hardware compared with external termination arrangements.
Legacy System Support
Many plants continue operating 3500 systems for long-life rotating equipment. Maintaining a tested spare 135489-04 can reduce outage risk when an installed I/O module fails.

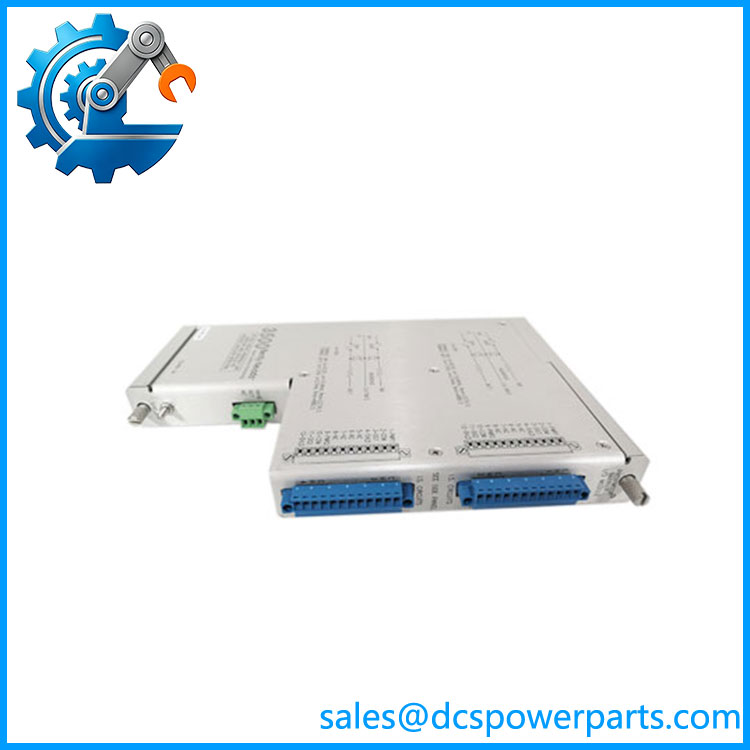

135489-04
Application Scenarios
Turbine Supervisory Instrumentation (TSI)
The 3500/40M platform is commonly integrated into turbine supervisory systems for measuring shaft position and vibration parameters.
Compressor Protection
The module can support proximity-based vibration monitoring on critical compressor trains.
Generator Monitoring
Large rotating electrical machines may use proximity probes to monitor shaft movement and mechanical condition.
Hazardous Process Areas
The internal barrier configuration makes the 135489-04 suitable for installations where field sensors are located in classified areas.
Plant Machinery Protection Systems
The module is used as part of a continuous monitoring chain that provides alarms and protective actions based on configured vibration or position limits.
Related Components
- 3500/40M Proximitor Monitor (176449-01)
Main four-channel monitor module paired with the I/O card. - 125680-01
Proximitor I/O Module with internal terminations without internal barriers. - 126615-01
Proximitor I/O Module with external terminations. - 149716-01
TMR Proximitor I/O Module with external terminations. - 3300 XL Proximitor Sensors
Common proximity transducer family used with 3500 monitoring systems.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Replace 135489-04 With Any 3500/40M I/O Card
Although several I/O modules physically fit the 3500 rack, they are not functionally identical.
Key differences:
| Part Number | Configuration |
|---|---|
| 135489-04 | Internal barriers + internal termination |
| 125680-01 | Internal termination only |
| 126615-01 | External termination |
| 149716-01 | TMR external termination |
⚠️ Verify Hazardous-Area Requirements
Before replacement, confirm:
- Area classification
- Probe model
- Barrier requirements
- Existing certification requirements
- Wiring method
Removing a barrier-equipped module and installing a standard I/O module can invalidate the original installation design.
⚠️ Confirm Probe Compatibility
The module is designed for proximity measurement systems. Verify:
- Probe model
- Extension cable length
- Proximitor driver type
- Gap voltage
- Calibration requirements
A healthy I/O module cannot compensate for an incorrect probe/cable combination.
⚠️ Refurbished Testing Should Include More Than Power-On
A meaningful evaluation should include:
- Rack communication test
- Channel input simulation
- Alarm function verification
- Barrier inspection
- Connector inspection
- LED status verification
- Configuration compatibility check
Frequently Asked Questions
What is Bently Nevada 135489-04?
It is a 3500/40M Proximitor I/O Module with Internal Barriers and Internal Terminations used in the Bently Nevada 3500 machinery protection system.
Is 135489-04 the complete 3500/40M monitor?
No. The complete monitor assembly consists of the 3500/40M monitor module and the selected I/O module configuration. The 135489-04 is the rear I/O module.
How many channels does it support?
The associated 3500/40M monitor supports four proximity input channels.
What is the difference between 135489-04 and 125680-01?
- 135489-04: Internal barriers + internal termination
- 125680-01: Internal termination without internal barriers
Can 135489-04 replace a 126615-01?
Not automatically. The termination method and hazardous-area interface are different.
What should I request when buying a replacement?
For a used or refurbished 3500/40M 135489-04, request:
- Front and rear photos
- Exact part number verification
- Rack compatibility confirmation
- Barrier condition inspection
- Channel simulation test
- LED diagnostic test
- Connector inspection
- Configuration compatibility check
- Test report
- Warranty information
