Description
Product Overview

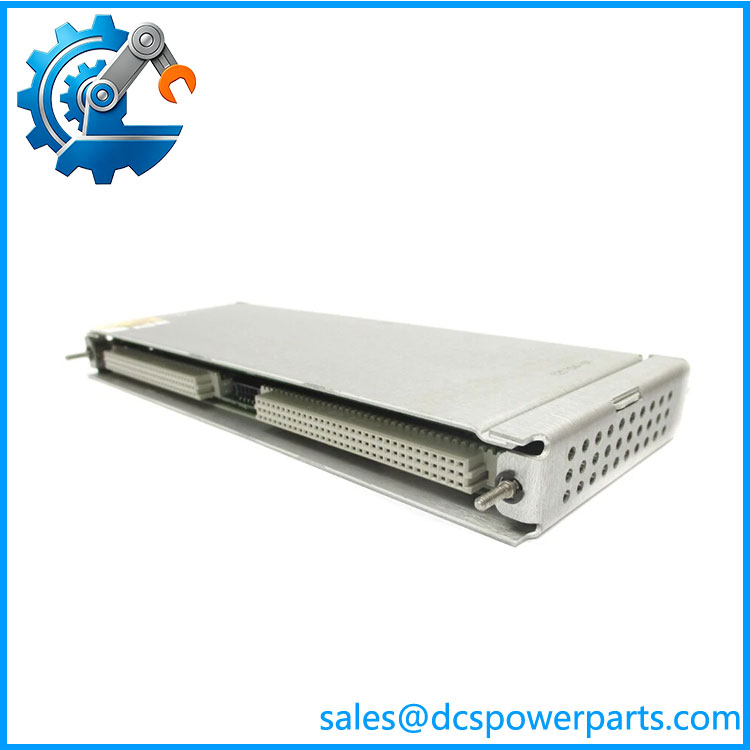

The Bently Nevada 3500/34 125704-01 is the TMR Relay I/O Module used as part of the 3500 Machinery Protection System’s Triple Modular Redundant relay architecture. Unlike a standard 3500 relay module, this hardware is specifically associated with the TMR relay arrangement, where three independent monitor paths contribute to a voted protection decision. The module provides the physical relay I/O interface between the 3500 system and the plant’s external alarm, shutdown, and interlock circuits.
The Bently Nevada 3500/34 125704-01 works with the 3500/34 TMR Relay Module architecture rather than functioning as an independent programmable relay controller. In the complete arrangement, the TMR relay logic uses redundant monitor information and 2-out-of-3 voting to reduce the possibility that a single failed monitoring channel will produce an incorrect machinery-protection action. This makes the 125704-01 relevant to turbine, compressor, generator, pump, and other critical rotating-equipment protection systems where relay availability and fault tolerance are important.
For procurement purposes, the distinction between 125704-01 and 125696-01 is important. They are associated with the same 3500/34 TMR relay function but represent different hardware positions within the architecture. 125696-01 is the TMR Relay Module, while 125704-01 is the corresponding TMR Relay I/O Module. A replacement should therefore be matched against the complete installed 3500/34 configuration rather than selected solely from the 3500/34 designation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Series | 3500/34 |
| Part Number | 125704-01 |
| Product Type | TMR Relay I/O Module |
| Architecture | Triple Modular Redundancy |
| Associated Relay Module | 3500/34, 125696-01 |
| Relay Function | Alarm / trip / shutdown output interface |
| Voting Architecture | 2-out-of-3 TMR |
| Application | Machinery protection |
| External Interface | Relay I/O |
| System Rack | Bently Nevada 3500 |
| Configuration | 3500 rack configuration |
| Typical Equipment | Turbines, compressors, generators, pumps |
| Power | Supplied through 3500 rack |
| Firmware | System-dependent |
| Mounting | 3500 rack |
| Installation | Full-height module position |
| Condition | New Surplus / Refurbished / Tested Replacement |
Main Features and Advantages
Dedicated TMR Relay Interface
The primary purpose of 125704-01 is to provide the relay I/O portion of the 3500/34 TMR architecture. It should not be treated as a conventional four-channel relay card such as the 3500/32.
The TMR arrangement uses independent monitor paths and voting logic. This is intended to allow the protection system to tolerate certain single-channel faults while maintaining the required machinery-protection function.
3500/34 TMR Architecture
The 3500/34 system is designed around Triple Modular Redundancy. Three independent protection paths are evaluated, with the resulting logic used to control the TMR relay outputs.
This arrangement is particularly useful for:
- Steam turbines
- Gas turbines
- Turbo-compressors
- Large generators
- Critical pumps
- Rotating machinery with shutdown requirements
125704-01
External Trip and Alarm Interface
The TMR relay I/O hardware provides the physical connection between the 3500 protection system and external plant circuitry. Depending on the engineered configuration, these outputs can participate in:
- Machinery shutdown
- Alarm annunciation
- Emergency interlocks
- Trip circuits
- Auxiliary protection logic
The actual relay contact arrangement and field wiring must be verified against the installed system documentation.
Important Part-Number Distinction
The following two numbers should not be confused:
| Part Number | Description |
|---|---|
| 125696-01 | 3500/34 TMR Relay Module |
| 125704-01 | 3500/34 TMR Relay I/O Module |
A plant requesting a “3500/34 relay module” may require one or both components depending on the existing rack configuration. Confirm the installed hardware before ordering.
Replacement Considerations
Before replacing Bently Nevada 3500/34 125704-01, verify:
- Exact part number: 125704-01
- Installed 3500/34 configuration
- Associated 125696-01 TMR Relay Module
- Number and type of monitor modules
- TMR voting configuration
- Relay logic
- Existing field wiring
- Trip/interlock assignments
- Rack configuration
- Hardware and firmware revisions
- Existing alarm and shutdown testing procedures
A physically compatible relay I/O module should not be assumed to be functionally interchangeable without checking the complete TMR architecture.
Related Bently Nevada Products
- 3500/34 125696-01 — TMR Relay Module.
- 3500/32 — Standard 4-channel Relay Module; not equivalent to the TMR architecture.
- 3500/22M — Transient Data Interface Module.
- 3500/25 — Enhanced Keyphasor Module.
- 3500/42M — Proximitor/Seismic Monitor.
- 3500/60 — Temperature Monitor.
- 3500/92 — Communication Gateway.
FAQ
What is Bently Nevada 125704-01?
125704-01 is the TMR Relay I/O Module associated with the Bently Nevada 3500/34 Triple Modular Redundant relay system.
Is 125704-01 the same as 125696-01?
No. 125696-01 is the 3500/34 TMR Relay Module, while 125704-01 is the TMR Relay I/O Module. They perform different roles within the same TMR relay architecture.
Is 125704-01 a standard relay output module?
No. It is specifically associated with the TMR relay architecture of the 3500/34 system.
Can it replace a 3500/32 relay module?
No—not as a direct substitution. The 3500/32 uses a different relay architecture from the 3500/34 TMR system.
What should be checked before installation?
Confirm the complete 3500/34 TMR configuration, associated 125696-01 module, monitor channels, relay logic, field wiring, and rack configuration before returning the protection system to service.
Procurement judgment: Bently Nevada 3500/34 125704-01 should be specified as the TMR Relay I/O Module, not simply as a generic relay card. The critical compatibility issue is the complete 3500/34 TMR architecture, particularly the relationship between 125704-01 and 125696-01 and the installed monitor/voting configuration.
