ABB 216NG63A HESG441635R1 HESG216879/K Product Description
Product Overview

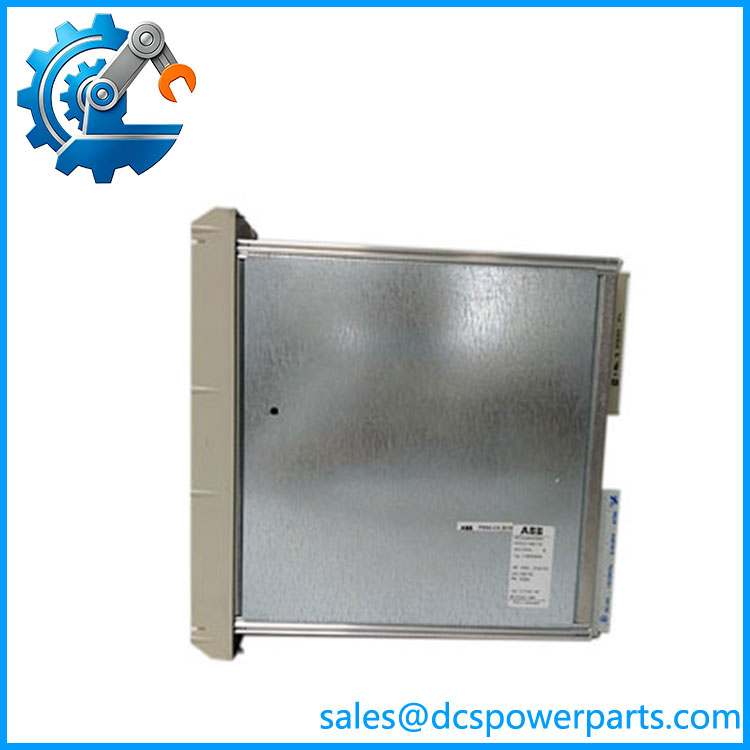

ABB 216NG63A HESG441635R1 HESG216879/K is a logic/control board associated with ABB’s REG 216 generator protection system. Available technical references identify the complete designation as a generator-protection logic card used within ABB’s modular digital protection architecture. The board performs high-speed signal processing and protection logic functions, helping the protection system evaluate electrical operating conditions and initiate appropriate responses when abnormal generator conditions are detected.
The ABB 216NG63A is designed for use in critical power-generation applications rather than as a conventional PLC or general-purpose DCS I/O module. It forms part of the electronic protection chain responsible for monitoring generator-related measurements, processing protection algorithms and supporting rapid tripping decisions. The HESG441635R1 / HESG216879/K identifiers provide additional hardware and manufacturing references that should be matched when replacing an installed board.
For maintenance of legacy ABB generator-protection systems, 216NG63A HESG441635R1 HESG216879/K is particularly valuable as a replacement logic assembly. Maintaining the original board type helps preserve established protection settings, rack architecture, field connections and commissioning configuration while minimizing plant downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 216NG63A HESG441635R1 HESG216879/K |
| Manufacturer | ABB |
| Product Family | REG 216 |
| Product Type | Generator Protection Logic / Control Board |
| Hardware Designation | 216NG63A |
| Main Function | Protection Logic and Signal Processing |
| Protection Platform | ABB REG 216 |
| Processing | Digital Signal Processing |
| Protection Functions | Configuration dependent |
| Differential Protection | Supported in applicable REG 216 configuration |
| Trip Response | Fast digital protection processing |
| Installation | Modular Plug-in Protection Rack |
| System Application | Generator Protection and Control |
| Typical Equipment | Synchronous and induction generators |
| Operating Environment | Industrial Protection Cabinet |
| Hardware References | HESG441635R1 / HESG216879/K |
| Part Number | 216NG63A |
Note: Publicly available aftermarket sources provide conflicting descriptions of this hardware, including variable-speed drive, digital-output and power-amplifier classifications. The strongest system-level identification is REG216 generator-protection logic card. Therefore, detailed electrical values such as channel count, supply voltage, output current and communication interface should be verified against the installed ABB protection-system documentation before engineering replacement.
Main Features and Advantages
Dedicated Generator Protection Logic
The primary application of ABB 216NG63A is within the REG216 generator-protection architecture. Unlike a standard automation I/O module, the board is intended for protection-oriented signal processing where abnormal electrical conditions must be identified quickly and reliably.
High-Speed Digital Processing
The 216NG63A HESG441635R1 HESG216879/K uses digital processing techniques to evaluate protection information. Available technical references associate the board with DSP-based processing and fast differential-protection algorithms, supporting rapid fault recognition and trip decisions.
216NG63A
Protection Function Integration
Depending on the complete REG216 configuration, the protection system can provide functions such as overcurrent, overvoltage, undervoltage, reverse-power and differential protection. The 216NG63A contributes to this broader protection architecture rather than operating as an isolated standalone controller.
Modular Plug-In Construction
The board is designed as a modular electronic assembly. This allows maintenance personnel to replace a defective protection card while retaining the remainder of the protection rack and associated system hardware. For long-running power stations, this can substantially simplify corrective maintenance.
Continuous Diagnostic Capability
REG216 protection architecture incorporates self-monitoring and fault-detection functions. These capabilities help maintenance teams identify electronic hardware abnormalities and distinguish equipment faults from genuine generator protection events.
Long-Term Legacy-System Support
The ABB HESG441635R1 / HESG216879/K identifiers are particularly important for spare-parts management. Older generator protection systems often contain several visually similar boards with different functions or revisions, so matching the complete board designation reduces the risk of installing an incompatible assembly.
Application Fields
ABB 216NG63A HESG441635R1 HESG216879/K is primarily applicable to generator protection systems in electrical power-generation facilities. In thermal power plants, it can form part of protection equipment serving synchronous generators driven by steam or gas turbines. The protection system continuously evaluates electrical parameters and can initiate configured trip actions when dangerous operating conditions are detected.
In hydroelectric generating stations, the 216NG63A ABB can be used within legacy REG216 installations protecting generator units against electrical faults and abnormal operating states. Fast protection processing is particularly important because generator faults can produce severe thermal and electromechanical stresses if they are not cleared promptly.
Industrial cogeneration plants, captive power stations and other facilities with ABB REG216 protection equipment can also require this board for lifecycle maintenance. The modular architecture allows replacement of the failed logic assembly without necessarily replacing the complete generator protection system.
For maintenance departments, 216NG63A HESG441635R1 HESG216879/K is best treated as an exact-match replacement component. The complete hardware designation, firmware/configuration requirements and existing REG216 rack arrangement should be checked before commissioning to ensure that the replacement performs the intended protection functions.
Related Products
- REG 216 — ABB digital generator-protection platform in which the 216NG63A logic card is used.
- 216NG63A — Core ABB hardware designation for the generator-protection logic board.
- HESG441635R1 — ABB hardware/assembly reference associated with the 216NG63A.
- HESG216879/K — Additional ABB manufacturing/reference designation for the same hardware assembly.
- 216VC62A — Related ABB RE.216 electronic module used in legacy generator protection and control architecture.
- 216AB61 — Related RE.216 electronic module used within ABB’s modular protection system.
- 216EA61B — Related ABB RE.216 electronic assembly used in the protection rack.
- 216NG61 — Related ABB power-supply hardware used with applicable RE.216/REG216 electronic assemblies.
- 216NG62 — Related auxiliary power-supply module for ABB protection-system configurations.
- REG216 Protection Rack — Modular rack infrastructure accommodating compatible generator-protection electronic boards.
