Description
Product Features
The 0100-71498 is a rugged, industrial-grade hardware module engineered for reliable performance in factory automation, machinery monitoring and industrial control systems. Designed to meet strict industrial reliability standards, this module delivers stable mechanical assembly, consistent electrical performance and strong environmental durability. It serves as a key structural and functional component for industrial rack systems and monitoring equipment, ensuring long-term operational dependability in round-the-clock industrial applications.
1. Robust Industrial Construction: Built with high-strength industrial materials and precision manufacturing technology, featuring solid structural rigidity and excellent mechanical stability. It resists deformation and structural damage during long-term industrial operation, laying a solid foundation for stable equipment operation.
2. Excellent Environmental Durability: Adopts professional anti-aging, dust-proof and moisture-proof treatment, adapting to complex industrial environments including temperature changes, humid air and dusty working conditions. It maintains stable structural and functional performance without premature aging or failure.
3. Standardized Universal Design: Manufactured in strict accordance with industrial unified specifications, with standard overall dimensions and interface positions. It features strong universality, compatible with matching industrial rack systems and supporting rapid assembly and replacement.
4. High Operational Stability: Optimized internal structure and circuit layout reduce operational heat and running loss. The module maintains consistent working performance under long-term continuous operation, effectively lowering equipment failure probability.
5. Easy Installation & Maintenance: Adopts lightweight integrated structural design with simple and intuitive assembly structure. It supports quick plug-in installation and disassembly, greatly simplifying on-site maintenance work and shortening equipment downtime.
6. Reliable Electrical Protection: Equipped with basic industrial electrical protection design, which effectively avoids performance anomalies caused by minor electrical fluctuations. It ensures safe and coordinated operation with other industrial control and monitoring modules.

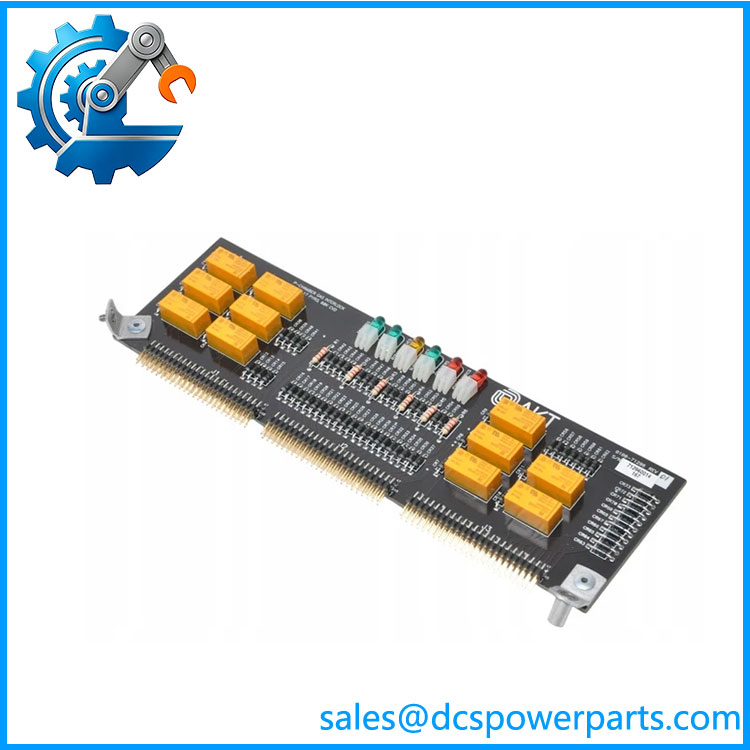

0100-71498
Product Parameters
|
Parameter Item
|
Technical Specification
|
|
Product Model
|
0100-71498
|
|
Product Category
|
Industrial General-purpose Hardware Module
|
|
Applicable Scenarios
|
Industrial control rack system, machinery monitoring equipment, automated production system
|
|
Structural Characteristic
|
Integrated high-strength industrial structure, standard installation size
|
|
Environmental Grade
|
Industrial dustproof, moisture-proof and anti-aging grade
|
|
Working Temperature
|
-20℃ to +65℃
|
|
Storage Temperature
|
-40℃ to +85℃
|
|
Working Humidity
|
5% – 95% RH (non-condensing)
|
|
Shock & Vibration Resistance
|
Industrial-grade anti-vibration and impact resistance
|
|
Installation Method
|
Standard cabinet rack plug-in installation
|
|
Continuous Operation
|
Support 24/7 long-term continuous industrial operation
|
Product Usage Method
1. Pre-use Inspection: Before installation, visually inspect the 0100-71498 module for surface damage, structural deformation and interface wear. Confirm the product model matches the supporting industrial equipment system to ensure complete applicability.
2. On-site Preparation: Ensure the installation environment is dry, clean and well-ventilated. Cut off the power supply of the industrial cabinet and complete static protection measures to avoid static damage to the module and on-site equipment.
3. Module Installation: Align the module with the standard cabinet slot, insert it horizontally and smoothly, and fasten the fixing buckle. Check the overall firmness to ensure no looseness, which can prevent abnormal operation caused by equipment vibration.
4. Position Check & Wiring: After installation, confirm the module is in place with accurate positioning. Complete the matching wiring work according to on-site equipment requirements, ensure neat and firm wiring, and avoid wrong connection and virtual connection.
5. Power-on Debugging: After confirming all installation and wiring work is completed, perform segmented power-on test. Check the module running status and equipment matching condition to ensure no abnormal noise, heating or functional failure.
6. Daily Maintenance & Management: During daily operation, regularly check the module surface cleanliness, fixing status and operating temperature. Timely clean dust and check for aging and looseness to maintain long-term stable operation of the module.
Product Application Fields
1. Industrial Automation Systems: Widely used in automated production line control cabinets and supporting hardware systems, providing stable structural support and functional matching for automated control equipment, ensuring continuous and efficient operation of production lines.
2. Mechanical Equipment Monitoring: Applied in industrial machinery condition monitoring systems, matching with monitoring hosts and functional modules to assist in stable operation of equipment state detection, fault monitoring and data collection functions.
3. Petrochemical Industrial Equipment: Suitable for control cabinet supporting equipment in petrochemical production environments. With good dust-proof and moisture-proof performance, it adapts to harsh chemical industrial working conditions and ensures stable operation of on-site control systems.
4. Power Industry Supporting Facilities: Used in power plant equipment monitoring cabinets and power distribution auxiliary systems, providing reliable hardware support for power equipment monitoring and safety control, improving the overall stability of power system operation.
5. Heavy Industry & Metallurgical Equipment: Adaptable to heavy industrial production scenarios such as metallurgy and mining with strong vibration and high dust. It serves as important supporting hardware for on-site industrial control equipment to guarantee long-term reliable operation of industrial facilities.
