Eaton XIOC-BP-XC1 Basic Rack / Backplane Module Product Description
Product Overview
Eaton XIOC-BP-XC1 is a basic rack and backplane module designed for the Eaton XIOC modular PLC system, providing mechanical mounting, internal bus connection, and expansion support functions for XC100/XC200 series programmable controllers and XIOC I/O expansion modules. As a key hardware component in Eaton’s compact automation controller architecture, Eaton XIOC-BP-XC1 creates a stable platform for integrating CPU modules and signal expansion modules, enabling flexible configuration of industrial control systems.
The Eaton XIOC-BP-XC1 is designed as a modular mounting base that supports one controller position and one additional XIOC signal module position. Through the integrated backplane bus structure, the module provides electrical connection and data communication between the CPU and expansion I/O modules without requiring complex external wiring. This design simplifies cabinet installation, improves system organization, and allows engineers to expand automation functions according to project requirements.
As part of the Eaton / Moeller XC automation platform, Eaton XIOC-BP-XC1 is widely used in PLC-based machine control, factory automation, process monitoring, and distributed control applications. Its compact dimensions, DIN rail mounting capability, and compatibility with XC100/XC200 controllers make Eaton XIOC-BP-XC1 an effective solution for building scalable automation systems with reduced installation effort and improved maintainability.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | XIOC-BP-XC1 |
| Manufacturer | Eaton (Moeller) |
| Product Type | PLC Rack / Backplane Module |
| Product Series | XIOC / XC100 / XC200 Automation Platform |
| Main Function | CPU mounting and XIOC I/O module expansion |
| Supported Controllers | Eaton XC100 / XC200 CPU series |
| Expansion Capacity | 1 XIOC signal module slot |
| Total Slot Configuration | 3 slots (2 controller positions + 1 XIOC module position) |
| Bus Interface | Internal XIOC backplane bus |
| Mounting Method | DIN rail mounting / direct mounting |
| Dimensions (W × H × D) | 96.5 × 28 × 107 mm |
| Weight | Approx. 0.125 kg |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Certification | CE, UL508, CSA compliant |
Main Features and Advantages
Modular PLC system expansion:
The primary advantage of Eaton XIOC-BP-XC1 is its ability to provide a flexible expansion platform for Eaton XC-series programmable controllers. By combining the CPU module with XIOC signal modules, engineers can easily create customized automation solutions according to the required number of digital inputs, digital outputs, and analog channels.
Efficient internal communication:
Eaton XIOC-BP-XC1 integrates the internal backplane connection required for communication between the controller and expansion modules. This eliminates unnecessary point-to-point wiring and improves signal reliability, reducing installation complexity in industrial control cabinets.
Compact automation cabinet design:
Space optimization is important in modern industrial equipment. The compact structure of Eaton XIOC-BP-XC1 allows PLC systems to be installed in smaller control cabinets while maintaining expansion capability. The modular arrangement improves cabinet layout and simplifies future system upgrades.

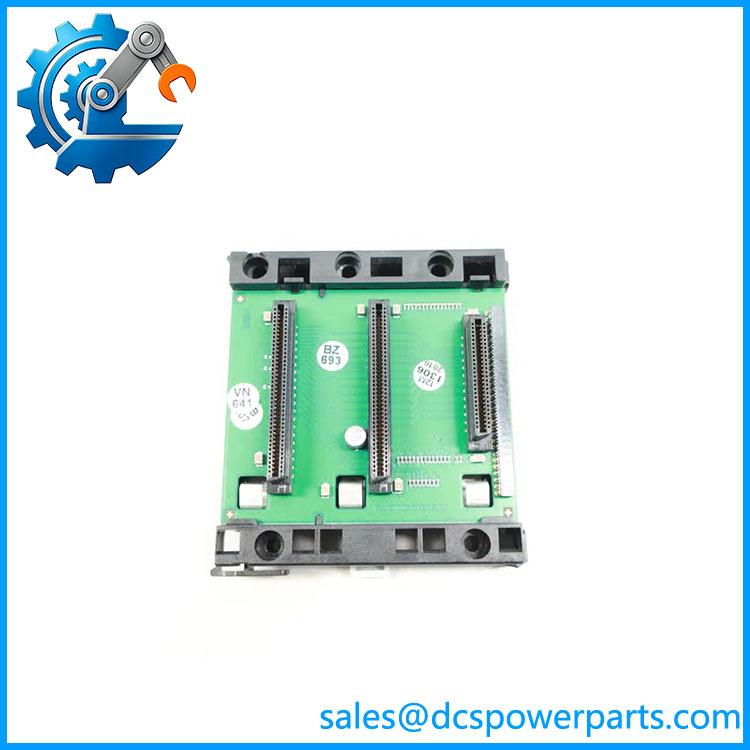

XIOC-BP-XC1
Easy installation and replacement:
The DIN rail mounting design of Eaton XIOC-BP-XC1 enables quick installation and convenient maintenance. Technicians can assemble or replace PLC modules efficiently without extensive rewiring, reducing machine downtime during service operations.
High compatibility with Eaton automation products:
Designed specifically for Eaton XC controllers and XIOC modules, Eaton XIOC-BP-XC1 provides reliable mechanical and electrical compatibility with the Eaton automation ecosystem. It can be combined with various digital and analog I/O modules to support different industrial applications.
Improved system scalability:
Automation projects often require additional I/O points during expansion phases. With Eaton XIOC-BP-XC1, users can easily add compatible XIOC modules to increase system capability without replacing the complete controller platform.
Reliable industrial construction:
Eaton XIOC-BP-XC1 is manufactured for industrial environments and provides stable operation under standard automation conditions. The robust housing design and reliable backplane connection ensure long-term performance in production equipment and control installations.
Reduced engineering complexity:
By providing a standardized mounting and communication base, Eaton XIOC-BP-XC1 simplifies PLC system design, commissioning, and maintenance. Engineers can create structured automation architectures with predictable installation procedures.
Application Areas
Machine Automation:
Eaton XIOC-BP-XC1 is widely applied in automated machinery where compact PLC control and flexible I/O expansion are required. It supports applications such as packaging machines, assembly equipment, material handling systems, and production automation lines.
Factory Control Systems:
In manufacturing facilities, Eaton XIOC-BP-XC1 provides the hardware foundation for PLC-based control systems. It allows XC controllers to connect with additional I/O modules for monitoring sensors, controlling actuators, and managing production processes.
Process Monitoring Applications:
Industrial processes often require multiple signal channels for temperature, pressure, flow, and equipment status monitoring. Eaton XIOC-BP-XC1 enables expansion of PLC systems with compatible analog and digital modules for process automation tasks.
Building and Infrastructure Automation:
The modular design of Eaton XIOC-BP-XC1 makes it suitable for building automation, energy management systems, and infrastructure control applications where reliable distributed signal processing is needed.
Packaging and Material Handling Equipment:
Packaging lines and logistics systems require fast and reliable controller expansion. Eaton XIOC-BP-XC1 supports scalable PLC configurations for conveyor systems, sorting equipment, and automated handling machines.
Industrial Retrofit Projects:
For existing Eaton XC-series installations, Eaton XIOC-BP-XC1 provides a practical replacement and expansion component. It allows users to maintain existing automation platforms while increasing system capability or replacing aging hardware.
