Description
Product Overview

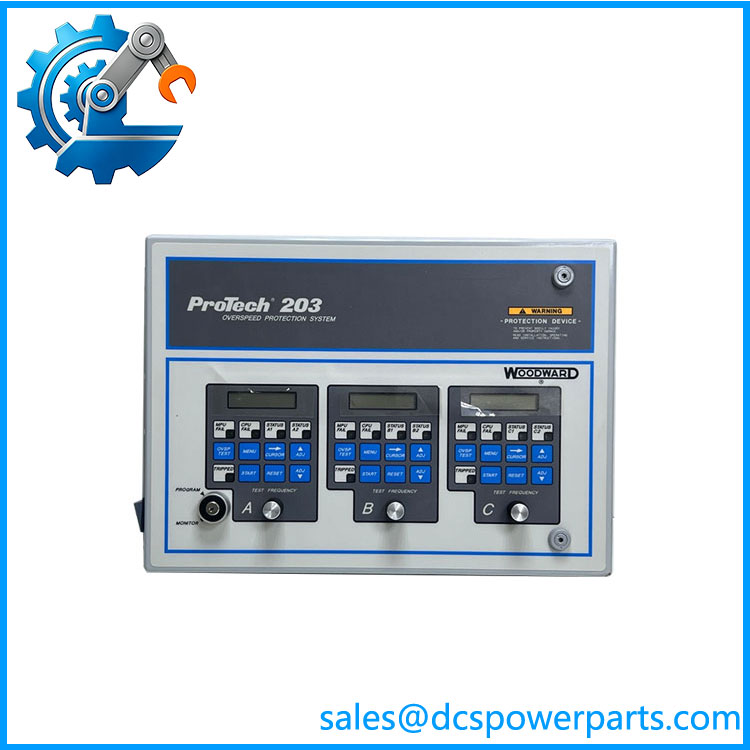

The Woodward 9907-147 is a ProTech 203 overspeed protection system designed to provide independent shutdown protection for high-speed rotating equipment such as turbines, compressors, and industrial prime movers. Unlike a conventional speed controller, this unit is dedicated to safety monitoring and trip functions, detecting excessive rotational speed and initiating a protective action before mechanical limits are exceeded. The Woodward 9907-147 uses three independent speed-sensing channels with two-out-of-three voting logic to reduce the possibility of an unwanted trip caused by a single channel fault.
The Woodward 9907-147 belongs to the ProTech 203 family of overspeed protection equipment used in power generation and process industries. Each sensing channel operates independently and monitors magnetic pickup signals from the rotating equipment. The system provides separate displays and adjustment interfaces for the individual protection channels, allowing technicians to review operating status, trip settings, and diagnostic information during commissioning and maintenance activities.
The Woodward 9907-147 operates from a 24VDC control power source and uses a de-energize-to-trip safety philosophy. Under normal conditions, the trip relay remains energized; loss of power or detection of a valid overspeed condition causes the protective circuit to initiate shutdown action. The module supports speed measurement frequencies from approximately 100 Hz to 32 kHz, with trip settings configured according to the protected machine requirements.
For engineers maintaining installed turbine protection systems, replacement requires careful verification. To be completely transparent, an overspeed protection device should not be selected only by matching the part number. The machine speed range, trip settings, wiring arrangement, relay configuration, and site safety procedures must be reviewed before returning equipment to service.
The practical role of the Woodward 9907-147 is preserving an established independent protection layer for critical rotating machinery. Proper functional testing, including simulated overspeed verification where applicable, should be completed before operational release.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | Woodward 9907-147 |
| Manufacturer | Woodward |
| Product Type | Overspeed Protection System |
| Series | ProTech 203 |
| Safety Function | Independent overspeed detection and trip initiation |
| Power Supply | 24VDC |
| Input Voltage Range | 18–32VDC |
| Power Consumption | Approx. 5.12W |
| Protection Logic | Two-out-of-three voting |
| Speed Sensor Inputs | Three independent magnetic pickup channels |
| Speed Frequency Range | 100 Hz to 32 kHz |
| Trip Point Range | 250 Hz to 25 kHz |
| Trip Response | High-speed protective shutdown response |
| Accuracy | ±(0.05% × Trip Point in Hz + 2 Hz) |
| Display | Three LCD displays, two lines × 16 characters |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -55°C to +105°C |
| Mounting | Panel/rack installation |
| Enclosure Style | Industrial control cabinet mounting |
| Safety Mode | De-energize-to-trip |
9907-147
Related Products
- Woodward 9907-146 — ProTech 203 overspeed protection variant with 24VDC power input. Similar application range, with differences based on system configuration and hardware options.
- Woodward 9907-148 — ProTech 203 model designed for 120VAC/DC supply applications. Used where the protection cabinet power architecture differs from 24VDC systems.
- Woodward 9907-149 — Higher-voltage ProTech 203 version supporting 120VAC/DC supply requirements. Applicable to different plant electrical arrangements.
- Woodward 9907-150 — ProTech 203 220VAC configuration. Used in protection systems designed around higher AC supply voltage.
- Woodward ProTech 203 Series — Complete overspeed protection family providing independent speed monitoring and shutdown functions for rotating equipment.
- Woodward 505 Digital Governor Series — Speed control platform commonly applied with turbine systems. It performs governor functions rather than dedicated overspeed protection.
- Woodward 723 Digital Control Series — Engine and generator control products used for speed/load management applications. Different from the ProTech safety protection role.
Frequently Asked Questions (FAQ)
1. What is the Woodward 9907-147 used for?
The Woodward 9907-147 is a ProTech 203 overspeed protection system used to monitor turbine or prime mover speed and initiate shutdown when an overspeed condition is detected. It is a protection device, not a primary speed governor.
2. Can I hot-swap the Woodward 9907-147?
No. Overspeed protection equipment should normally be replaced under controlled maintenance procedures.
Recommended steps:
- Remove the protected machine from operation.
- Isolate control power.
- Record existing trip settings and wiring.
- Replace the unit.
- Perform functional trip testing before operation.
3. Does the Woodward 9907-147 support firmware v3.1?
The 9907-147 is a dedicated protection controller rather than a standard PLC CPU.
Compatibility depends on:
- ProTech 203 system version
- Configuration settings
- Speed input arrangement
- Existing safety system design
Firmware alone does not determine interchangeability.
4. Will replacing the Woodward 9907-147 erase my turbine control logic?
No. The ProTech 203 unit does not contain the main turbine control application logic.
After replacement, technicians should verify:
- Overspeed setpoints
- Relay operation
- Speed pickup signals
- Trip circuit response
5. How can I verify a New Surplus Woodward 9907-147?
Recommended inspection steps:
- Confirm Woodward model number.
- Verify 24VDC configuration.
- Check front display and keypad condition.
- Inspect connectors and enclosure.
- Confirm stored configuration before installation.
6. What equipment uses the Woodward 9907-147?
The unit is used with high-speed rotating machinery including turbines, compressors, and generator prime movers where independent overspeed protection is required.
7. Is the Woodward 9907-147 suitable for turbine modernization projects?
It is mainly used for maintaining existing ProTech 203 protection installations. For modernization work, engineers should evaluate the complete safety architecture, shutdown philosophy, sensor arrangement, and applicable protection requirements before selecting replacement equipment.
