Description
Product Overview
Woodward 3522-1009 is a BUM60 series digital servo controller designed for high-performance industrial motion control and actuator regulation applications. The complete configuration BUM60-1224-54-B-000-VC-A0-0093-0003-G003 represents a customized Woodward servo drive assembly optimized for precise control of proportional hydraulic actuators, electric actuators, and turbine control mechanisms. The unit combines advanced vector control technology, high-speed processing capability, and closed-loop regulation functions to achieve accurate position, speed, and torque management in demanding industrial environments.
Woodward 3522-1009 is primarily used in turbine control and energy management systems where fast response, high reliability, and accurate actuator positioning are required. The BUM60 platform provides intelligent servo control functions that allow direct integration with industrial control systems such as turbine governors, PLC systems, and distributed control systems. The vector control (VC) technology incorporated in 3522-1009 enables dynamic motor control performance, improving stability during rapid load changes and transient operating conditions.
Woodward 3522-1009 provides a robust solution for applications requiring continuous-duty operation and precise mechanical control. With a rated voltage range suitable for industrial three-phase power systems, integrated protection functions, and flexible communication/configuration options, this servo controller is widely applied in gas turbines, steam turbines, compressors, industrial machinery, and energy conversion equipment where operational availability is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3522-1009 |
| Manufacturer | Woodward |
| Product Type | Digital Servo Controller / Servo Drive |
| Series | BUM60 |
| Complete Configuration | BUM60-1224-54-B-000-VC-A0-0093-0003-G003 |
| Control Technology | Vector Control (VC) |
| Application | Industrial actuator and motion control |
| Input Voltage | 400–480 VAC |
| Rated Current | 12 A |
| Maximum Current | 24 A |
| Motor Control Type | Servo motor / actuator control |
| Cooling Method | Forced air cooling / heatsink cooling |
| Control Interface | Analog and digital control interfaces |
| Communication Capability | Industrial automation interface capability |
| Mounting Type | Cabinet installation |
| Protection Functions | Overcurrent, overload, thermal protection |
| Typical Applications | Turbine, compressor, industrial drive systems |
| Approximate Dimensions | 310 × 70 × 240 mm |
| Approximate Weight | 4.8 kg |

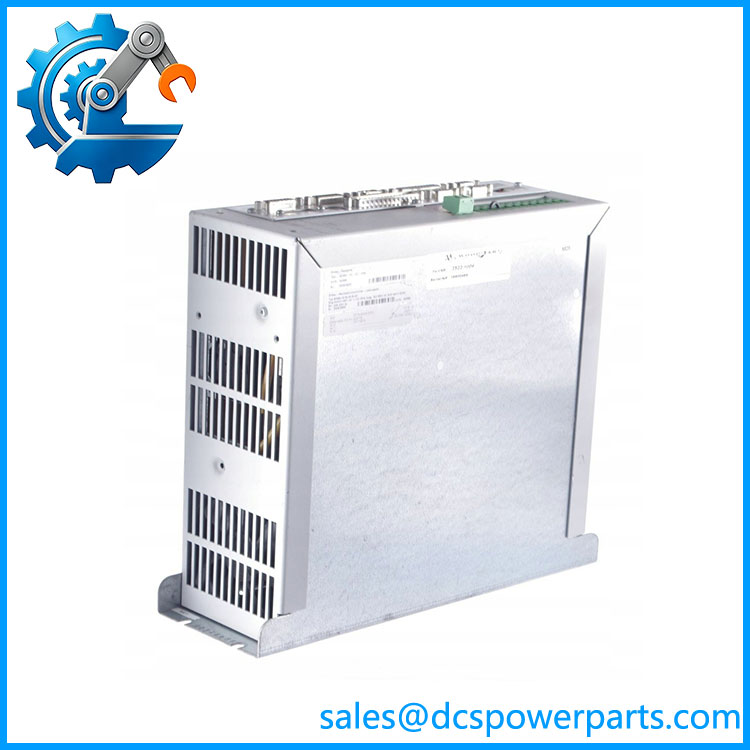

3522-1009
Main Features and Advantages
Woodward 3522-1009 is designed to deliver precise and reliable actuator control in industrial systems where mechanical positioning accuracy directly affects equipment performance. The BUM60 platform combines servo drive technology with advanced control algorithms, allowing operators and control systems to achieve smooth movement, rapid response, and stable operation under changing load conditions.
One of the key advantages of Woodward 3522-1009 is its vector control technology. The integrated VC control algorithm provides accurate regulation of motor torque and speed by independently managing motor current components. This enables improved dynamic response compared with conventional open-loop drive solutions and makes 3522-1009 suitable for applications requiring fast actuator reaction and high positioning accuracy.
The high-performance design of 3522-1009 allows it to operate reliably in turbine and industrial automation environments. The controller provides precise control signals for servo mechanisms used in fuel valves, steam valves, hydraulic actuators, and other critical regulating equipment. This capability is particularly important in turbine control systems where small actuator deviations can affect efficiency, stability, and equipment protection.
Woodward 3522-1009 incorporates protection and monitoring functions to improve system reliability. The controller continuously supervises operating parameters such as current load, temperature conditions, and drive status, helping prevent damage caused by abnormal operating conditions. These diagnostic capabilities simplify troubleshooting and reduce maintenance downtime.
Another important advantage of 3522-1009 is its compatibility with industrial control architectures. The servo controller can be integrated with turbine control systems, PLC platforms, and distributed automation systems, allowing centralized monitoring and coordinated operation.
The modular BUM60 design provides flexibility for different machine configurations. Engineers can select different control options and parameter settings to match specific actuator requirements, making the controller suitable for customized industrial installations.
Woodward 3522-1009 is especially valuable in critical rotating equipment applications because it combines precise control performance with industrial-grade reliability. Its ability to provide stable actuator regulation helps improve turbine efficiency, reduce mechanical stress, and maintain safe equipment operation.
Applications
Woodward 3522-1009 is widely used in industrial applications requiring high-precision servo control and reliable actuator operation. In power generation facilities, 3522-1009 is commonly applied in turbine control systems to regulate fuel valves, steam valves, and other critical mechanical control elements.
In gas turbine and steam turbine installations, Woodward 3522-1009 provides accurate actuator positioning during startup, normal operation, load adjustment, and emergency response conditions. The fast response characteristics of the BUM60 platform help maintain turbine stability during rapid operating changes.
Oil and gas facilities use 3522-1009 in compressor drive systems, turbine-driven equipment, and process machinery where precise mechanical control is essential. Reliable servo operation helps maintain process efficiency and protects expensive rotating equipment.
Petrochemical plants apply Woodward 3522-1009 in turbine packages, hydraulic actuator systems, and industrial automation equipment requiring continuous operation. The controller supports integration with existing control systems and provides dependable motion regulation.
Industrial machinery manufacturers also utilize 3522-1009 for advanced motion control applications including precision equipment, automated production systems, and specialized industrial machines.
Typical application areas include:
- Gas turbine control systems
- Steam turbine regulation
- Turbine actuator control
- Compressor control systems
- Power generation equipment
- Industrial servo applications
- Energy management systems
- Process automation equipment
- High-performance motion control systems
