Description
The Watlow Anafaze CLS208 is an 8-loop microprocessor-based temperature controller designed for applications requiring multiple independent heating or cooling control zones. It integrates sensor input processing, PID control algorithms, alarm handling, and serial communication functions into a compact industrial controller platform.
The Watlow Anafaze CLS208 supports various temperature sensor inputs including thermocouples and RTD devices, allowing engineers to configure the controller for different thermal process requirements. Communication capability through RS-232 or RS-485 allows integration with supervisory systems, PLCs, and industrial computers.
The Watlow Anafaze CLS208 is commonly found in legacy thermal processing equipment where stable multi-zone temperature regulation is required. Typical applications include semiconductor equipment, ovens, furnaces, plastic processing machinery, and laboratory thermal systems.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CLS208 |
| Manufacturer | Watlow Anafaze |
| Product Series | CLS200 |
| Product Type | 8-Loop Temperature Controller |
| Control Loops | 8 independent PID loops |
| Input Types | Thermocouple, RTD, voltage/current signals (configuration dependent) |
| Control Algorithm | PID with auto-tuning capability |
| Input Resolution | Greater than 14-bit internal measurement resolution |
| Sampling Rate | Approx. 3 samples/second per channel |
| Control Outputs | Time proportioning, distributed zero crossing, analog output options (configuration dependent) |
| Communication Interface | RS-232 / RS-485 |
| Communication Protocol | Modbus RTU and compatible serial protocols |
| Power Supply | 15–24 VDC |
| Display Interface | Front panel LED/status display |
| Mounting | Panel mount, 1/8 DIN style |
| Alarm Functions | Process alarms, deviation alarms, watchdog alarm |
| Operating Temperature | 0°C to 50°C typical |
| Application | Thermal process control, heating systems, multi-zone temperature regulation |
Product Introduction

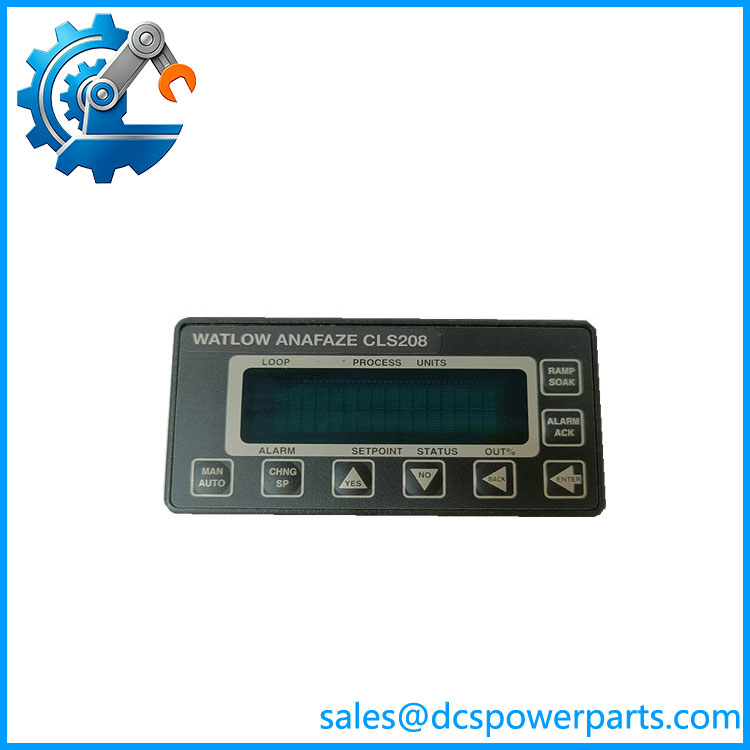

Watlow Anafaze CLS208 Product Introduction
Watlow Anafaze CLS208 is a multi-loop temperature controller designed for industrial thermal process applications where several temperature zones must be controlled independently from a single control platform. The controller combines sensor input acquisition, PID calculations, output management, and communication functions into one compact unit.
The Watlow Anafaze belongs to the CLS200 controller family and is designed around flexible configuration options. Each control loop can operate independently with its own process variable, setpoint, tuning parameters, alarm limits, and output behavior. This architecture allows engineers to control complex heating systems without installing multiple individual controllers.
The Watlow Anafaze receives temperature feedback from field sensors such as thermocouples and RTDs, processes the measured values through internal control algorithms, and adjusts connected heating or cooling devices according to programmed parameters. Its serial communication interfaces allow connection to plant monitoring systems or external controllers.
For replacement projects, engineers should verify the exact hardware configuration, installed output modules, communication settings, and stored process parameters. Different CLS200 configurations may appear similar but may have different I/O arrangements.
CLS208
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A thermal processing machine begins showing temperature instability across several zones. Individual heaters and sensors test correctly, but the process temperature still fluctuates.
In multi-zone systems, the controller is responsible for coordinating multiple feedback loops. Incorrect tuning parameters, sensor configuration, or output hardware selection can create process problems that appear to be mechanical or heater-related faults.
Typical Applications
Semiconductor Processing Equipment
Used for:
- Wafer heating systems
- Chamber temperature control
- Thermal processing equipment
- Precision heating platforms
Plastic Processing Machinery
Applied for:
- Extrusion barrel heating
- Injection molding temperature zones
- Hot runner systems
Industrial Ovens and Furnaces
Used for:
- Multi-zone temperature regulation
- Heat treatment processes
- Drying equipment
Laboratory and Test Equipment
Applied for:
- Environmental chambers
- Research heating systems
- Thermal cycling equipment
Technical Pitfalls to Avoid
1. Confirm Input Sensor Configuration
Before replacement, verify:
- Thermocouple type
- RTD resistance type
- Input scaling
- Sensor wiring method
Incorrect sensor selection can create inaccurate temperature readings.
2. Verify Output Hardware
units may be configured with different output options.
Check:
- Solid-state relay outputs
- Analog output modules
- Control output assignments
- Heater drive method
3. Preserve PID Parameters
Replacing the controller without saving tuning data may affect process performance.
Record:
- Proportional settings
- Integral settings
- Derivative settings
- Alarm parameters
- Ramp/soak profiles
4. Check Communication Settings
Verify:
- RS-232/RS-485 wiring
- Baud rate
- Protocol selection
- Address settings
Communication problems are frequently caused by parameter mismatch rather than controller failure.
