Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Vibro-Meter / Meggitt |
| Product Family | VM600 |
| Part Number | 204-040-100-012 |
| Rack Type | ABE040 |
| Rack Height | 6U |
| Rack Standard | 19-inch |
| Backplane | Included |
| Primary Function | VM600 system module mounting and interconnection |
| System Application | Machinery Protection System (MPS) / Condition Monitoring System (CMS) |
| Compatible Module Families | MPC4, AMC8, XMV16/XMC16 and associated I/O cards, depending on system configuration |
| Power Supply | VM600 RPS6U family |
| Mounting | Standard 19-inch equipment cabinet |
| Rack Capacity | Up to 12 monitoring card pairs in typical ABE04x configurations |
| Related Rack | ABE042, part number 204-042-100-012 |
| Architecture | VM600 rack-based monitoring system |
Vibro-Meter documentation describes the ABE040 and ABE042 as 6U VM600 system racks. The ABE040 is the standard version, while the ABE042 uses a different mounting-bracket arrangement.
Product Introduction
Vibro-Meter VM600 204-040-100-012 Product Introduction

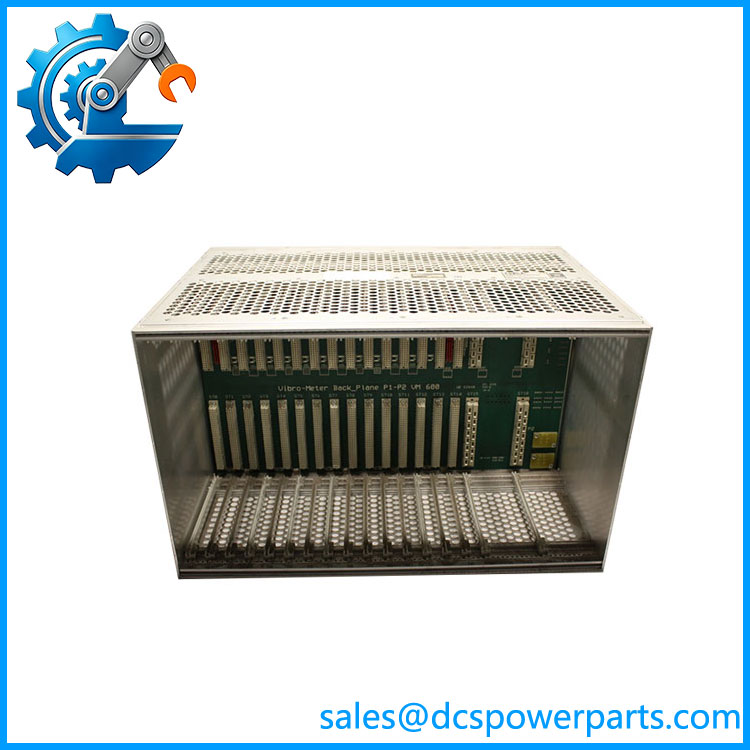

The Vibro-Meter 204-040-100-012 is the ABE040 standard 19-inch, 6U system rack with backplane. It forms the mechanical and electrical foundation of a rack-based machinery protection or condition monitoring system, providing the slots and backplane connections for monitoring cards, I/O cards, controllers, and power supplies.
This is not a signal-processing card. It is infrastructure. A damaged backplane, connector, or rack assembly can make otherwise serviceable electronics unusable. For a brownfield turbine or compressor monitoring system, replacing the correct rack assembly can be preferable to modifying the existing card architecture.
204-040-100-012
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A rack problem often shows up as a card problem. A monitoring card may pass bench testing but fail intermittently once installed because of a damaged backplane connector, mechanical distortion, poor grounding, or an aging rack assembly. On turbine and compressor protection systems, that distinction matters. The rack is part of the signal path and power distribution architecture, not just a metal enclosure.
Typical Applications
- Power Generation — 19-inch racks for turbine bearing vibration, shaft vibration, speed, and machinery protection systems.
- Oil & Gas — Compressor and turbine monitoring using MPC4 machinery protection cards and associated I/O assemblies.
- Petrochemical — Continuous monitoring of critical rotating equipment where vibration alarms and trips must remain available.
- Industrial Machinery — Centralized condition monitoring for pumps, fans, motors, generators, and other rotating assets.
rack systems are designed for applications ranging from turbines and generators to compressors, pumps, fans, motors, and other rotating machinery.
Technical Pitfalls to Avoid
- Do not confuse 204-040-100-012 with 204-042-100-012.
Both are 6U racks, but the ABE040 and ABE042 differ in mounting-bracket position. The distinction can matter when replacing an installed rack in a fixed cabinet. - Inspect the backplane, not just the rack chassis.
The 204-040-100-012 includes the backplane. Bent or oxidized card connectors can produce intermittent faults that look like defective MPC4, IOC4T, or power-supply modules. - Confirm the complete card architecture.
The rack supports multiple card families, but the actual system configuration determines which card pairs, controller cards, relay cards, and power supplies are appropriate. Do not assume every card can be installed in every slot configuration. - Check the power-supply arrangement before commissioning.
ABE04x racks use dedicated RPS6U power-supply hardware. The supply voltage variant must match the plant’s incoming power and the specified rack configuration.
Related Products
- 204-042-100-012 — ABE042 6U Rack
Closely related to the ABE040, but with a different mounting-bracket arrangement. It is the obvious alternative when cabinet mounting geometry requires the ABE042 version. - 200-510-071-113 — MPC4 Machinery Protection Card
The front-end machinery protection processor commonly associated with protection systems. It works with the corresponding IOC4T I/O card installed at the rear of the rack. - 200-560-000-111 — IOC4T Input/Output Card
Rear-mounted I/O card for MPC4-based machinery protection. It provides the field-side interface associated with the MPC4 card pair. - 200-582-500-013 — RPS6U Power Supply, 110/230 VAC
rack power supply option for AC input applications. The exact supply variant must be matched to the plant power system. - 200-582-200-013 — RPS6U Power Supply, 24 VDC
DC-powered RPS6U variant for installations using a 24 VDC control-system supply. Not interchangeable with AC versions without confirming the rack power architecture. - 200-570-000-111 — RLC16 Relay Card
Additional relay hardware for systems where the four relay outputs available through certain monitoring card pairs are insufficient. - 200-566-000-112 — IOCN Communication Interface Card
Rear interface card used with CPUM-based rack controller configurations. It supports the communication side of the rack rather than direct vibration measurement. - 200-595 Series CPUM — Rack Controller
rack controller hardware used for configuration management, Ethernet communication, event logging, and other rack-level functions. The exact ordering code determines firmware and hardware configuration. - 200-565-000-013 — IOC16T
I/O card associated with XMV16/XMC16 monitoring architectures. It is applicable when the rack is being used for broader condition-monitoring functions rather than only machinery protection.
