Description
The part number USC329AE01 3BHB002483R0001 refers to an industrial automation component manufactured by ABB.
Key Overview & Specifications
-
Product Type: Control / Interface Panel (or Control Module)
-
Series: ABB Advant OCS / 800xA or related high-end industrial control platforms
-
Function: Operates as a critical interface and communication node designed to streamline data transmission, system monitoring, and machine-to-machine control.
-
Power Supply: Typically engineered for 24 VDC industrial control architectures.
Core Features & Applications
-
System Integration: Seamlessly integrates into complex distributed control systems (DCS) to manage real-time data processing and field communication.
-
Diagnostics: Features internal self-diagnosis and error-detection capabilities to report operational status and streamline troubleshooting.
-
Common Industries: Widely deployed in heavy process automation, power generation and distribution plants, manufacturing systems, and variable frequency drive (VFD) or large drive coordination setups.
USC329AE01
Product Overview

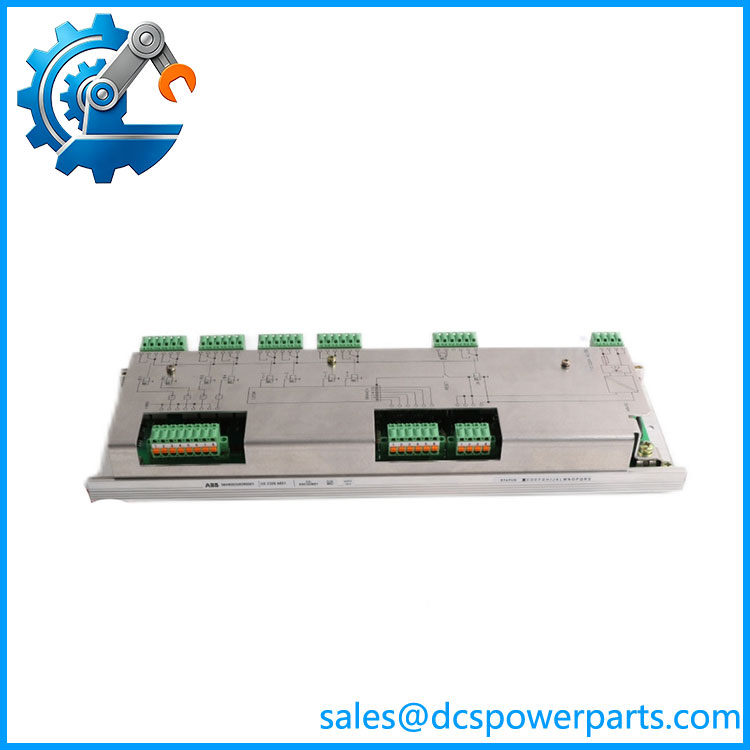

USC329AE01 (Order code: 3BHB002483R0001) is a Unit Supervisory Control Module (USC) manufactured by ABB, belonging to the UNITROL excitation control system platform for synchronous generators.
It is the core local control board inside ABB Unitrol series static excitation cabinets. It collects generator voltage, current, rotor temperature and auxiliary status signals, executes voltage regulation logic, limit functions, protection algorithms and sequence control. It serves as the communication gateway between the excitation unit and plant DCS, and cooperates with power bridge trigger boards to realize automatic excitation regulation of generators for thermal power, hydropower and gas turbine units.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | USC329AE01 (3BHB002483R0001) |
| Module Type | Excitation Unit Supervisory Control Board |
| Manufacturer | ABB |
| Applicable Platform | ABB Unitrol Static Excitation System |
| Power Supply | 24 VDC control power |
| Core Functions | Generator voltage closed-loop regulation, V/Hz limiting, overexcitation/underexcitation limiting, excitation protection logic, signal acquisition, fault recording |
| Communication Interfaces | RS485, optical fiber interface for DCS communication |
| Supported Protocols | Modbus RTU, IEC 60870, ABB internal excitation bus protocol |
| Analog Channels | Multiple AI for transformer/PT/CT measurement signals |
| Digital I/O | Configurable DI/DO for trip interlock, alarm output |
| Mounting Form | Plug-in board inside excitation cabinet rack |
| Operating Temperature | -20 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet installation) |
| Front Panel | LED status indicators for power, run, fault, communication |
| Engineering Tool | ABB Excitation configuration software |
| Spare Part Status | OEM production discontinued; surplus new & refurbished spare boards available |
Key Features
- Dedicated main control board for Unitrol excitation system, completes automatic voltage regulation (AVR) and all auxiliary limit & protection functions
- High-precision sampling of generator terminal voltage and current to maintain stable reactive power output
- Built-in comprehensive protection logic: over excitation, under excitation, V/Hz restraint, loss of field monitoring
- Supports high-precision event time stamping for excitation trip fault analysis
- Optical communication option improves anti-interference capability between excitation cabinet and DCS
- Records fault codes and operating trend data for on-site troubleshooting
- Standard mechanical dimensions, matches Unitrol cabinet backplane and termination hardware
- Strict full part number verification required; different suffix variants cannot be directly interchanged without firmware download and parameter commissioning
- Critical spare electronic board for maintenance of generator excitation control cabinets
Application Scope
Note: Many trading platforms incorrectly classify it as general DCS module; USC329AE01 is exclusive for generator static excitation systems, not universal AC800M / 800xA DCS hardware.
