UniOP EK-45 6ZA957-7
Product Introduction
Older machine-control systems often have a surprisingly difficult failure point: the HMI. The PLC may still be perfectly serviceable, while a failed operator panel leaves technicians without the established interface for alarms, commands, recipes, or diagnostics. The UniOP EK-45 6ZA957-7 is an industrial operator panel from the UniOP EK family, intended to provide the machine-level interface between operators and the underlying automation controller. Available equipment records identify the unit as a 24 VDC control panel.
For a legacy PLC installation, the value of an exact EK-45 replacement is mainly interface continuity. Replacing it with a modern HMI may require rebuilding screens, communication drivers, PLC tags, recipes, and operator workflows. The practical procurement issue is that old UniOP units can exist with different hardware and firmware revisions; one documented EK-45 6ZA957-7 unit is marked HW 33A and FW32 4.40. That information should be compared with the installed panel before approving a replacement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | EK-45 |
| Full Part Number | 6ZA957-7 |
| Manufacturer / Brand | UniOP |
| Product Type | Industrial HMI / operator panel |
| Series | EK Series |
| Primary Function | Machine/operator interface |
| Power Supply | 24 VDC |
| Hardware Version | 33A reported on documented unit |
| Software Version | FW32 4.40 reported on documented unit |
| Application | PLC and industrial machine control |
| Installation | Panel-mounted operator interface |
| Lifecycle | Legacy / availability dependent |
| Exact Display Specification | Verify against installed unit |
| Exact Communications Interfaces | Verify from nameplate/manual and existing panel |
| Exact Memory Capacity | Verify by hardware revision |
Procurement note: Publicly indexed information for this legacy model is limited. I would not invent display resolution, screen size, communication ports, memory capacity, or environmental ratings without the exact EK-45 technical manual or nameplate. The confirmed identification is the EK-45 / 6ZA957-7 operator panel and 24 VDC supply information.
Application Scenarios & Pain Points
A failed legacy HMI can stop production even when the PLC, drives, and I/O are healthy. The issue is often not the panel hardware alone—the original application may depend on a specific firmware environment and communication configuration.
- PLC operator interface: Provides the local interface for machine commands, status information, alarms, and process values.
- Legacy machine controls: Useful where an established UniOP HMI application still communicates with an older PLC architecture.
- Production equipment refurbishment: An exact replacement can reduce the engineering work associated with migrating an existing HMI application.
- Maintenance spare strategy: Suitable as a lifecycle spare when the installed machine still depends on the EK-45 platform.
Field note: Before removing a working panel, back up the application if the engineering environment permits it and photograph every connector and configuration label. With equipment of this age, the firmware version can be as important as the model number.

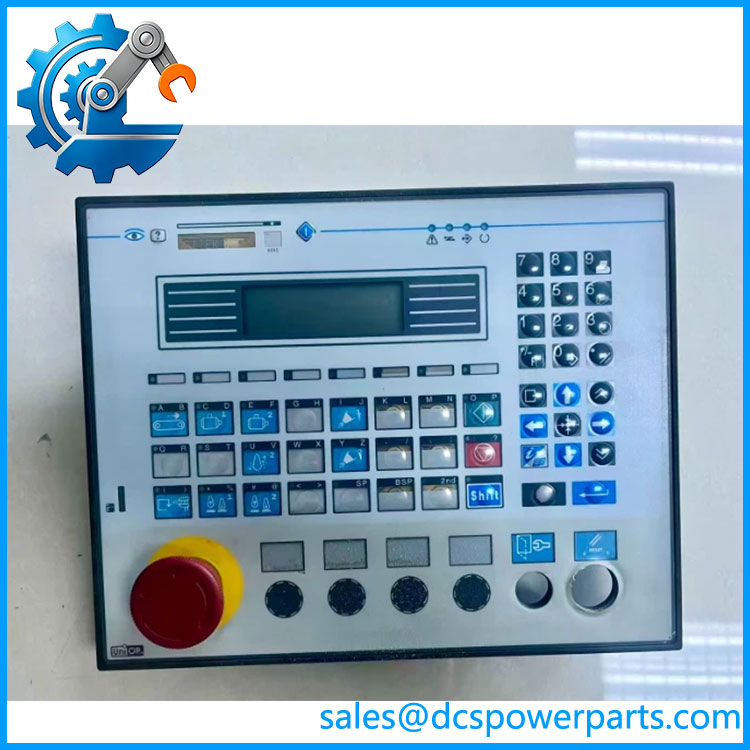

UNIOP EK-45 6ZA957-7
Related Products
- UniOP EK-42 6ZA987-3 — Related EK-series operator panel; not automatically interchangeable with EK-45.
- UniOP EK-51 6ZA962-7 — Another EK-series operator panel with a different hardware configuration.
- UniOP EK-52 6ZA963-7 — Related operator-panel model in the same legacy UniOP family.
- UniOP EK-41 6ZA925-7 — Earlier EK-series operator panel.
- UniOP EK-44 6ZA992-7 — Related EK-series HMI model.
- UniOP EK-16N 6ZA990-7 — Different UniOP operator/monitor configuration.
- UniOP eTOP05 — Later UniOP HMI family; migration requires application and communications review.
- UniOP eTOP series — Newer-generation HMI platform that may be considered during a broader modernization project rather than as a drop-in replacement.
The EK family includes numerous model-specific part numbers, and the catalog references confirm that EK-45 6ZA957-7 is distinct from EK-42, EK-51, EK-52, and other panels.
Engineer’s Guide — Field Pitfalls to Avoid
Pitfall 1: Matching only “EK-45”
EK-45 is the model designation, while 6ZA957-7 identifies the specific catalog/part configuration.
Avoidance: Specify the complete EK-45 6ZA957-7 number when sourcing a replacement.
Pitfall 2: Ignoring firmware
A replacement panel can power up correctly and still fail to communicate with the PLC if its firmware or application environment differs from the installed unit.
Avoidance: Record the existing firmware before replacement. A documented EK-45 6ZA957-7 unit has been identified with FW32 4.40, showing why revision information matters.
Pitfall 3: Assuming another EK-series panel is a drop-in replacement
The EK-42, EK-44, EK-51, and EK-52 belong to the same general family but have different model numbers and potentially different hardware arrangements.
Avoidance: Compare mounting dimensions, display characteristics, connectors, power wiring, communication ports, and application compatibility before substitution.
Pitfall 4: Forgetting the HMI application
The hardware is only half of the replacement problem. The actual operator screens, PLC address mapping, alarm configuration, and recipes may reside in the panel’s application environment.
Avoidance: Treat the HMI application backup as part of the spare-parts strategy.
Pitfall 5: Assuming a used panel is equivalent to unused inventory
The EK-45 is a legacy product, and available units may have different histories and hardware/firmware revisions.
Avoidance: Request actual nameplate photographs, hardware revision, firmware version, display condition, connector condition, and functional test information before procurement.
FAQ
What is the UniOP EK-45 6ZA957-7?
The UniOP EK-45 6ZA957-7 is an industrial operator panel / HMI used as a local interface for automation and machine-control systems. It is part of the UniOP EK series.
What power supply does the EK-45 use?
An identified EK-45 6ZA957-7 unit is specified as 24 VDC. The exact acceptable voltage range should be checked against the unit’s technical documentation before energizing a replacement.
Is 6ZA957-7 the same product as EK-45?
Yes. Available catalog records associate EK-45 directly with 6ZA957-7, while other records list the compact designation EK45.
Can I replace an EK-45 with another UniOP EK-series panel?
Not automatically. The model, display hardware, connectors, communication interface, mounting arrangement, firmware, and application compatibility must all be checked. A similar EK-series designation does not establish drop-in compatibility.
What firmware should I look for?
One documented EK-45 6ZA957-7 unit carries FW32 4.40 and hardware version 33A. This should be treated as a reference configuration, not proof that every EK-45 has those revisions. Match the replacement to the installed unit whenever possible.
Is the UniOP EK-45 still a current-production HMI?
The EK-45 is clearly a legacy HMI in current industrial-equipment records, with replacement and repair listings rather than a current-generation product family. Exact manufacturer lifecycle status should be confirmed from historical documentation before making a modernization decision.
What should I verify before purchasing a replacement?
For an EK-45 6ZA957-7, verify the complete part number, hardware revision, firmware version, display condition, 24 VDC input, connectors, communications interface, mounting dimensions, and availability of the original HMI application. If the unit is being purchased as a maintenance spare, request photographs of the actual nameplate rather than relying only on a generic EK-45 listing.
