Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | TVB-1202-1/ANET |
| Part Number | 1381-647980-12 |
| Manufacturer | TEL (Tokyo Electron Limited) |
| Product Type | Control PCB / Interface Board |
| Application | Semiconductor manufacturing equipment |
| Equipment Platform | TEL wafer processing systems |
| Board Function | Equipment control and communication interface |
| Circuit Type | Industrial PCB assembly |
| Communication Interface | TEL proprietary internal interface |
| Installation | TEL equipment control chassis |
| Typical Use | Wafer fabrication equipment maintenance |
| Replacement Category | OEM control board spare |
Application Scenarios & Pain Points
Semiconductor fabs cannot tolerate long troubleshooting cycles. When a control board fails, the visible symptom may be a vague equipment alarm, failed initialization, or interrupted process sequence rather than a clear hardware fault.
Typical applications:
- Wafer Processing Equipment: Used inside TEL semiconductor tools for equipment control, internal communication, and process sequence management.
- Thin Film / Etch Systems: Supports control functions where timing accuracy and communication stability affect chamber operation.
- Semiconductor Manufacturing Lines: Installed as a maintenance spare for aging TEL equipment that remains in active production.
- Equipment Refurbishment Projects: Used when extending the operating life of installed TEL process tools instead of replacing complete systems.
Field note: A fabrication facility experienced repeated equipment startup failures after a long production run. Initial checks showed normal power supply operation, but controller communication faults remained. After replacing the affected TEL board assembly and verifying firmware compatibility, the tool returned to normal processing.

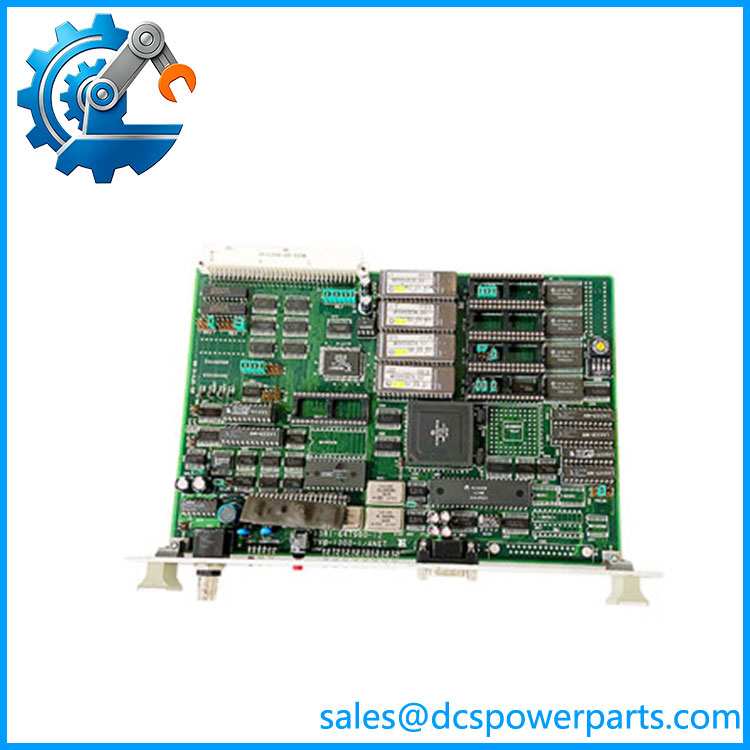

TVB-1202-1/ANET 1381-647980-12
Related Products
- TEL TVB3101-1/ISC 1381-644957-16 — TEL interface board used for different equipment communication functions. Suitable for platforms requiring ISC-related control interfaces.
- TEL TVB6002-1/IMC 1308-644857-12 — Interface/master communication module used in TEL equipment architectures. Applicable where IMC communication functions are required.
- TEL TVB6003-1/EIMC 1381-648241-12 — Ethernet/interface communication board variant used in TEL equipment networking applications.
- TEL VME-U10/B 381-641697-5 — TEL VME-based control module used in legacy equipment architectures.
- TEL MBMY-001A — TEL control system board used in semiconductor equipment support applications.
- TEL TCB Series Control Boards — Related TEL equipment controller assemblies used for chamber and subsystem management.
- TEL MIO Interface Boards — Supporting I/O control boards handling equipment signals and subsystem communication.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Board Revision Mismatch
TEL equipment often uses similar-looking PCB assemblies with different firmware or circuit revisions. A physically identical board may not initialize correctly.
How to avoid: Confirm the complete part number, revision marking, and equipment configuration before installation.
⚠️ Connector and Backplane Damage
Semiconductor tool boards use precision connectors. Slight contamination or bent pins can create intermittent communication faults.
How to avoid: Inspect connectors under proper lighting; look for oxidation, debris, or damaged contacts before insertion.
⚠️ Firmware and Equipment Configuration Loss
A replacement PCB may require matching firmware or machine-specific settings.
How to avoid: Save current configuration data and record controller parameters before removing the original board.
Frequently Asked Questions (FAQ)
What is the TEL TVB-1202-1/ANET 1381-647980-12 used for?
The TVB-1202-1/ANET is a TEL semiconductor equipment control board used for internal control and interface functions within TEL manufacturing platforms.
Is the TVB-1202-1/ANET a PLC or DCS module?
No. It is a dedicated semiconductor equipment control PCB, designed for TEL process tools rather than general industrial PLC or DCS systems.
Which TEL equipment can use the TVB-1202-1/ANET?
Compatibility depends on the exact TEL tool model and hardware configuration. Engineers should confirm the installed board number, equipment serial documentation, and firmware requirements before replacement.
What should be checked before replacing this TEL board?
Recommended checks:
- Complete part number
- Board revision
- Existing equipment model
- Firmware compatibility
- Connector condition
- Stored machine configuration
Why does a replacement TEL board fail after installation?
Common causes include:
- Incorrect board revision
- Missing configuration data
- Firmware mismatch
- Connector contact problems
- Equipment-specific parameter differences
Can a refurbished TVB-1202-1/ANET be used in production equipment?
A tested refurbished unit can be suitable when board-level inspection, power verification, interface testing, and equipment compatibility checks are completed before installation.
How should the /ANET be stored?
Store the board in anti-static packaging, avoid humidity exposure, and protect edge connectors from contamination. Before installation, inspect the PCB surface and connector contacts carefully.
