Description

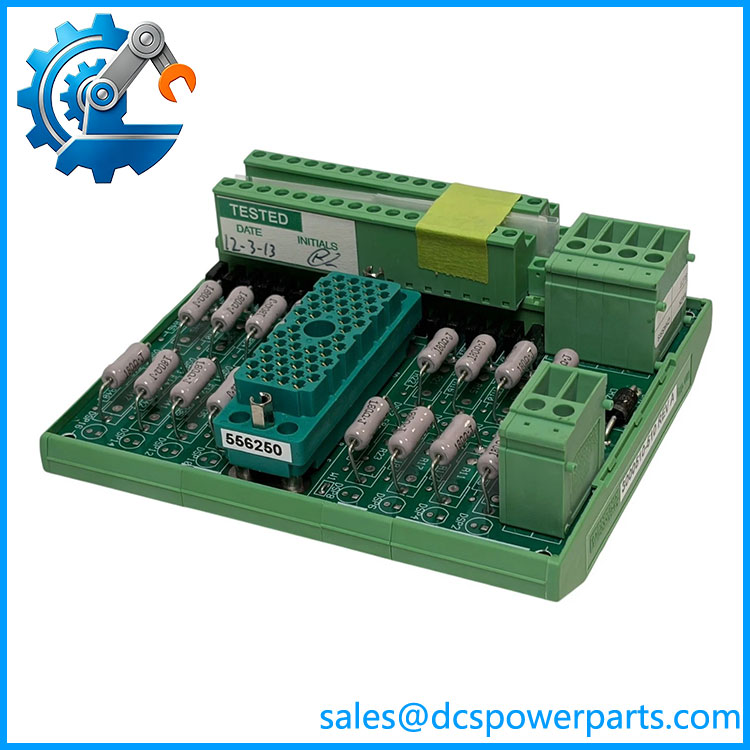

TRICONEX 9761-210 Current Input Termination Panel
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 9761-210 |
| Manufacturer | Triconex |
| Product Family | Tricon v9–v10 |
| Product Type | Current-input termination panel |
| Number of Points | 16 |
| Field Input Type | Current input |
| Typical Transmitter Signal | 4–20 mA |
| Controller-Side Signal | 0–5 VDC |
| Current-to-Voltage Resistor | Precision 250 Ω per input |
| Positive-Terminal Limiting | 180 Ω series resistor |
| Auxiliary Power | Redundant 24 VDC sources |
| Power Redundancy | Diode ORing |
| Compatible AI Modules | 3700, 3700A, 3721 |
| Compatible HART Interface | 2770H |
| Compatible Module Capacity | 32 points per compatible module |
| Panel Coverage | Two 9761-210 panels required for a 32-point compatible AI module |
| System Application | Tricon safety instrumented system |
| Installation | Field termination / system-specific cabinet installation |
The Tricon Field Terminations Guide explicitly defines 9761-210 as a 16-point current-input termination panel. Each panel provides 16 positive power terminals and 16 current-input terminals. The positive side incorporates a 180 Ω current-limiting resistor, while each input has a precision 250 Ω resistor for conversion to the 0–5 VDC signal expected by compatible analog input modules.
Product Introduction
The TRICONEX 9761-210 is a field termination panel used with Tricon safety-system analog input hardware. It provides the field-side interface for current signals and conditions those signals before they reach compatible Tricon analog input modules. The published Tricon documentation specifically lists the 3700, 3700A, 3721, and 2770H as compatible module types.
A critical distinction for maintenance engineers is that 9761-210 is not itself a 32-channel analog input card. It is a 16-point termination panel associated with 32-point compatible modules, meaning two termination panels are required for one 32-point analog input module. That distinction matters when checking cabinet wiring, channel allocation, and replacement quantities.
TRICONEX 9761-210
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The most common identification mistake is treating the 9761-210 as the actual Tricon analog input module. The panel is part of the field termination layer. A technician replacing it must verify the associated Tricon AI module, field transmitter type, wiring arrangement, channel numbering, and resistor configuration. Installing a visually similar termination assembly without checking the associated I/O architecture can result in incorrect signal scaling or channel wiring.
Typical Applications
- 4–20 mA process transmitters connected to Tricon safety-system analog inputs.
- Process pressure, temperature, flow, and level measurements where transmitter outputs are conditioned through the current-input termination arrangement.
- Tricon v9/v10 safety-system cabinets using compatible 3700-series analog input modules.
- HART-enabled analog input installations when used with the documented 2770H interface.
Technical Pitfalls to Avoid
- Do not call 9761-210 an analog input module.
It is a termination panel. The actual analog processing is performed by the compatible Tricon module. - Check the compatible module before wiring.
The documented compatible modules include 3700, 3700A, 3721, and 2770H. - Understand the 16-point / 32-point relationship.
One 9761-210 provides 16 termination points, while the compatible AI modules listed in the guide have 32 points. Two panels are therefore required for a complete 32-point module installation. - Do not bypass the resistor network casually.
The panel’s 250 Ω precision resistors are part of the signal-conditioning arrangement. Changing the field wiring or bypassing the intended conversion can alter the signal presented to the AI module. - Check redundant 24 VDC wiring.
The panel supports redundant 24 VDC sources through diode ORing. Confirm both supply paths and polarity during troubleshooting. - Verify channel labels against the actual cabinet drawing.
The documentation notes that each panel is supplied with two label sets, 1–16 and 17–32, which reflects its use with 32-point modules.
Related Products
- TRICONEX 3700 — 32-point analog input module accepting 0–5 VDC, non-commoned, differential, DC-coupled TMR inputs; documented as compatible with 9761-210.
- TRICONEX 3700A — 32-point 0–5 VDC analog input module with additional input over-range measurement; compatible with 9761-210.
- TRICONEX 3721 — 32-point analog input module configurable for 0–5 VDC or −5 to +5 VDC; compatible with 9761-210.
- TRICONEX 2770H — HART analog input interface module documented for use with the 9761-210 termination panel.
- TRICONEX 9762-210 — related termination-panel designation, but it should not be treated as interchangeable with the 9761-210 without checking the field signal type and system documentation.
- TRICONEX 9761 series — field termination hardware associated with Tricon analog input architectures; exact panel selection depends on the signal type and connected I/O module.
Procurement and Replacement Note
For procurement, identify this component as:
TRICONEX 9761-210 — 16-point current-input termination panel — Tricon v9/v10 field termination hardware.
The important verification points are the associated AI module, field signal type, channel count, cabinet wiring, and termination-panel quantity. For a 32-point 3700/3700A/3721/2770H installation, the Tricon documentation specifies two 9761-210 panels per compatible module.
Do not purchase this part based on descriptions calling it a generic “controller,” “PLC module,” or standalone “current input card.” Those descriptions are inconsistent with the Tricon field-termination documentation. The manufacturer documentation identifies the 9761-210 specifically as a current-input termination panel.
