Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3700A |
| Manufacturer | Triconex / Invensys |
| Product Family | Tricon v9–v11 |
| Product Type | TMR Analog Input Module |
| Architecture | Triple Modular Redundancy (TMR) |
| Input Channels | 32 differential |
| Signal Coupling | DC-coupled |
| Input Voltage | 0–5 VDC |
| 3700A Overrange | 0–5.3 VDC (+6%) |
| Current Input | 0–20 mA using 250 Ω shunt |
| Resolution | 12 bits |
| Update Rate | 55 ms |
| Accuracy | <0.15% FSR, 0–60°C |
| Input Resistance | 30 MΩ DC minimum |
| Common-Mode Range | −12 to +12 V peak |
| Common-Mode Rejection | Typically −80 dB, DC–100 Hz |
| Input Overrange Protection | 150 VDC continuous / 115 VAC continuous |
| Logic Power | <10 W |
| Status Indicators | Pass / Fault / Active |
| Isolation | Non-isolated input points; channel-to-channel isolation specified at approximately 200 kΩ typical |
The 3700A is specifically documented as a TMR analog input module with a 0–5 VDC input range. The 32 inputs are differential and DC-coupled. The 3700A also permits 0–20 mA signals when a 250 Ω shunt resistor is used.
One important distinction is the 3700 versus 3700A. Both belong to the same 32-channel TMR analog-input family, but the 3700A provides the documented +6% overrange measurement capability up to 5.3 VDC.
Product Introduction

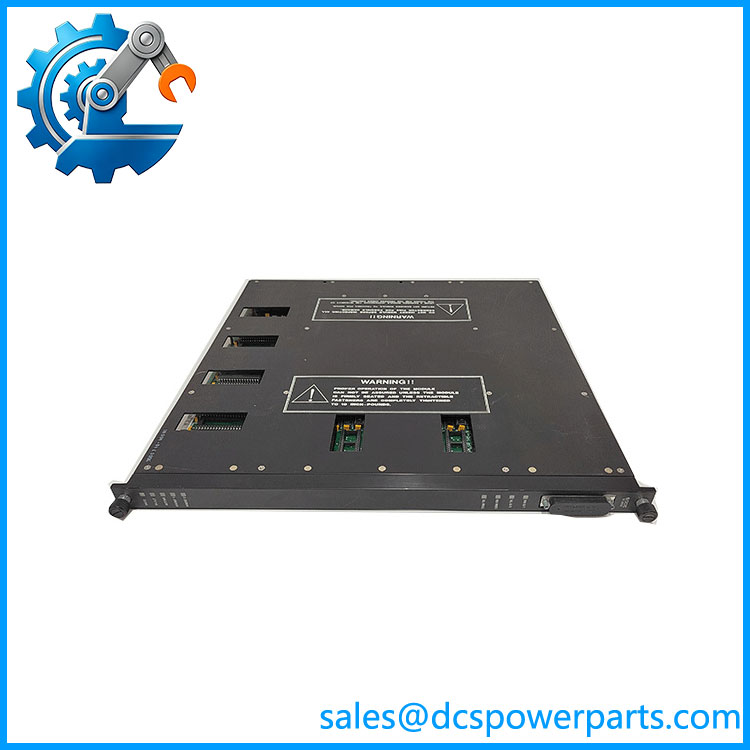

The Triconex 3700A is a 32-channel differential analog input module for Tricon safety-system architectures. It uses Triple Modular Redundancy to acquire process measurements through three redundant signal-processing paths. The module is intended for 0–5 VDC signals and can also accept 0–20 mA signals through the specified 250 Ω shunt arrangement.
For plant maintenance, the 3700A should not be treated as a generic 32-channel analog card. Its TMR architecture, Tricon chassis compatibility, external termination arrangement, configuration, and field wiring are all part of the replacement decision. Tricon documentation identifies the module as mechanically keyed and used with a separate external termination panel and cable interface.
3700A
Application Scenarios & Field Pitfalls
Engineering Pain Point
The main replacement risk is confusing 3700A with other Tricon analog-input models. The 3701, for example, is also a 32-channel TMR differential analog input but uses a 0–10 VDC range, while the 3703E is a 16-channel isolated analog-input module. These are not interchangeable merely because they occupy the same general I/O category.
Typical Applications
- Safety Instrumented Systems — continuous process measurements used by Tricon safety logic.
- Oil and gas facilities — transmitter and process-variable acquisition within legacy Tricon installations.
- Power generation — voltage-derived instrumentation and continuous equipment measurements.
- Chemical and petrochemical plants — differential analog process signals requiring redundant acquisition.
Technical Pitfalls to Avoid
- Do not describe the 3700A as a universal 4–20 mA input module. Its primary specified voltage range is 0–5 VDC; 0–20 mA operation requires the documented 250 Ω shunt arrangement.
- Do not substitute 3701 without checking signal scaling. The 3701 is specified for 0–10 VDC, while 3700A is 0–5 VDC.
- Check common-mode voltage. Tricon documentation warns that exceeding the specified −12 to +12 V peak common-mode range can affect module operation and channel accuracy.
- Verify the external termination hardware and cable. The analog input modules require a separate termination panel and cable interface to the Tricon backplane.
- Do not confuse channel count with isolation. The 3700A provides 32 differential inputs but is not an individually isolated 32-channel module; the 3703E is the relevant isolated-input model in the same family.
Related Products
- 3700 — closely related 32-channel TMR analog input module; verify the exact voltage-range and overrange requirements before substitution.
- 3701 — 32-channel differential TMR analog input for 0–10 VDC signals; different input range.
- 3703E — 16-channel isolated TMR analog input; different channel count and isolation architecture.
- 3721 — 32-channel TMR analog input with a different signal-range configuration.
- 3704E — high-density TMR analog input module; different channel architecture.
- 3708E / 3708EN — isolated thermocouple input modules; intended for thermocouple signals rather than general 0–5 VDC acquisition.
- Tricon ETP — external termination hardware used with Tricon analog input modules.
- Tricon chassis — mechanical and electrical platform into which the 3700A is installed.
Procurement Check
For a replacement, specify Triconex 3700A and verify the installed Tricon chassis generation, firmware/configuration, external termination panel, cable assembly, signal type, and channel scaling. The most important electrical check is whether the existing field signals are actually 0–5 VDC or are being converted to current through the documented 250 Ω shunt arrangement. Do not approve a 3701 or generic analog-input substitute simply because it has the same 32-channel count.
