Triconex 3351S2 Analog Input Module
Product Overview
The Triconex 3351S2 is a 32-channel analog input module for the Triconex Tri-GP architecture. It is designed to acquire analog field signals and provide redundant input processing within a safety-oriented control system. Unlike a conventional single-channel PLC analog input card, the 3351S2 belongs to a Triple Modular Redundant (TMR) architecture in which three parallel channels provide independent signal processing and diagnostic coverage.
The module is specifically identified in the Tri-GP product guide as an Analog Input Module, while the standard 5351S2 Analog Input TriPak combines one 3351S2 module with a 2351S2 analog-input baseplate kit. The same 3351S2 hardware is also used in other Tri-GP analog-input packages, including RTD/thermocouple/4–20 mA and HART configurations when paired with the corresponding baseplate and accessories.
For engineers maintaining a Triconex installation, this distinction is important: 3351S2 is the electronics module; 2351S2 is the associated standard analog-input baseplate. The module should therefore not be purchased or specified as though it were a complete field termination assembly. The exact baseplate, termination arrangement, and field-signal type must be checked against the installed system.
Product Introduction — Non-Templated
A safety-system analog input module has a different job from an ordinary PLC AI card. The field signal is not merely converted from voltage to a digital value; the architecture has to support redundant processing and fault detection while keeping the safety logic available.
Triconex 3351S2 provides the Tri-GP platform with 32 channels of 0–5 VDC analog acquisition in a TMR architecture. For an existing Triconex installation, that makes it a system-specific safety I/O component rather than a generic voltage-input replacement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3351S2 |
| Manufacturer | Triconex / Invensys / Schneider Electric |
| Product Family | Tricon General Purpose (Tri-GP) |
| System Architecture | TMR |
| Product Type | Analog Input Module |
| Number of Channels | 32 |
| Standard Input Range | 0–5 VDC |
| Module Architecture | Triple Modular Redundant |
| Associated TriPak | 5351S2 |
| Associated Baseplate | 2351S2 |
| Primary Function | Analog field-signal acquisition |
| Safety-System Application | Trident SIS / Tri-GP |
| Configuration Environment | Triconex system engineering/configuration tools |
| Exact Input Performance | Verify against the applicable hardware revision and system documentation |
| Exact Power Consumption | Verify against the applicable Triconex hardware documentation |
| Exact Environmental Rating | Verify against the applicable hardware revision |
The 32-channel, 0–5 VDC TMR identification is supported by Triconex lifecycle documentation. Public secondary listings sometimes add values for resolution, accuracy, isolation, temperature range, and scan time, but those figures are not sufficiently supported by the primary documentation available here, so they should not be treated as guaranteed specifications for every 3351S2 revision.
Major Features / Practical Advantages
32-Channel Analog Acquisition
The 3351S2 provides 32 analog input points in the Tri-GP architecture. That channel density is useful where a safety system has a large number of continuous process measurements but the application does not require the broader signal-conditioning options of specialized analog-input baseplates.

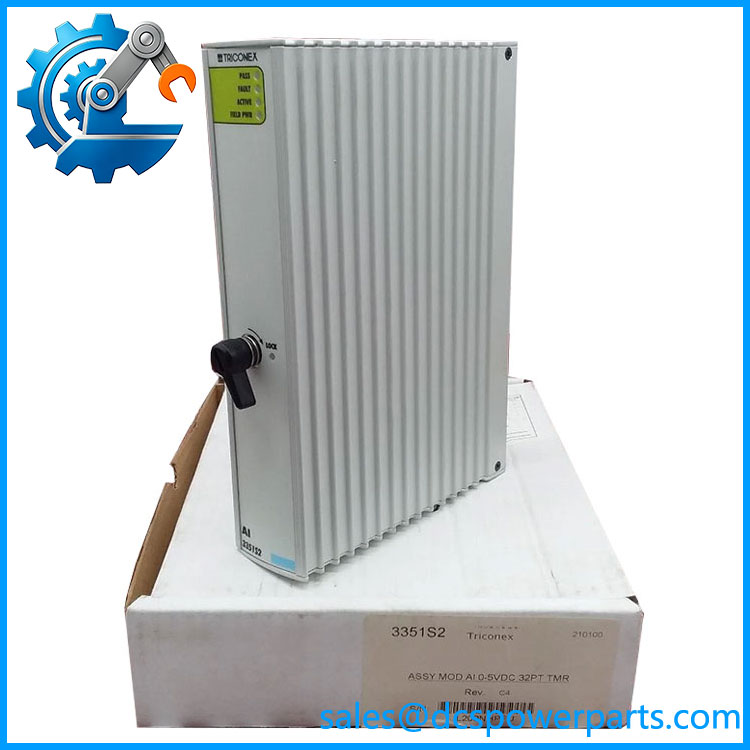

3351S2
Triple Modular Redundancy
The defining architectural characteristic is TMR. Three processing channels operate independently, with the Triconex architecture using redundant processing and voting mechanisms to identify discrepancies and maintain system availability.
That is fundamentally different from simply installing three identical conventional AI cards. The redundancy is built into the Triconex architecture, including its diagnostics and system-level fault management.
Tri-GP Platform Integration
The 3351S2 belongs to the Tri-GP family rather than the older Triconex I/O naming conventions alone. The technical product guide lists the 3351S2 as the module used by the 5351S2 Analog Input TriPak.
This makes the exact system generation important when planning a replacement. A visually similar Triconex analog module from another family should not be assumed compatible.
Flexible TriPak Configurations
One useful point in the Triconex architecture is that the same 3351S2 analog-input module can appear in different TriPak configurations.
The product guide identifies:
- 5351S2 — standard analog input TriPak
- 5352S2 — analog input TriPak for RTD/TC/4–20 mA applications
- 5354S2 — HART analog input TriPak
- 5354AS2 — HART analog input TriPak for hazardous-location applications
In these assemblies, the baseplate and associated hardware determine much of the field-interface behavior. The 3351S2 module remains the analog-input electronics component.
Field-Replaceable Architecture
The Triconex architecture is designed around modular I/O replacement. Triconex documentation describes module-level field installation and repair while the controller remains online and without disturbing field wiring.
That is valuable in a safety-system maintenance environment, but online replacement should still follow the site’s approved maintenance procedure. Do not interpret modular replacement capability as permission to remove a live safety module without checking the system’s diagnostic state and replacement procedure.
Safety-System Signal Acquisition
The 3351S2 is suited to continuous process measurements that need to enter the safety system as analog variables. Typical applications can include process pressure, temperature, level, flow, or other continuously measured variables when their transmitter/interface configuration matches the supported input arrangement.
The actual field application must be checked against the installed termination/baseplate assembly. The module number alone does not tell you whether the cabinet is configured for a standard voltage input, HART, RTD/TC, or another signal interface.
Related Products
- 5351S2 — Complete Tri-GP Analog Input TriPak consisting of a 3351S2 analog input module and 2351S2 analog input baseplate kit.
- 2351S2 — Standard analog-input baseplate kit associated with the 3351S2. It provides the field-side termination/interface portion of the standard Tri-GP assembly.
- 5352S2 — Tri-GP analog-input package using the 3351S2 with an RTD/TC/4–20 mA baseplate. This should not be confused with the standard 0–5 VDC configuration.
- 5354S2 — HART analog-input TriPak using the 3351S2, 2354S2 HART baseplate, and Triconex 4850 HART multiplexer.
- 5354AS2 — Hazardous-location HART analog-input TriPak using the 3351S2 with the hazardous-location 2354AS2 baseplate and associated HART hardware.
- 3361S2 — 16-channel analog-input / 16-channel digital-input Tri-GP module, useful where mixed AI/DI acquisition is required rather than 32 analog inputs.
- 3301S2 — 32-point 24 VDC TMR digital input module for Tri-GP systems. It performs discrete acquisition rather than analog measurement.
- 3382S2 — Enhanced pulse-input module for frequency/pulse measurements; it is functionally different from the 3351S2 analog-input module.
- 3401S2 — 16-point 24 VDC TMR digital output module for Tri-GP systems.
FAQ
Is the Triconex 3351S2 a standard PLC analog input card?
No. It is a Tri-GP TMR analog input module intended for the Triconex safety-system architecture. The published product guide identifies it as a 32-channel analog-input module, and lifecycle documentation specifies the standard 0–5 VDC input configuration.
How many analog inputs does 3351S2 provide?
The documented configuration provides 32 analog input points. The lifecycle documentation identifies the module as “AI 0–5VDC 32PT TMR.”
Does 3351S2 directly support 4–20 mA?
Be careful here. The 3351S2 module itself is the common analog-input electronics, but the Tri-GP product guide shows that 4–20 mA, RTD/TC, and HART applications use different associated baseplates and packages. The 5352S2 and 5354S2 configurations, for example, retain the 3351S2 while changing the baseplate/interface hardware.
Can I hot-swap the 3351S2?
The Triconex architecture supports module-level field replacement while the controller remains online, according to Triconex system documentation.
However, that does not mean an engineer should simply pull the module without checking system diagnostics and the approved replacement procedure. For a safety-system module, confirm the affected channels, redundancy status, bypass requirements, and maintenance authorization before removal.
Is 3351S2 compatible with the 5351S2 TriPak?
Yes. The Triconex technical product guide explicitly lists the 5351S2 Analog Input TriPak as consisting of one 3351S2 Analog Input Module and one 2351S2 Analog Input Baseplate Kit.
Does 3351S2 support HART?
The 3351S2 is used in the documented 5354S2 HART Analog Input TriPak, together with the 2354S2 HART baseplate and Triconex 4850 HART multiplexer. Therefore, HART capability should be considered a system/package configuration, not an intrinsic capability of every standalone 3351S2 installation.
Does 3351S2 support firmware version 3.1?
The part number alone does not establish a firmware revision. For an installed Triconex system, record the actual module/system revision and confirm compatibility through the applicable Triconex engineering documentation before replacement.
Can I replace 3351S2 with 3361S2?
Not as a direct assumption. 3361S2 is documented as a mixed analog-input/digital-input module with 16 analog and 16 digital points, whereas 3351S2 is the 32-point analog-input module. Their I/O architecture and application are different.
What should I verify before buying a 3351S2?
Check the complete module label, system generation, installed baseplate, field signal type, module revision, application configuration, and existing diagnostics. In particular, verify whether the installed assembly is the standard 5351S2, the RTD/TC/4–20 mA 5352S2, or a HART configuration such as 5354S2.
Procurement Note
For Triconex 3351S2, the biggest procurement mistake is treating the module number as though it completely defines the field interface. It does not.
The published Tri-GP documentation shows the same 3351S2 module being used with different baseplates and TriPak configurations. The standard 5351S2 package is based on the 2351S2 baseplate, while RTD/TC/4–20 mA and HART applications use different associated hardware.
Before issuing a replacement purchase order, capture:
- Complete module part number and revision
- Existing Tri-GP assembly number
- Baseplate part number
- Field signal type
- Number of active channels
- System/controller generation
- Existing configuration and channel assignments
- Diagnostic status before removal
- Physical connector and termination arrangement
- Any required safety-system bypass or maintenance procedure
Do not accept a generic description such as “Triconex 32-channel AI” as sufficient. The 3351S2 is part of a safety-system architecture, and the associated baseplate determines how the field signals reach the module.
For a like-for-like replacement, the safest purchasing description is Triconex 3351S2, 32-channel TMR analog input module, complete with the same installed baseplate/interface configuration and matching hardware revision. This keeps the procurement specification tied to the actual system rather than relying on a shortened catalog description.
