Description
Product Overview
TRICONEX 9771-210 is a field termination panel designed for Triconex Safety Instrumented System (SIS) analog input modules. It is a dedicated signal interface component used to connect field devices with Triconex analog input modules, providing reliable signal termination, current input conversion, power distribution, and wiring management functions. As part of the Triconex Tricon controller I/O ecosystem, 9771-210 plays an important role in ensuring accurate and stable communication between field instrumentation and the safety controller.
TRICONEX 9771-210 is configured as a 16-point current input termination panel and is primarily used with Triconex analog input modules that accept voltage-based signals such as 0–5 VDC, 0–10 VDC, and ±5 VDC. The panel converts current loop signals into voltage signals through precision resistor networks, allowing compatibility with various analog field transmitters. Each channel incorporates current limiting and signal conditioning functions to improve measurement stability and protect connected equipment.
TRICONEX 9771-210 is widely applied in critical industrial safety applications where high reliability and fault tolerance are required. It supports Triconex TMR (Triple Modular Redundant) safety architectures used in oil and gas, petrochemical, power generation, and process industries. By providing a structured connection interface between field instruments and safety controllers, 9771-210 simplifies system installation, improves maintenance efficiency, and enhances overall SIS availability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 9771-210 |
| Manufacturer | TRICONEX (Schneider Electric / Invensys) |
| Product Type | Analog Input Termination Panel |
| System Platform | Tricon Safety Instrumented System (SIS) |
| Panel Type | Current Input, User Configurable |
| Number of Channels | 16 points |
| Compatible Signal Types | 0–5 VDC, 0–10 VDC, -5 to +5 VDC |
| Compatible Modules | 3700, 3700A, 3703E, 3721 analog input modules |
| Input Configuration | Differential analog input interface |
| Current Conversion Method | Precision 250 Ω resistor conversion |
| Channel Protection | 180 Ω series current limiting resistor |
| Power Input | Redundant 24 VDC supply support |
| Power Protection | Diode ORing redundant supply configuration |
| Mounting Type | Tricon chassis / field termination cabinet mounting |
| Application | Safety-critical analog signal acquisition |
| Architecture Support | TMR (Triple Modular Redundant) |
| Operating Environment | Industrial control cabinet environment |
| Typical Installation | Process plants and SIS cabinets |

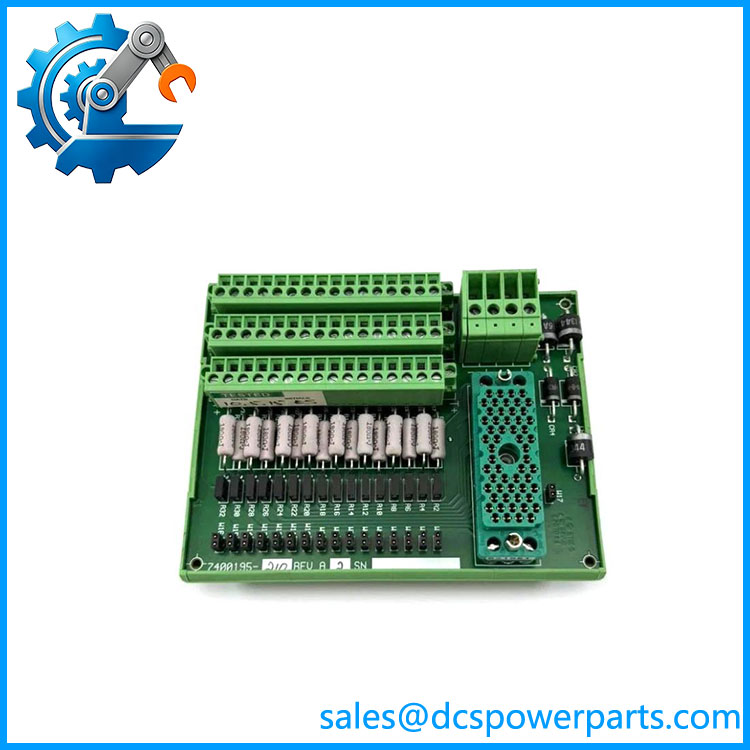

9771-210
Main Features and Advantages
TRICONEX 9771-210 is engineered to provide a dependable interface between industrial field instruments and Triconex safety controllers. Its primary function is not only signal termination but also improving signal integrity, simplifying field wiring, and ensuring reliable analog data acquisition in safety-related applications.
One of the key advantages of TRICONEX 9771-210 is its flexible analog input compatibility. The panel supports multiple voltage-based analog input configurations, including 0–5 VDC, 0–10 VDC, and bipolar ±5 VDC signals. This flexibility allows engineers to connect various transmitters and measurement devices without requiring additional signal conversion hardware.
The 16-channel design of 9771-210 provides an efficient solution for managing multiple field signals within a compact installation footprint. Each input channel is individually arranged for easier troubleshooting and maintenance, helping technicians quickly identify wiring problems, sensor faults, or abnormal measurement conditions.
TRICONEX 9771-210 incorporates precision signal conversion components to maintain measurement accuracy. Each input channel uses a precision resistor network to convert current signals into voltage signals suitable for Triconex analog input modules. The controlled conversion process improves consistency between field transmitters and safety controller input circuits.
Another important feature of 9771-210 is redundant power supply support. The terminal panel can accept redundant 24 VDC power sources with diode ORing technology, improving system availability and reducing the risk of power-related interruptions in critical safety applications.
TRICONEX 9771-210 is designed for integration with Triconex TMR safety systems. When combined with compatible Triconex analog input modules, the termination panel supports highly reliable signal acquisition architectures used in SIL-rated safety applications.
The modular design of 9771-210 also improves lifecycle management. During maintenance activities, engineers can replace or inspect field termination components without major changes to the overall SIS configuration. This reduces downtime and helps maintain long-term operational reliability.
With robust signal conditioning, flexible input compatibility, redundant power capability, and compatibility with Triconex safety platforms, TRICONEX 9771-210 provides a reliable field interface solution for demanding industrial environments.
Applications
TRICONEX 9771-210 is primarily used in Safety Instrumented Systems where reliable analog signal acquisition from field devices is essential. In oil and gas facilities, 9771-210 is commonly installed in emergency shutdown systems to connect pressure transmitters, temperature transmitters, level instruments, and other process measurement devices to Triconex safety controllers.
In petrochemical and chemical processing plants, TRICONEX 9771-210 supports monitoring of critical process parameters that require independent safety protection. The module helps transfer accurate field measurement information into SIS logic solvers, enabling timely protective actions when abnormal conditions occur.
Power generation facilities use 9771-210 in turbine protection systems, boiler safety systems, fuel monitoring applications, and auxiliary process protection systems. Its compatibility with redundant Triconex architectures makes it suitable for applications requiring continuous operation and high availability.
TRICONEX 9771-210 is also used in offshore platforms, LNG facilities, and refinery safety systems where environmental conditions are demanding and process shutdown reliability is critical. The structured termination design simplifies installation of large numbers of field instruments while improving cabinet organization.
Typical application areas include:
- Emergency shutdown systems (ESD)
- Fire and gas protection systems
- Oil and gas production facilities
- Petrochemical plants
- Refinery safety systems
- Power generation protection systems
- Offshore platforms
- LNG processing facilities
- Process automation safety systems
Related Products
TRICONEX 3700 — 32-channel analog input module compatible with 9771-210, supporting 0–5 VDC differential inputs.
TRICONEX 3700A — Enhanced analog input module with additional over-range measurement capability, compatible with 9771-210.
TRICONEX 3703E — 16-channel isolated analog input module supporting 0–5 VDC and 0–10 VDC signals.
TRICONEX 3721 — Analog input module supporting configurable voltage ranges including ±5 VDC.
TRICONEX 9761-210 — Related analog input termination panel used for voltage input applications.
TRICONEX 9763-810 — Analog input termination panel designed for different field wiring configurations.
TRICONEX 9791-610 — Current input termination panel for Triconex analog applications.
TRICONEX 3008 — Main processor module used in Tricon safety controller systems.
TRICONEX 3625 — Analog output module used in Triconex control and safety applications.
