Description
Product Overview
TRICONEX 3501TN2 is a 32-point digital input module designed for Tricon fault-tolerant safety systems. Each input point accepts a discrete AC/DC field signal and is electrically isolated from the input electronics through optical isolation. The module is designed around the Tricon TMR architecture, allowing the safety system to process redundant input information and maintain operation when an individual module or channel develops a fault. Unlike a conventional PLC digital input card, the TRICONEX 3501TN2 is intended for safety-system applications where diagnostic coverage and fault tolerance are central to the I/O architecture.
The documented electrical configuration is particularly important: 3501TN2 is a 115 VAC/DC digital input module with 32 isolated input points. The nuclear-safety documentation also identifies it as a surface-mount version of the earlier 3501TN design, with software updates and qualification for the Tricon V10 platform. The module is therefore not interchangeable merely because another Tricon input card has 32 channels. For example, the 3502EN2 is a 48 VAC/DC module and the 3503EN2 is a 24 VAC/DC module; their electrical characteristics and field termination arrangements are different.
For maintenance teams, TRICON 3501TN2 is most relevant when preserving an existing Tricon V9/V10 safety installation. The exact module marking, revision, terminal panel, cable assembly, and field voltage should be checked before replacement, particularly where the equipment forms part of a certified safety application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | TRICONEX / Invensys / Schneider Electric |
| Model | 3501TN2 |
| Product Type | TMR Digital Input Module |
| Input Voltage | 115 VAC/DC |
| Number of Inputs | 32 |
| Input Isolation | Opto-isolated |
| Input Configuration | Non-commoned |
| Architecture | Triple Modular Redundancy (TMR) |
| Input Type | Discrete / Digital |
| Standard Model Equivalent | 3501T |
| Tricon Platform | V9 / V10; specific revision compatibility required |
| Nuclear 1E EDI | EDI 5909 |
| Typical Application | Safety Instrumented System digital inputs |
| Installation | Tricon I/O chassis |
| Termination | Compatible Tricon external termination panel and interface cable |
The official-style Tricon planning documentation lists 3501TN2 under Tricon V10.x equipment certified for nuclear 1E applications and specifies 115 VAC, opto-isolated, non-commoned, TMR.
Main Features and Advantages
32 Isolated Digital Inputs
The 3501TN2 provides 32 discrete input points for monitoring field contacts and other binary signals. Optical isolation separates the field-side signals from the module’s internal electronics, reducing the direct electrical coupling between external wiring and the safety-system circuitry.
TMR Safety Architecture
The module is designed for Tricon’s Triple Modular Redundancy architecture. Redundant processing paths allow the system to identify discrepancies and tolerate defined hardware faults without immediately losing the safety function.
This is a fundamental difference from a standard single-channel PLC DI card. The 3501TN2 participates in a system-level fault-tolerant architecture rather than simply providing 32 conventional digital inputs.
115 VAC/DC Input Capability
The 115 VAC/DC rating is one of the most important selection criteria. It distinguishes the 3501TN2 from other Tricon digital-input models. The Tricon documentation lists:
- 3501TN2: 115 VAC
- 3502EN2: 48 VAC/VDC
- 3503EN2: 24 VAC/VDC
These should not be substituted solely on the basis of channel count.
Nuclear 1E Application Variant
The N2 designation is significant in qualified Tricon installations. Documentation identifies 3501TN2 as an equipment variant certified for nuclear 1E applications and associates it with EDI 5909.
For a certified installation, the qualification status can be as important as electrical compatibility.

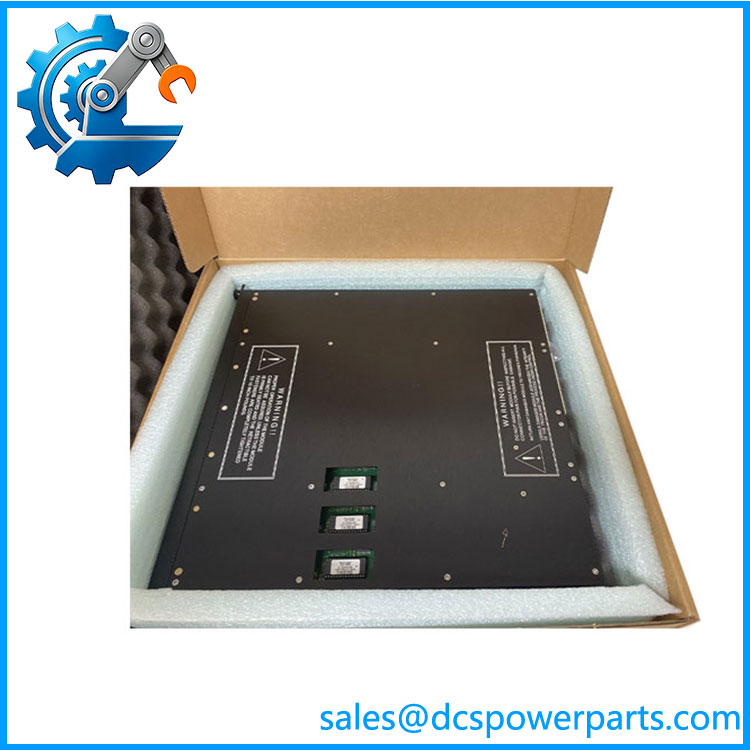

3501TN2
Application Scenarios
Emergency Shutdown Systems
The module can monitor discrete field conditions used by ESD logic, including trip contacts and permissive signals.
Process Safety Systems
Typical signals may include:
- Pressure switch status
- Limit-switch status
- Valve position contacts
- Motor status
- Equipment permissives
- Shutdown contacts
- Alarm contacts
Nuclear Safety Applications
The documentation specifically lists 3501TN2 among Tricon equipment certified for nuclear 1E applications.
Legacy Tricon Installations
The module is particularly valuable as a replacement spare for existing Tricon V9/V10 installations where the original field wiring and termination architecture should remain unchanged.
Related Components
- 3501T — Standard model corresponding to the 3501TN2 qualified variant.
- 3502EN2 — 48 VAC/VDC TMR digital input module.
- 3503EN2 — 24 VAC/VDC TMR digital input module.
- 9561-110N / 9561-810N — Tricon termination panels associated with 3501TN2 in the Tricon v9–v11 planning documentation.
- 3008N — Enhanced Main Processor III used in the Tricon V10 architecture.
- 8310N2 — High-density 120 V power module.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Confuse 3501TN2 With 3503EN2
Both are Tricon digital input modules, but their input voltage classes are different.
3501TN2 → 115 VAC/DC
3503EN2 → 24 VAC/DC
The wrong card can create a serious field-interface problem.
⚠️ Do Not Assume 3501T and 3501TN2 Are Identical for Certified Applications
The documentation identifies 3501T as the standard model equivalent, while 3501TN2 is the qualified variant.
For a normal legacy installation, interchangeability may depend on the specific system revision. For a nuclear or otherwise certified installation, the qualification requirement must be verified separately.
⚠️ Verify the Termination Panel
Tricon documentation specifically associates 3501TN2 with termination panels such as 9561-110N and 9561-810N using XLPE interface cables.
Do not replace the module without checking the installed termination hardware and cable assembly.
⚠️ Verify Field Voltage Before Energizing
The most important commissioning check is the actual field voltage. Do not rely solely on an old BOM or cabinet label.
Measure and document the field signal voltage before connecting a replacement module.
⚠️ Refurbished Does Not Mean Tested
For a safety-system input module, a simple power-up test is insufficient. A proper evaluation should verify channel operation, isolation, indicators, diagnostics, and the module’s interaction with the Tricon test configuration.
Frequently Asked Questions
What is TRICONEX 3501TN2?
It is a 32-channel, 115 VAC/DC, opto-isolated TMR digital input module for Tricon safety systems.
Is 3501TN2 an analog input card?
No. It is a digital/discrete input module.
How many input channels does it have?
32 isolated input points.
What voltage does 3501TN2 use?
The documented rating is 115 VAC/DC.
Is 3501TN2 a TMR module?
Yes. The Tricon documentation identifies it as non-commoned, opto-isolated, TMR.
What is the difference between 3501TN2 and 3501T?
3501T is identified as the standard model, while 3501TN2 is the qualified N2 variant used in specific Tricon V10/nuclear 1E applications.
What should I request when purchasing a replacement?
For a used or refurbished 3501TN2, request:
- Front and rear photographs.
- Exact 3501TN2 marking.
- Serial number and revision.
- Confirmation of 115 VAC/DC input configuration.
- Channel-by-channel functional test.
- Diagnostic/indicator test.
- Insulation/isolation test where applicable.
- Compatibility confirmation with the existing termination panel.
- Test report.
- Certification/qualification documentation if required by the project.
Procurement description:
TRICONEX 3501TN2, 32-Point 115 VAC/DC Opto-Isolated TMR Digital Input Module, N2 Qualified Variant, for Tricon Safety System — verify revision, termination panel, and project certification requirements before replacement.
