Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SPAU341C1-AA |
| Order Code | RS488003-AA |
| Manufacturer | ABB |
| Product Series | SPACOM 300 |
| Product Type | Automatic Voltage Regulator |
| Main Application | Transformer on-load tap changer control |
| Regulation Function | Automatic voltage control |
| Auxiliary Supply | 80–265 V AC/DC |
| Rated Frequency | 50 Hz |
| Communication Interface | RS-488 serial communication |
| Voltage Measurement Input | Transformer secondary voltage measurement |
| Current Input | Load current measurement for compensation functions |
| Control Outputs | Tap changer raise/lower commands |
| Additional Functions | Line drop compensation, parallel operation, overcurrent blocking |
| Protection Functions | Undervoltage/overvoltage supervision |
| Installation Type | Panel-mounted relay case |
| Compatible Platform | ABB SPACOM substation automation systems |
Application Scenarios & Pain Points
Voltage regulation problems in substations often appear during peak demand periods. A transformer may still operate, but unstable secondary voltage can affect industrial loads, motor performance, and downstream control equipment.
Typical applications:
- Electrical Distribution Substations: Used for automatic control of power transformer tap changers to maintain regulated output voltage.
- Industrial Power Networks: Applied in plants with large transformers supplying variable process loads.
- Utility Transformer Stations: Supports automatic voltage adjustment based on measured network conditions.
- Generator Auxiliary Systems: Used where transformer voltage stability is required for reliable plant operation.
Field note: A manufacturing facility experienced frequent manual tap adjustments during production load changes. Investigation showed the regulator settings had drifted from the original transformer commissioning values. After replacing the aging SPAU341C1-AA module and restoring the documented parameters, automatic voltage control returned to normal.

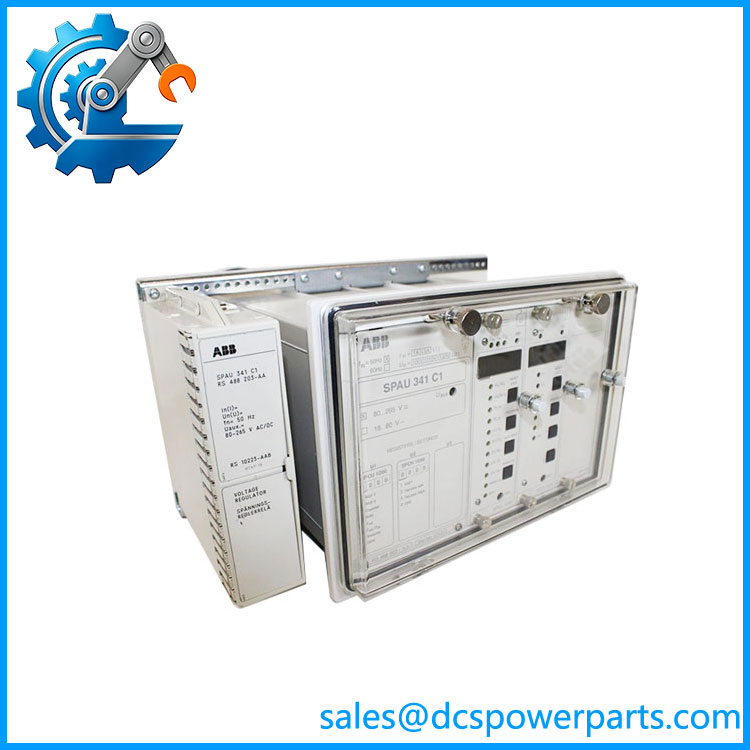

SPAU341C1-AA
Related Products
- ABB SPAU341C3 — Basic version of the SPAU 341 C voltage regulator without the integrated manual regulating module. Suitable for installations where manual control is handled separately.
- ABB SPCU 1D50 — Automatic voltage regulating module used inside SPAU341C1 configurations. Handles regulation calculation and control logic.
- ABB SPCN 1D56 — Manual voltage regulating module paired with SPAU341C1 variants for manual adjustment functions.
- ABB SPGU 240 A1 — Power supply module for versions requiring 80–265 V AC/DC auxiliary supply.
- ABB SPA-ZC 17 / SPA-ZC 21 — Bus connection modules supporting serial communication interfaces.
- ABB SPA-ZC 100 — Parallel operation bus connection module used in transformer parallel regulation applications.
- ABB SPAA/SPACOM Protection Relays — Related relay family used for feeder, transformer, and substation protection applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect Transformer Configuration Settings
A regulator replacement may power up correctly while controlling the tap changer incorrectly if transformer data is not restored.
How to avoid: Verify rated voltage, CT ratio, VT ratio, tap range, and compensation parameters before operation.
⚠️ RS-488 Communication Parameter Mismatch
Remote monitoring problems often come from incorrect serial settings rather than hardware failure.
How to avoid: Record communication address, baud rate, and SPA bus configuration before removing the existing module.
⚠️ Wrong Auxiliary Supply Variant
SPAU341 versions were produced with different auxiliary voltage options.
How to avoid: Check the complete order code and nameplate information before replacement.
Frequently Asked Questions (FAQ)
What is the ABB SPAU341C1-AA RS488003-AA used for?
The SPAU341C1-AA is an automatic voltage regulator used to control transformer on-load tap changers and maintain stable secondary voltage in distribution systems.
Is the -AA a protection relay?
No. Its primary function is voltage regulation. It works alongside protection relays but focuses on maintaining transformer output voltage.
What is the difference between and SPAU341C3?
The includes an automatic regulating module and manual regulating module combination, while the SPAU341C3 is a basic version without the same manual regulating arrangement.
Can the RS488003-AA replace another SPAU341 variant?
Only after checking:
- Auxiliary supply range
- Frequency rating
- Transformer application
- Communication settings
- Existing wiring configuration
The suffix code is important because different variants may have different operating requirements.
Why does a transformer voltage regulator fail after replacement?
Common causes include:
- Incorrect tap changer settings
- Wrong voltage transformer ratio
- Incorrect current compensation parameters
- Communication configuration mismatch
- Wiring errors
What should be checked before purchasing an ABB -AA?
Recommended checks:
- Full ordering code
- Existing SPACOM rack configuration
- Supply voltage
- Serial communication requirements
- Tap changer type
- Saved parameter settings
Is a refuBB suitable for substation service?
A tested refurbished unit can be suitable when it passes power checks, input/output verification, communication testing, relay output checks, and parameter compatibility review before installation.
