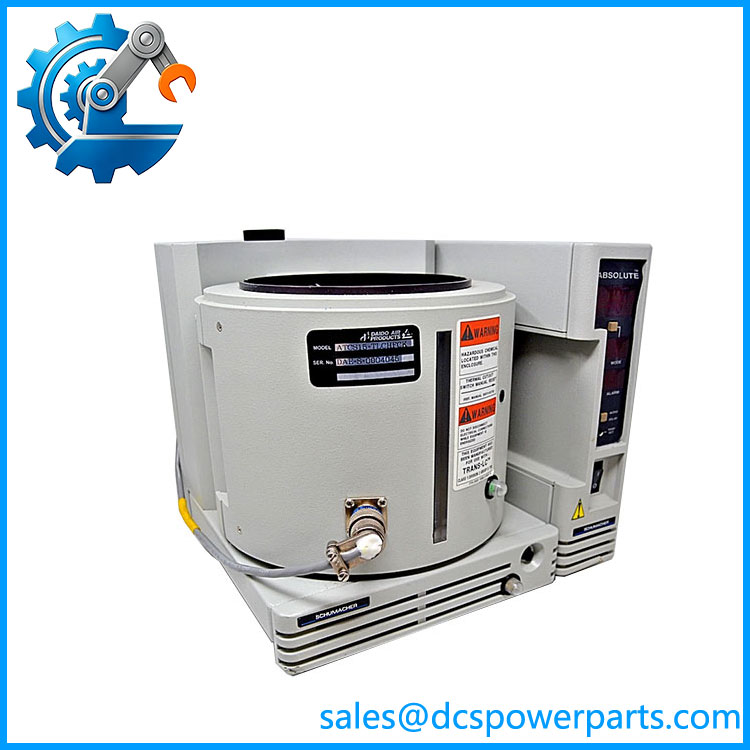

SCHUMACHER ATCS-15 1464-0320 | New Surplus Temperature Unit

Description

Product Overview

The SCHUMACHER ATCS-15 1464-0320 is an advanced temperature control unit designed for applications requiring stable thermal regulation and accurate process monitoring. The controller manages temperature feedback signals from connected sensors and adjusts heating or cooling outputs to maintain the configured operating point. The SCHUMACHER ATCS-15 1464-0320 is used in specialized industrial equipment, laboratory systems, semiconductor-related processes, and precision temperature management applications where consistent thermal performance is required.

Built around an industrial control architecture, the ATCS-15 1464-0320 provides real-time signal processing, communication capability, and programmable control functions. Available technical references identify the unit with a 32-bit RISC processor, 40 MHz operating frequency, 128 KB memory, 512 KB storage capacity, and multiple communication interfaces including RS-232, RS-422, RS-485, and Ethernet. These functions allow integration with supervisory systems, machine controllers, and industrial monitoring networks.

The SCHUMACHER ATCS-15 1464-0320 is maintained in existing temperature-controlled installations where replacing the complete thermal management system would require unnecessary engineering changes. Typical applications include laboratory temperature systems, equipment cooling control, and industrial process temperature regulation. Replacement planning should include verification of sensor type, control parameters, output wiring, communication settings, and stored configuration data. To be completely transparent, temperature controllers are sensitive to calibration and sensor matching; replacing the controller without checking the measurement chain can result in incorrect temperature regulation even when the hardware powers on normally.

Product Introduction (Non-Templated)

Temperature instability can affect process repeatability long before an equipment failure becomes obvious. The SCHUMACHER ATCS-15 1464-0320 provides the control interface required for maintaining regulated thermal conditions in specialized systems.

With 24 VDC operation, industrial communication interfaces, and real-time temperature processing capability, this unit supports legacy temperature control replacement projects and precision equipment maintenance.

Key Technical Specifications

Related Products

• SCHUMACHER -HTSS — Related ATCS temperature control variant. Used for applications requiring different temperature regulation configurations.
• SCHUMACHER Series Controller — Base platform family. Suitable for systems requiring similar temperature monitoring and control functions.
• SCHUMACHER Temperature Control Modules — Supporting modules used for extending sensor inputs, outputs, or system communication capability.
• ABB AC 800M Controllers — Industrial automation controllers commonly integrated with process measurement and temperature control systems through communication networks.
• YOKOGAWA UP55A Series — Process temperature controllers used in industrial applications requiring PID-based temperature regulation.
• Honeywell UDC Series Controllers — Industrial process controllers used for temperature, pressure, and flow regulation applications.
• Siemens S7 Temperature Control Modules — PLC-based temperature management components used when thermal control is integrated into larger automation systems.

ATCS-15

Frequently Asked Questions (FAQ)

1. Is the SCHUMACHER 1464-0320 compatible with my existing temperature control system?

Compatibility depends on the complete thermal control configuration.

Verify:

• Temperature sensor type
• Input signal range
• Heating/cooling actuator wiring
• Communication interface
• Existing parameter configuration

The controller model alone does not confirm a direct replacement match.

2. Can I hot-swap this?

The 1464-0320 is not generally treated as a hot-swappable process controller.

Recommended replacement steps:

1. Record temperature parameters
2. Save communication settings
3. Remove system power
4. Replace the controller
5. Restore configuration
6. Perform temperature verification testing

Controlled restart is recommended for precision temperature systems.

3. Does the 1464-0320 support firmware v3.1?

Firmware compatibility depends on the installed hardware revision and application configuration.

Check:

• Controller firmware version
• Communication software compatibility
• Sensor configuration
• Existing parameter files

The correct firmware must match the installed system requirements.

4. Will I lose my temperature settings when replacing the 1464-0320?

The replacement unit does not automatically contain the original calibration settings.

Before replacement:

• Record PID parameters
• Save temperature limits
• Document sensor scaling
• Backup communication settings

After installation, restore parameters and verify actual temperature readings.

5. How can I verify a New Surplus SCHUMACHER 1464-0320 is authentic?

Recommended checks:

• Confirm manufacturer label
• Verify model number
• Inspect connectors and housing
• Check hardware markings
• Review available inspection records

For temperature control equipment, configuration verification is as important as physical condition.

6. Can the 1464-0320 support a legacy equipment upgrade?

Yes, when the existing system already uses SCHUMACHER ATCS control hardware.

Common applications:

• Laboratory equipment maintenance
• Industrial cooling systems
• Thermal process restoration
• Precision equipment refurbishment

The existing sensor and actuator hardware should be reviewed before installation.

7. What should engineers check before commissioning this controller?

Key checks include:

1. Verify 24 VDC supply
2. Confirm sensor wiring
3. Check output channel operation
4. Restore control parameters
5. Test communication links
6. Validate temperature stability

These checks help confirm correct thermal control performance after replacement.
