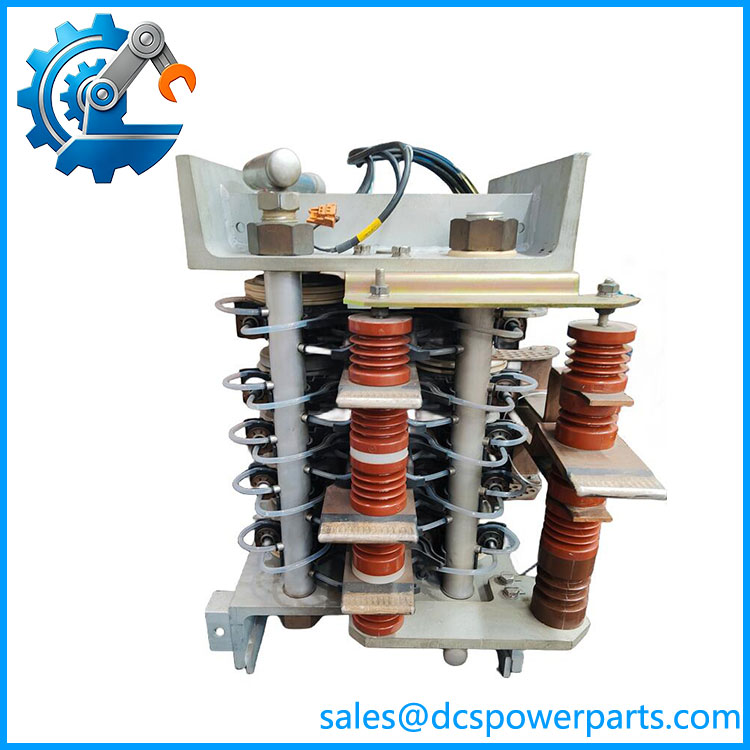

ABB S-093N 3BHB009885R0021 Product Description
Product Overview
ABB S-093N 3BHB009885R0021 is a high-power phase module developed by ABB for medium-voltage power conversion and industrial drive applications. It is a core power electronic component used in ABB ACS6000 medium-voltage AC drive systems and PCS6000 power conversion platforms, providing high-performance power switching and phase control functions for large industrial motors, generators, and energy conversion equipment.
The ABB S-093N 3BHB009885R0021 phase module adopts advanced IGCT (Integrated Gate Commutated Thyristor) power semiconductor technology and three-level NPC (Neutral Point Clamped) topology, enabling efficient medium-voltage power conversion with low harmonic distortion and excellent dynamic response. As a key power stage component, ABB S-093N 3BHB009885R0021 works together with ABB AC 800PEC control systems, gate control units, cooling systems, and other converter components to achieve precise motor speed regulation and stable energy conversion.
Designed for demanding industrial environments, ABB S-093N 3BHB009885R0021 provides high reliability, strong overload capability, and efficient thermal performance. It is widely applied in large-scale industries such as steel, mining, marine propulsion, oil and gas, renewable energy, and high-power industrial drive systems where continuous operation, energy efficiency, and precise control are critical.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | S-093N 3BHB009885R0021 |
| Manufacturer | ABB |
| Product Type | Medium Voltage Phase Module / Power Semiconductor Module |
| Application System | ABB ACS6000 / PCS6000 Medium Voltage Converter Systems |
| Main Technology | IGCT (Integrated Gate Commutated Thyristor) |
| Circuit Topology | Three-level NPC inverter topology |
| Rated Voltage Class | Medium voltage application (3.3 kV / 6 kV class systems) |
| Switching Device | Reverse-conducting IGCT |
| Rated Current | Approx. 1200 A–1800 A class |
| Power Capability | MW-level industrial power conversion applications |
| Cooling Method | Forced air cooling or liquid cooling depending on system configuration |
| Control Interface | Fiber-optic gate control interface |
| Mounting Type | Converter cabinet/module installation |
| Protection Functions | Overcurrent, overvoltage, temperature monitoring |
| Operating Environment | Industrial power conversion environment |
Main Features and Advantages
High-power conversion capability:
ABB S-093N 3BHB009885R0021 is designed for medium-voltage high-power converter systems and provides reliable switching performance for large industrial applications. Its IGCT-based power architecture enables efficient energy conversion while handling high electrical loads, making it suitable for applications requiring continuous high-power operation.
S-093N
Advanced IGCT semiconductor technology:
The use of IGCT technology gives ABB S-093N 3BHB009885R0021 excellent switching characteristics, low conduction losses, and strong overload capability. Compared with traditional power semiconductor solutions, IGCT technology provides improved efficiency and reliability in medium-voltage drive applications.
Low harmonic and high-efficiency operation:
Through three-level NPC topology, ABB S-093N 3BHB009885R0021 helps reduce output voltage distortion and improve motor power quality. The optimized switching structure reduces harmonic content, decreases motor stress, and improves the overall efficiency of the drive system.
Reliable ABB ACS6000 system integration:
ABB S-093N 3BHB009885R0021 is specifically designed for ABB medium-voltage converter platforms. It integrates with ABB control and protection systems to provide accurate phase control, stable power output, and coordinated operation within complete drive architectures.
Robust industrial construction:
The module is designed for harsh industrial environments where vibration, electrical stress, temperature variations, and continuous operation are common. ABB S-093N 3BHB009885R0021 provides long-term reliability for critical equipment where unexpected downtime can result in significant production losses.
Efficient maintenance and replacement:
The modular design of ABB S-093N 3BHB009885R0021 allows easier replacement during scheduled maintenance. For facilities operating ABB ACS6000 systems, maintaining spare phase modules helps reduce repair time and improve system availability.
Application Areas
ABB S-093N 3BHB009885R0021 is mainly used in medium-voltage variable frequency drive systems and large-scale power conversion equipment. Its high-power switching capability makes it suitable for industries requiring precise motor control and energy-efficient operation.
In steel and metallurgy plants, ABB S-093N 3BHB009885R0021 is applied in large rolling mills, conveyors, crushers, and heavy mechanical drive systems. It enables accurate speed regulation and stable torque control for high-power motors used in continuous production processes.
In mining and mineral processing industries, ABB S-093N 3BHB009885R0021 supports large pumps, compressors, grinding mills, and conveyor systems. The module helps improve equipment efficiency while reducing mechanical stress during operation.
In oil and gas facilities, ABB S-093N 3BHB009885R0021 can be used in high-power motor drive applications such as compressors, pumps, and offshore equipment. Its reliable medium-voltage operation supports critical processes requiring uninterrupted production.
In renewable energy and power conversion systems, ABB S-093N 3BHB009885R0021 contributes to efficient energy conversion and grid-compatible operation. It is suitable for applications requiring high efficiency, precise control, and reliable long-term performance.
Related Products
- ABB S-073N 3BHB009884R0021: Related ABB ACS6000 phase module with different electrical specifications and power rating.
- ABB S-093H 3BHB030478R0009: Alternative phase module model used in ABB medium-voltage converter platforms.
- ABB ACS6000 Medium Voltage Drive System: Complete drive platform using S-093N 3BHB009885R0021 as a power conversion component.
- ABB PCS6000 Power Converter System: Medium-voltage power conversion platform compatible with the phase module.
- ABB AC 800PEC Controller: High-performance controller platform used for ABB power electronics systems.
- ABB IGCT Power Modules: Semiconductor power modules used in ABB high-power converter systems.
- ABB ACS880 Medium Voltage Drive Series: Modern ABB drive platform for industrial motor control applications.
- ABB Converter Cabinet Modules: Power cabinet assemblies integrating phase modules and control components.
