Description
Product Overview

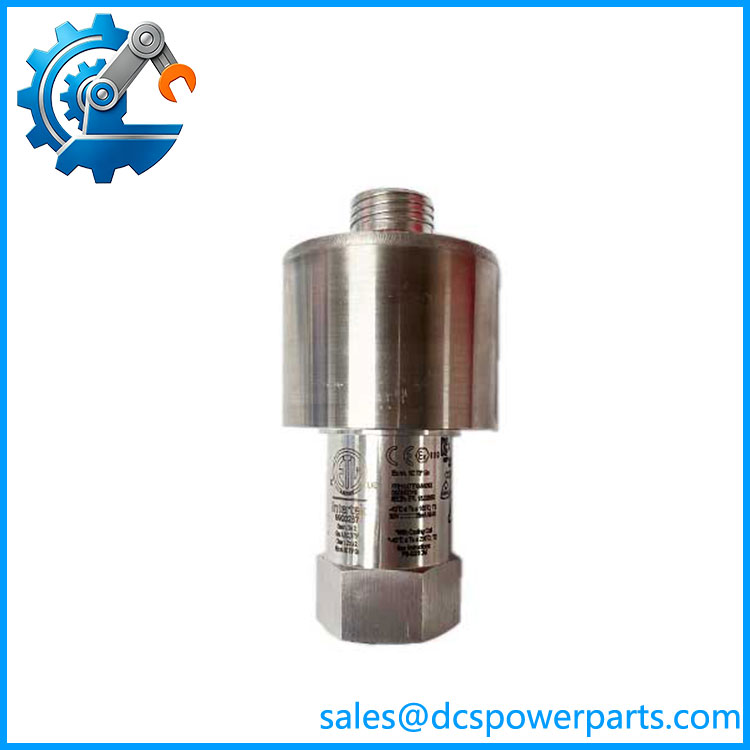

GE Reuter-Stokes RS-FS-9001 is a high-performance silicon carbide (SiC) two-wire flame sensor designed for industrial combustion monitoring applications. It is part of the GE Reuter-Stokes flame detection product family and is primarily used for reliable flame presence detection in gas turbines, boilers, industrial furnaces, and other combustion equipment. The RS-FS-9001 converts ultraviolet flame radiation characteristics into a proportional 4–20 mA output signal, enabling direct integration with turbine control systems, burner management systems (BMS), DCS, and safety monitoring platforms.
GE RS-FS-9001 uses advanced silicon carbide photodiode sensing technology combined with a high-performance electronic amplifier circuit. The sensor detects the characteristic UV radiation generated by combustion flames and provides stable flame intensity feedback through a two-wire current loop interface. Because power supply and signal transmission share the same two wires, the RS-FS-9001 simplifies field wiring while improving installation reliability in demanding industrial environments.
GE RS-FS-9001 is widely deployed in critical combustion safety applications where fast response, high-temperature resistance, and dependable flame monitoring are required. The sensor is commonly integrated into GE Speedtronic turbine control systems and industrial burner management solutions, helping operators detect flame failure conditions quickly and initiate protective actions. Its rugged construction and high immunity to environmental interference make RS-FS-9001 suitable for continuous operation in harsh industrial environments such as power plants, refineries, and process industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | RS-FS-9001 |
| Manufacturer | GE Reuter-Stokes |
| Product Type | Silicon Carbide Two-Wire Flame Sensor |
| Application | Industrial flame detection and combustion monitoring |
| Sensor Technology | SiC photodiode UV flame detection |
| Output Signal | 4–20 mA proportional flame intensity signal |
| Power Supply | 12–30 VDC |
| Wiring Method | Two-wire loop powered connection |
| Detection Principle | Ultraviolet radiation detection |
| Response Time | Fast flame response (application dependent) |
| Operating Temperature | High-temperature industrial environment |
| Housing Design | Sealed industrial sensor housing |
| Protection Level | Industrial flame monitoring enclosure |
| Installation Type | Burner / turbine flame monitoring installation |
| Compatible Systems | GE turbine control, BMS, DCS interfaces |
| Typical Applications | Gas turbines, boilers, furnaces, combustion systems |
RS-FS-9001
Main Features and Advantages
GE RS-FS-9001 provides a highly reliable flame monitoring solution for industrial combustion equipment. Its SiC semiconductor sensing element offers excellent ultraviolet detection capability and long-term stability under harsh operating conditions. Compared with conventional flame detection technologies, RS-FS-9001 provides improved sensitivity and faster response to flame presence changes, helping operators maintain safe and efficient combustion processes.
Advanced SiC sensor technology is one of the most important advantages of GE RS-FS-9001. Silicon carbide materials provide excellent resistance to high temperatures and harsh industrial environments, making the sensor suitable for installation near combustion chambers, turbine compartments, and high-energy burner systems.
The two-wire loop-powered design of RS-FS-9001 simplifies system integration. Power supply and measurement signals are transmitted through the same pair of wires, reducing field cabling requirements and improving installation efficiency. The standard 4–20 mA output allows easy connection with PLC, DCS, turbine control systems, and safety instrumented systems.
GE RS-FS-9001 incorporates a sophisticated amplifier circuit that automatically adjusts gain according to detected flame intensity. This allows the sensor to handle a wide range of flame conditions while avoiding signal saturation, improving measurement stability during changing combustion conditions.
The rugged sealed construction of RS-FS-9001 improves reliability in industrial environments where vibration, temperature variation, dust, and electromagnetic interference are common. The sensor design supports long-term operation with minimal maintenance requirements.
Another major benefit of GE RS-FS-9001 is its compatibility with critical combustion safety systems. In gas turbines and industrial burners, accurate flame detection is essential for preventing fuel accumulation, combustion instability, and equipment damage. The sensor provides dependable flame status feedback for automatic protection functions.
GE RS-FS-9001 also offers maintenance advantages because of its straightforward electrical interface and proven industrial design. Replacement and commissioning procedures are simplified, reducing downtime during service activities.
With high sensitivity, fast response, robust construction, and compatibility with modern combustion control systems, GE RS-FS-9001 is a reliable flame monitoring solution for demanding industrial applications.
Applications
GE RS-FS-9001 is primarily used in combustion safety and flame monitoring systems where continuous flame verification is required. In gas turbine power plants, RS-FS-9001 is installed near combustion chambers to monitor ignition and flame stability, providing critical feedback to turbine protection and control systems.
In industrial boiler applications, GE RS-FS-9001 is used for burner flame supervision. The sensor continuously monitors flame presence and helps burner management systems perform safe startup, shutdown, and emergency protection operations.
Petrochemical and refinery facilities use RS-FS-9001 for furnace and heater flame monitoring. Reliable flame detection helps prevent unsafe fuel release conditions and improves overall process safety.
Industrial manufacturing plants, including steel, glass, cement, and chemical production facilities, use GE RS-FS-9001 in high-temperature combustion equipment where accurate flame monitoring is essential.
The sensor is also suitable for retrofit projects where older flame detectors need replacement with modern, reliable sensing technology. Its 4–20 mA output allows integration with existing automation systems without major control architecture changes.
Typical application areas include:
- Gas turbine combustion monitoring
- Industrial boiler burner management systems
- Refinery process heaters
- Petrochemical furnaces
- Power generation plants
- Combustion safety systems
- Industrial ovens and furnaces
- Burner control systems
- GE Speedtronic turbine applications
