Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 1336-BDB-SP4D |
| Alternate Part Number | 74103-244-54 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Gate Drive PCB Assembly |
| Drive Family | 1336 Adjustable Frequency AC Drives |
| Compatible Drive Series | 1336 FORCE, 1336 PLUS, 1336 PLUS II, 1336 IMPACT |
| Rated Voltage | 460 VAC |
| Motor Power Rating | 20 HP |
| Auxiliary Voltage | 24 VDC |
| PCB Function | Power transistor gate signal control |
| Installation Position | Mounted below main control PCB |
| Communication | Internal drive board interface |
| Mounting Method | Standoffs and screws |
| Application | AC motor speed control systems |
| Board Category | Drive Power Electronics Spare |
| Weight | Approx. 3.4 lb (1.5 kg) |
Product Introduction
Allen-Bradley 1336-BDB-SP4D 74103-244-54 Product Introduction
Allen-Bradley 1336-BDB-SP4D 74103-244-54 is a gate drive printed circuit board assembly used in the 1336 family of adjustable frequency AC drives. The board generates and manages gate control signals for the drive power switching section, allowing the inverter stage to regulate motor voltage and frequency.
The importance of Allen-Bradley 1336-BDB-SP4D 74103-244-54 is maintaining legacy motor drive systems where replacing the complete drive may require unnecessary downtime or engineering changes. Before installation, confirm drive horsepower rating, voltage class, firmware revision, and the existing control board configuration.

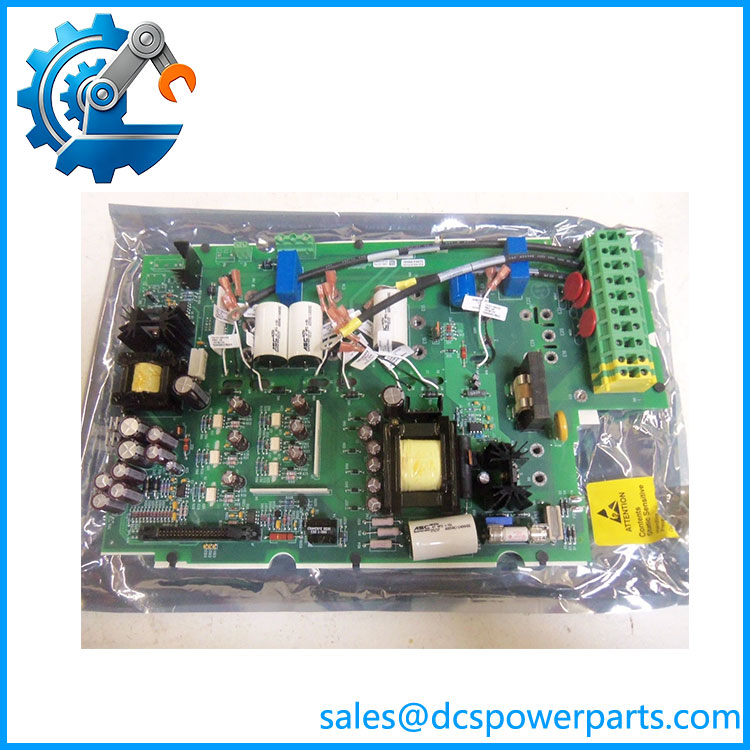

1336-BDB-SP4D
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production line motor suddenly stops with a drive fault. The control display still powers up, parameters remain accessible, and communication appears normal. Testing later shows the failure is inside the power interface section where the gate drive board controls the switching devices.
Gate drive boards are not typical plug-and-play control cards. They sit close to high-voltage power electronics, and incorrect replacement procedures can damage both the new board and the drive power section.
Typical Applications
- Manufacturing Automation – Variable speed control for conveyors, mixers, pumps, and production machinery.
- Water and Wastewater – Motor speed regulation for centrifugal pumps and blower systems.
- Material Processing – AC drive control for crushers, fans, extruders, and heavy mechanical loads.
- Oil & Gas Facilities – Legacy motor drive systems for auxiliary pumps and process equipment.
Technical Pitfalls to Avoid
- Confirm the Exact Drive Model Before Replacement
The 1336-BDB-SP4D is not interchangeable across all 1336 drives. Verify the drive catalog number, voltage class, horsepower rating, and series revision. - Inspect Power Components Before Installing a New Board
A failed IGBT or damaged power module can cause repeated gate board failures. Check the inverter section, DC bus condition, and insulation resistance before startup. - Handle the PCB Using Proper ESD Procedures
Gate drive electronics are sensitive to electrostatic discharge. Use appropriate grounding procedures during removal and installation.
Related Products
- Allen-Bradley 1336-BDB-SP4C
Earlier gate drive PCB version replaced by the SP4D revision. Used in previous 1336 drive configurations where compatibility must be verified. - Allen-Bradley 1336-BDB-SP3D
Gate driver PCB for lower horsepower 1336 drive applications. Designed for different power ratings than the version. - Allen-Bradley 1336-CONV-
Conversion-related hardware used when updating certain 1336 drive configurations. - Allen-Bradley 1336-MOD-KC005
Communication interface accessory for 1336 drive systems requiring network connectivity. - Allen-Bradley 1336-FORCE Series Drives
AC drive platform supported by the gate drive assembly. Used for industrial motor speed control applications. - Allen-Bradley 1336-PLUS Series Drives
Legacy adjustable frequency drives using modular PCB assemblies for service replacement. - Allen-Bradley 1336-IMPACT Series Drives
Higher performance 1336 drive family with compatible gate drive board architectures. - Allen-Bradley 1336 Main Control Board Assemblies
Companion control electronics that interface with the gate drive PCB to manage drive operation.
