Description
Product Overview
ABB REF545KM133AAAB is a feeder protection and control terminal belonging to the ABB REF 545 series of intelligent protection relays. It is designed for medium-voltage distribution networks, providing integrated protection, measurement, control, monitoring, and communication functions for feeders, switchgear panels, and electrical distribution equipment. The REF545 family is part of ABB’s well-established Relion/REF protection technology platform, developed to improve reliability and operational efficiency in industrial and utility power systems. ABB REF545KM133AAAB is typically configured as a feeder protection terminal with communication capability for integration into substation automation systems.
ABB REF545KM133AAAB combines microprocessor-based protection technology with programmable logic and advanced communication functions. The device continuously monitors electrical parameters such as current, voltage, frequency, and circuit breaker status, allowing rapid detection of abnormal conditions including overcurrent, earth faults, short circuits, and feeder disturbances. Through configurable protection functions and logic programming, REF545KM133AAAB can adapt to different distribution network requirements while maintaining high selectivity and system availability.
In modern power automation architectures, ABB REF545KM133AAAB acts as an intelligent interface between field switchgear equipment and supervisory control systems. It supports remote monitoring, event recording, disturbance analysis, and communication with SCADA or substation automation platforms. With its compact design, powerful protection algorithms, and flexible configuration options, REF545KM133AAAB is widely used in medium-voltage substations, industrial power distribution systems, manufacturing plants, and utility networks requiring dependable feeder protection and automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | REF545KM133AAAB |
| Manufacturer | ABB |
| Product Type | Feeder Protection and Control Terminal |
| Series | ABB REF545 Series |
| Application | Medium-voltage feeder protection and automation |
| Main Function | Protection, measurement, control, monitoring, communication |
| Protection Functions | Overcurrent, earth fault, voltage supervision, breaker protection (configuration dependent) |
| Measurement Functions | Current, voltage, power, frequency measurement |
| Processor Technology | Microprocessor-based digital protection technology |
| Communication Interface | Serial communication / substation communication interface |
| Communication Protocols | IEC 60870-5-103, Modbus, SPA, other ABB protocols (configuration dependent) |
| Binary Inputs | Configurable digital inputs for status monitoring |
| Binary Outputs | Configurable relay outputs for breaker and alarm control |
| Event Recording | Disturbance and fault event recording capability |
| Configuration Software | ABB CAP / Relay Configuration Tools |
| Installation Type | Panel-mounted feeder protection terminal |
| Power Supply | Auxiliary DC supply (configuration dependent) |
| Operating Temperature | Industrial substation operating range |
| Application Environment | Medium-voltage switchgear and substations |

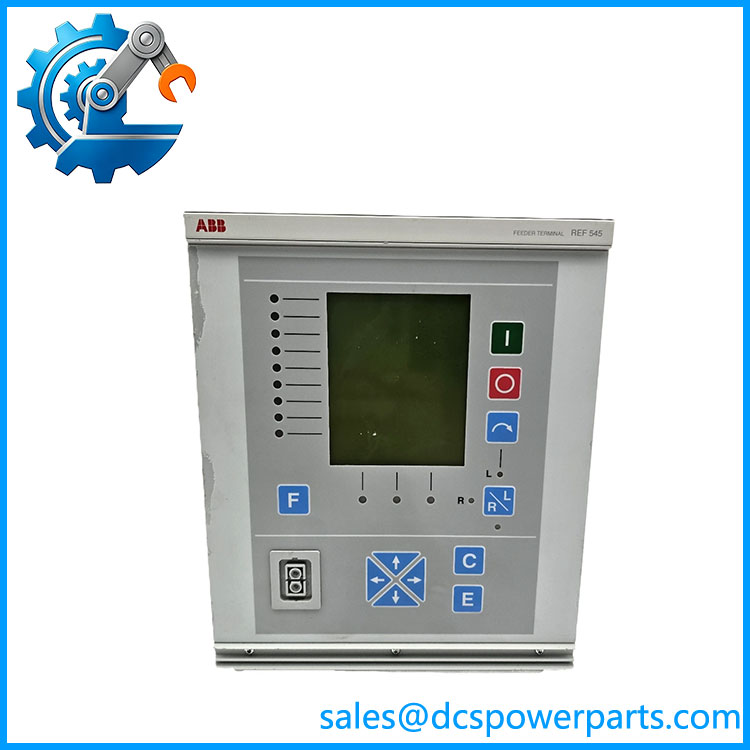

REF545KM133AAAB
Main Features and Advantages
ABB REF545KM133AAAB provides a complete feeder protection and control solution by combining multiple functions into a single intelligent relay platform. Unlike traditional standalone protection devices, REF545KM133AAAB integrates protection, measurement, control, and communication functions, reducing the need for additional hardware and simplifying switchgear automation design.
One of the key advantages of ABB REF545KM133AAAB is its flexible protection configuration. The relay can be programmed to meet different feeder protection requirements, including phase overcurrent protection, earth fault protection, breaker failure supervision, and voltage-related monitoring functions. This flexibility allows engineers to optimize protection settings according to network characteristics, load conditions, and operational requirements.
ABB REF545KM133AAAB provides advanced monitoring and diagnostic capabilities that improve system reliability. The relay continuously supervises electrical conditions and records important operational information such as fault events, alarms, and disturbance records. This information helps maintenance engineers analyze system behavior, identify fault causes, and reduce troubleshooting time.
Communication capability is another important strength of REF545KM133AAAB. The relay can be integrated into substation automation systems and industrial control networks, enabling remote access to protection information, measurement values, and operational status. This improves visibility of electrical assets and supports centralized energy management.
The modular design philosophy of ABB REF545KM133AAAB makes it suitable for both new installations and modernization projects. Existing medium-voltage switchgear systems can be upgraded with intelligent protection and communication functions without significant changes to the overall electrical infrastructure.
ABB REF545KM133AAAB also offers high operational reliability through industrial-grade hardware design. It is engineered for continuous operation in demanding electrical environments where protection performance directly affects personnel safety, equipment protection, and power system stability.
With integrated protection functions, communication capability, and proven ABB relay technology, REF545KM133AAAB provides an effective solution for reliable feeder protection and intelligent substation automation.
Applications
ABB REF545KM133AAAB is widely used in medium-voltage electrical distribution systems where reliable feeder protection and control are required. In utility substations, the relay is applied for protecting outgoing feeders, distribution lines, and switchgear sections. By continuously monitoring electrical parameters and detecting abnormal conditions, REF545KM133AAAB helps prevent equipment damage and maintain stable power delivery.
In industrial power systems, ABB REF545KM133AAAB is commonly installed in factories, processing plants, and large commercial facilities where medium-voltage feeders supply critical production equipment. The relay provides protection against short circuits, overload conditions, and earth faults, helping reduce unplanned downtime and improve electrical safety.
The relay is also suitable for power generation auxiliary systems, including generator plants, renewable energy facilities, and utility-owned distribution networks. Its communication capability enables integration with SCADA systems, allowing operators to monitor feeder status and receive protection information remotely.
ABB REF545KM133AAAB is frequently used in modernization projects where older electromechanical protection devices are replaced with intelligent digital protection terminals. By introducing digital measurement, event recording, and communication functions, the relay improves operational efficiency and maintenance capability.
Additional applications include mining facilities, transportation infrastructure, water treatment plants, and process industries where reliable medium-voltage distribution protection is essential. Through accurate monitoring and fast fault response, REF545KM133AAAB helps organizations improve electrical system reliability and maintain continuous operation.
