Description
Product Overview

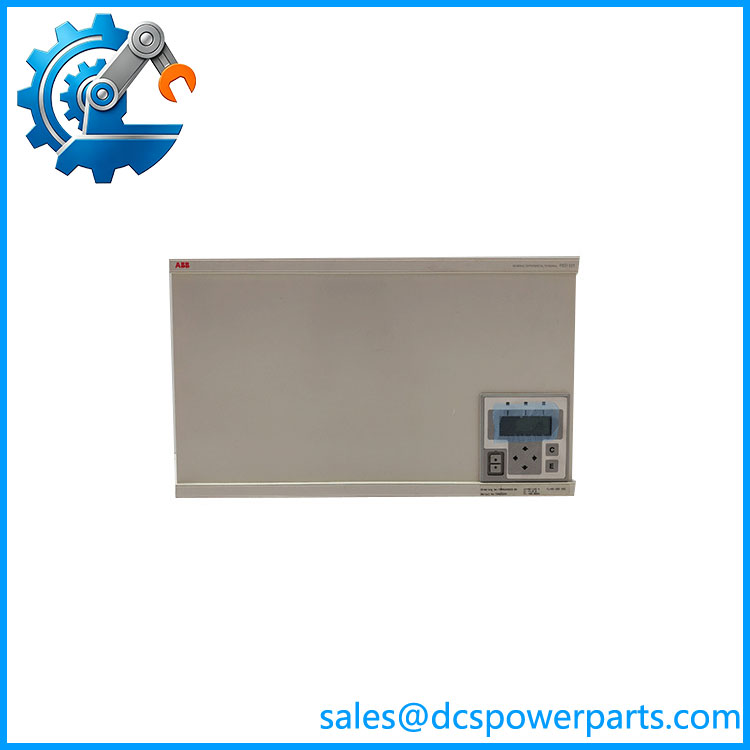

The ABB RED521 1MRK002003-BA is a numerical line differential protection terminal from ABB’s 500-series protection and control platform, designed for high-speed, selective protection of overhead lines and power cables. The ABB RED521 1MRK002003-BA combines phase-segregated current differential protection with distance protection, communication-assisted protection, autoreclosing, monitoring, and disturbance-recording functions. It is intended for applications ranging from distribution networks to high-voltage transmission systems, including heavily loaded and multi-terminal lines.
The RED521 1MRK002003-BA uses multiple stabilized current inputs to support multi-breaker and multi-terminal protection arrangements. Its differential protection is designed to maintain sensitivity during high-resistance faults while providing secure phase selection. The terminal also includes independent distance protection that can provide backup protection when the differential communication channel is unavailable. Differential communication is based on IEEE C37.94, with redundant communication options available for critical installations.
For utility substations, power-generation facilities, and industrial high-voltage networks, the ABB RED521 1MRK002003-BA provides an integrated protection platform for line, cable, feeder, and selected transformer-related applications. Its combination of fast fault clearance, flexible communication, autoreclosing, event recording, and system diagnostics makes it particularly valuable for maintaining reliable operation of critical electrical infrastructure.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | RED521 1MRK002003-BA |
| Manufacturer | ABB |
| Product Family | ABB 500-Series Protection and Control |
| Product Type | Line Differential Protection Terminal / Numerical Protection Relay |
| Primary Function | Phase-Segregated Line Differential Protection |
| Secondary Protection | Full-Scheme Distance Protection |
| Protected Objects | Overhead Lines, Power Cables, Feeders, T-Connections, Line Reactors |
| Differential Current Inputs | 6 stabilized three-phase current inputs |
| Differential Zones | 1 differential protection zone |
| Communication Standard | IEEE C37.94 |
| Intertrip Communication | 8 channels for intertrip and binary signals |
| Protection Functions | Differential, Distance, Overcurrent, High-Impedance Differential |
| Autoreclosing | Single-, Two-, and Three-Phase Reclosing |
| Monitoring | Event Recording, Disturbance Recording, Self-Supervision |
| Installation | Substation Protection and Control Panel |
| Mounting | Rack, Surface, or Flush Mounting |
| Operating Temperature | Approx. -25°C to +55°C |
| Typical Application | HV/EHV Transmission and Substation Protection |
The exact auxiliary supply, CT input ratings, binary I/O configuration, communication interfaces, and hardware options depend on the complete order configuration. The 1MRK002003-BA suffix should be checked against the equipment nameplate and engineering documentation before replacement. Published technical references identify the variant as a six-three-phase-current-input differential protection terminal.
Main Features and Advantages
High-speed phase-segregated differential protection
The RED521 1MRK002003-BA provides phase-separated current differential protection with high sensitivity to internal faults, including high-resistance faults. The protection principle allows selective fault identification and supports single-, two-, or three-phase tripping according to the configured protection scheme.
Flexible multi-terminal protection
Six stabilized three-phase current inputs provide substantial flexibility for multi-breaker and multi-terminal arrangements. The published application information indicates that the configuration can support three-terminal applications with multi-breaker arrangements or up to five terminals with single-breaker arrangements. This makes the relay suitable for complex transmission-line topologies rather than only simple point-to-point circuits.
RED521
Independent distance backup protection
The integrated full-scheme distance protection provides an independent protection layer when the differential communication channel is interrupted. This improves overall protection availability and allows the relay to maintain line protection capability even when the primary communication-assisted scheme is unavailable.
IEEE C37.94 communication
The differential protection terminals communicate using IEEE C37.94, a standard widely associated with teleprotection over digital fiber-optic communication systems. Communication channels can be duplicated in critical installations to provide additional redundancy. Eight intertrip and binary-signal channels further expand remote-end signaling capability.
Charging-current compensation
Charging-current compensation improves differential protection sensitivity on long overhead lines and cables, helping the relay distinguish genuine internal faults from normal capacitive charging-current effects. This is particularly valuable for long-distance transmission and cable circuits.
Integrated autoreclosing and diagnostics
The terminal supports configurable single-, two-, and three-phase autoreclosing, including priority logic for multi-breaker arrangements. Event and disturbance recording provide useful information for post-fault analysis, maintenance, and protection-system verification.
Application Fields
The ABB RED521 1MRK002003-BA is primarily intended for electrical power-system protection, particularly overhead transmission and subtransmission lines. In utility substations, it can provide primary differential protection for critical line circuits while using integrated distance protection as an independent backup layer. This combination helps achieve rapid fault isolation while maintaining protection availability during communication failures.
In power-generation plants, the relay can protect high-voltage connections between generator block transformers and transmission networks. Its differential and distance functions can be coordinated with circuit breakers, CTs, communication equipment, and station automation systems to provide selective protection of generator evacuation lines and associated cable circuits.
The RED521 1MRK002003-BA is also suitable for complex multi-terminal and heavily loaded lines. Its flexible current-input architecture allows it to be engineered for multi-breaker arrangements, T-feeders, and other network configurations. High-impedance differential protection can additionally be applied to T-feeders or line reactors where appropriate.
For industrial substations in oil & gas, chemical, metallurgy, mining, and large manufacturing facilities, the relay can protect important medium- and high-voltage interconnections where an electrical fault could cause major production losses. Its disturbance recording, event information, communication, and autoreclosing functions also support centralized substation monitoring and maintenance.
The terminal is therefore particularly valuable in high-availability electrical networks where PLCs and DCS systems provide process control, while dedicated protection IEDs such as the ABB RED521 1MRK002003-BA provide fast and selective protection independent of ordinary automation logic.
