Pacific Scientific SIGMA 5210 | Legacy Stepper Drive Replacement

Product Overview

The Pacific Scientific SIGMA 5210 is a stepper motor driver and indexer designed for programmable motion-control applications. Pacific Scientific documentation for the closely related 5220 platform identifies the 5210 as a stepper-drive component, while industry references specifically classify the SIGMA 5210 as a step-motor driver module. It belongs to the Pacific Scientific SIGMA motion-control product family and is intended for applications where a controller needs deterministic positioning of a stepper motor rather than closed-loop servo operation.

At the machine level, the Pacific Scientific SIGMA 5210 provides the power interface between motion-control commands and the stepper motor windings. The associated SIGMA architecture uses a bipolar chopper drive, and documentation for the 5220 family describes programmable indexing, RS-232 communications, programmable I/O, jog functions, and limit inputs as part of the surrounding indexer/drive system. The 5210 itself is identified specifically as a driver step-motor module, so engineers should not automatically treat every feature documented for the 5220 as a specification of the 5210. That distinction matters when replacing an installed unit.

For legacy machinery, the Pacific Scientific SIGMA 5210 can be relevant where the original stepper-drive architecture remains operational but replacement hardware is becoming difficult to source. Its value is primarily in preserving an established motion-control design without immediately redesigning the motor, drive wiring, and controller interface. To be completely transparent, this is an older motion-control platform; successful replacement depends heavily on matching the motor winding configuration, drive requirements, command interface, and existing controller architecture. A visually similar stepper drive is not automatically a valid substitute.

Product Introduction (Non-Templated)

A failed stepper driver can stop an otherwise healthy machine even when the PLC and motion program remain intact. The Pacific Scientific SIGMA 5210 is identified as a SIGMA Line stepper motor driver module, providing the motor-drive stage for two-phase stepper applications.

For a legacy replacement, retaining the original 5210 can avoid unnecessary changes to motor wiring and machine-level control architecture. Verify the motor and controller interface before installation; the model number alone does not establish drop-in compatibility.

Key Technical Specifications

Pacific Scientific’s related 5220 documentation explicitly describes a bipolar MOSFET chopper drive and programmable indexer, while a component listing identifies model 5210 as a DRIVER STEP-MOTOR MODULE.

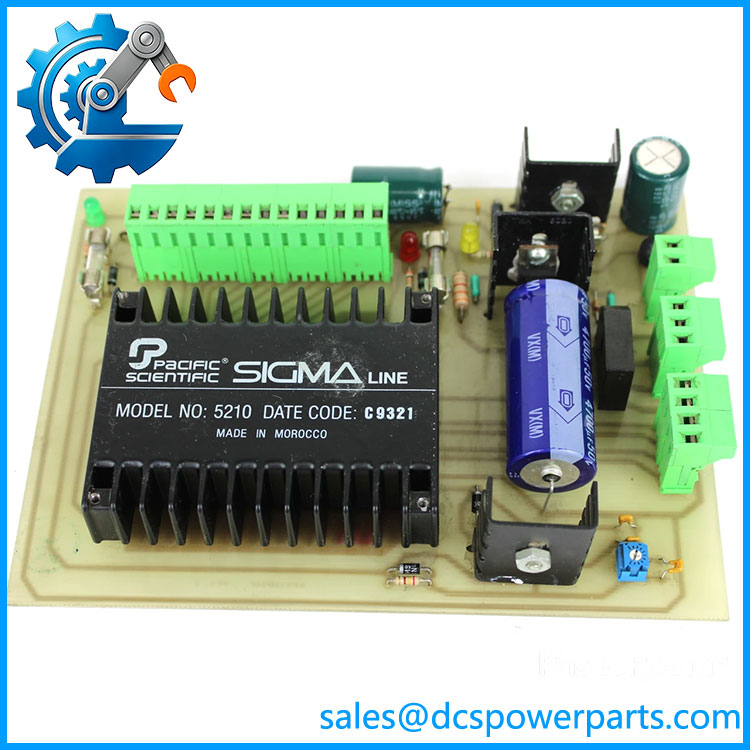

PACIFIC SCIENTIFIC SIGMA-5210

Related Products

• Pacific Scientific 5220 — An indexer/drive in the same broader motion-control family. Documentation describes programmable indexing, RS-232, programmable I/O, jog functions, and limit inputs. It should not be assumed to be a direct electrical replacement for the 5210.
• Pacific Scientific 6410-001-N-N-N — A Pacific Scientific stepper drive rated at 7.1 A and 75 VDC in available component references. Its electrical operating range differs, so motor and supply requirements must be checked before considering it as an alternative.
• Pacific Scientific 6410-001-N-N-K — Another 6410-series stepper-drive configuration. Option coding differs from the 5210, making the complete part number important for replacement work.
• Pacific Scientific HS6410 — Heat sink associated with the 6410 drive family. It is a thermal accessory rather than a functional substitute for the 5210.
• Pacific Scientific CK6410 — Connector kit associated with the 6410 series. Useful when engineering a 6410-based replacement, but not interchangeable with the 5210 simply because both are stepper-drive products.
• Pacific Scientific SC402-016-T4 — Servo-control product rather than a stepper driver. It belongs to a different motion-control architecture and should only be considered where the machine is being redesigned around servo control.
• Pacific Scientific PC843-001-T — Brushless servo drive for 120/240 VAC applications. It is a servo-drive alternative at the technology level, not a direct 5210 replacement.

Frequently Asked Questions

Can I replace a Pacific Scientific SIGMA 5210 with a SIGMA 5220?

Not automatically.

The 5220 combines a bipolar MOSFET stepper drive with a programmable indexer and additional control functions. Before substitution, compare:

1. Motor winding configuration.
2. Motor current and supply requirements.
3. Controller command method.
4. I/O requirements.
5. Existing programming architecture.
6. Physical mounting and connector arrangement.

A related model can be functionally similar without being a drop-in replacement.

Can I hot-swap the SIGMA 5210?

It should not be treated as a hot-swappable PLC I/O module.

The driver is directly connected to the stepper motor and its power circuitry. Disconnecting motor or control wiring while energized can create electrical and mechanical risks and may damage the drive. Follow the machine manufacturer’s isolation procedure before replacement.

Does the SIGMA 5210 support firmware v3.1?

I would not approve a firmware v3.1 requirement based solely on the model number. The available references identify the 5210 as a stepper motor driver, but I did not find reliable documentation establishing a specific v3.1 firmware revision for this exact model.

For a legacy replacement, obtain the revision/date-code information from the installed unit and compare it with the replacement before commissioning.

Will I lose my PLC or motion-program logic if I replace the 5210?

Normally, replacing the physical driver does not erase the PLC or CNC/motion-controller program.

The important issue is whether the machine’s controller depends on drive-specific settings or indexing functions. If the existing installation uses the 5210 as part of a programmed motion sequence, document the existing drive configuration and controller interface before removal.

What motor should be used with the Pacific Scientific SIGMA 5210?

The motor cannot be selected from the 5210 model number alone.

Check the original motor’s:

• Phase configuration
• Winding resistance and inductance
• Rated current
• Voltage
• Step angle
• Connection method
• Required torque and speed

A motor with the wrong winding characteristics can produce poor positioning, excessive heating, or drive faults even when the connector physically fits.

Is a New Surplus SIGMA 5210 suitable for a legacy machine?

Potentially, provided the hardware revision and electrical characteristics match the installed system.

For acceptance testing, I would verify the identification label, connector condition, enclosure condition, power-up behavior, motor-output operation, and any available indexer/control interface. A unit described as “new surplus” should still be checked against the original machine’s exact drive configuration.

What warranty should I request for a SIGMA 5210?

For an obsolete motion-control component, request a defined warranty period and a functional test scope rather than relying only on cosmetic condition.

At minimum, the test should establish that the driver powers up correctly and can operate a compatible stepper motor under controlled conditions. If the machine depends on programmable indexing or serial communication, those functions should be tested as part of the acceptance criteria.
