Description
Product Overview

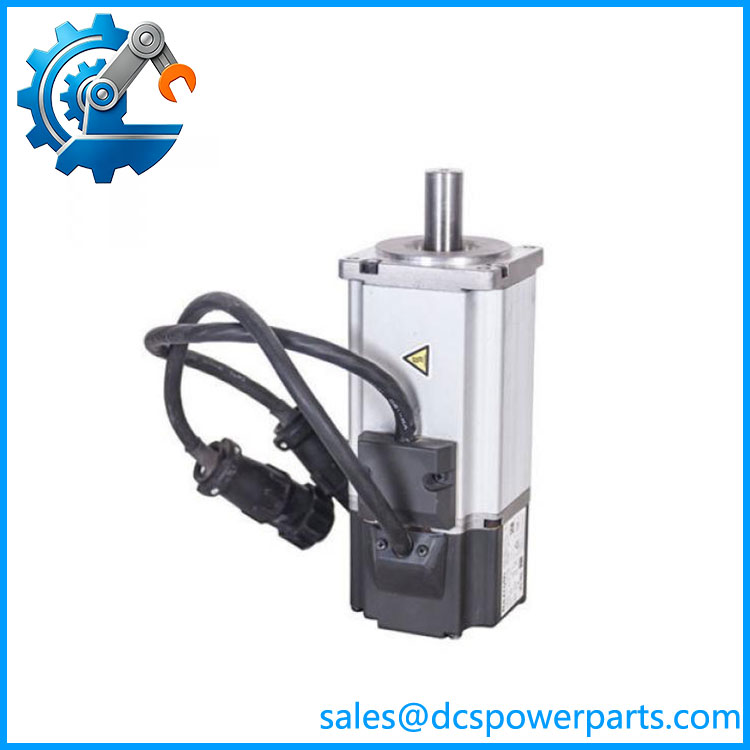

Bosch Rexroth Indramat MSM030C-0300-NN-M0-CG0 is a compact synchronous servo motor from the Rexroth IndraDyn S MSM series, designed for high-precision motion control applications in industrial automation systems. It combines permanent magnet synchronous motor technology, high-resolution absolute feedback, and a robust industrial mechanical design to provide accurate positioning, dynamic response, and reliable operation. The MSM030C-0300-NN-M0-CG0 is primarily used with Bosch Rexroth servo drives such as the IndraDrive family to create complete closed-loop motion systems for automation machinery.
Bosch Rexroth MSM030C-0300-NN-M0-CG0 belongs to the MSM IndraDyn S servo motor platform, which is optimized for applications requiring compact dimensions, excellent efficiency, and precise control characteristics. The motor features a 030 frame size, C length design, 0300 winding configuration, natural convection cooling, plain shaft construction, and a multiturn absolute encoder without holding brake. The MSM030C-0300-NN-M0-CG0 provides accurate rotor position feedback and enables fast commissioning through encoder data storage functions.
Bosch Rexroth MSM030C-0300-NN-M0-CG0 is an ideal solution for modern machine builders and industrial users who require reliable servo performance in a compact package. With IP65 protection, low maintenance requirements, and compatibility with advanced motion controllers, the MSM030C-0300-NN-M0-CG0 supports demanding applications such as packaging machinery, semiconductor equipment, robotics, assembly systems, and precision automation platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MSM030C-0300-NN-M0-CG0 |
| Manufacturer | Bosch Rexroth Indramat |
| Product Type | Synchronous Servo Motor |
| Series | IndraDyn S MSM Series |
| Motor Frame Size | 030 |
| Motor Length | C |
| Winding Code | 0300 |
| Rated Power | 300 W |
| Rated Speed | 3000 rpm |
| Maximum Speed | Approx. 5000 rpm |
| Cooling Method | Natural convection |
| Protection Class | IP65 |
| Encoder Type | Multiturn absolute encoder |
| Holding Brake | Without holding brake |
| Shaft Type | Plain shaft |
| Electrical Connection | Cable tail connection |
| Motor Weight | Approx. 1.5 kg |
| Ambient Temperature | 0°C to +40°C |
| Compatible Drives | Bosch Rexroth IndraDrive / EcoDrive systems |
MSM030C-0300-NN-M0-CG0
Main Features and Advantages
Bosch Rexroth MSM030C-0300-NN-M0-CG0 is designed for applications where compact size and high positioning accuracy are equally important. The motor uses permanent magnet synchronous technology, providing excellent torque density and efficient energy conversion compared with conventional motors. This allows machine designers to achieve smaller mechanical structures while maintaining reliable motion performance.
High-precision feedback capability is one of the key advantages of Bosch Rexroth MSM030C-0300-NN-M0-CG0. The integrated multiturn absolute encoder continuously provides rotor position information without requiring a reference travel after power-up. This improves machine availability, simplifies commissioning procedures, and enhances positioning reliability in automated systems.
Bosch Rexroth MSM030C-0300-NN-M0-CG0 features a compact 030 frame design that makes it suitable for machines with limited installation space. Despite its small dimensions, the motor provides stable dynamic characteristics and accurate control performance, making it suitable for precision mechanical systems.
The natural convection cooling design of Bosch Rexroth MSM030C-0300-NN-M0-CG0 eliminates the need for external cooling devices in normal operating conditions. This reduces system complexity, decreases maintenance requirements, and improves overall equipment reliability.
Bosch Rexroth MSM030C-0300-NN-M0-CG0 supports integration with Rexroth digital servo drive platforms, allowing complete closed-loop control of speed, torque, and position. The combination of servo motor and drive technology provides smooth acceleration, accurate synchronization, and stable operation during complex motion sequences.
Another advantage of Bosch Rexroth MSM030C-0300-NN-M0-CG0 is its rugged industrial construction. The IP65 protection rating helps protect internal components from dust and moisture, making the motor suitable for industrial environments with demanding operating conditions.
For equipment modernization and replacement projects, Bosch Rexroth MSM030C-0300-NN-M0-CG0 offers a dependable solution for upgrading existing motion systems while maintaining compatibility with established Rexroth automation architectures.
Applications
Bosch Rexroth MSM030C-0300-NN-M0-CG0 is widely used in industrial automation systems that require precise positioning, fast response, and reliable continuous operation. Its compact size and servo control capability make it suitable for both single-axis and multi-axis motion applications.
In packaging machinery, Bosch Rexroth MSM030C-0300-NN-M0-CG0 provides accurate control for feeding mechanisms, indexing units, sealing systems, and synchronized movement applications. The motor’s precise feedback helps maintain stable production speed and repeatable positioning.
In electronics and semiconductor manufacturing equipment, MSM030C-0300-NN-M0-CG0 supports precision movement systems where small positioning errors can affect product quality. Its absolute encoder technology enables accurate startup and consistent operation.
Bosch Rexroth MSM030C-0300-NN-M0-CG0 is also suitable for robotic mechanisms, automated assembly equipment, and handling systems. The motor provides smooth motion control for applications requiring frequent acceleration, deceleration, and positioning changes.
Machine tools and special-purpose machinery can use MSM030C-0300-NN-M0-CG0 for auxiliary axes, positioning tables, and compact servo mechanisms. Its compatibility with Rexroth drive systems simplifies integration into existing automation platforms.
Typical application areas include:
- Packaging machinery
- Automated assembly systems
- Robotics equipment
- Semiconductor manufacturing machines
- Precision positioning systems
- Machine tools
- Material handling equipment
- Printing and converting machinery
- Industrial automation systems
Related Products
Bosch Rexroth MSM030C-0300-NN-M0-CG1 — Similar servo motor with integrated holding brake configuration.
Bosch Rexroth MSM030C-0300-NN-C0-CG0 — Similar motor variant equipped with incremental encoder instead of multiturn absolute encoder.
Bosch Rexroth MSM030C-0300-NN-M0-CC0 — Related MSM030 motor variant with different shaft/electrical configuration.
Bosch Rexroth MSM040 Series — Larger MSM servo motor family for higher power requirements.
Bosch Rexroth IndraDrive Cs — Compact servo drive platform commonly paired with MSM motors.
Bosch Rexroth IndraDrive C — Servo drive family supporting MSM IndraDyn motors.
Bosch Rexroth EcoDrive Cs — Compact drive platform compatible with Rexroth synchronous motors.
Bosch Rexroth IndraWorks Engineering — Engineering software platform for drive commissioning and configuration.
