Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | MPL-B540K-SJ24AA/A |
| Product Family | MP-Series Low Inertia Servo Motors |
| Motor Type | Brushless AC Servo Motor |
| Voltage Rating | 460 VAC |
| Rated Output Power | 5.4 kW |
| Rated Speed | 4000 RPM |
| Frame Size | 165 mm |
| Magnet Stack Length | 101.6 mm (4.0 in.) |
| Continuous Stall Torque | 19.4 N·m |
| Peak Stall Torque | Approx. 47.4 N·m |
| Continuous Stall Current | 20.5 A (0-peak) |
| Feedback | Single-turn absolute encoder |
| Encoder Protocol | Hiperface |
| Brake Voltage | 24 VDC |
| Shaft Type | Keyed shaft |
| Mounting | IEC metric flange |
| Protection Rating | Standard enclosure (shaft seal optional) |
| Application | Industrial motion control |
Product Introduction
Allen-Bradley MPL-B540K-SJ24AA/A Overview
The Allen-Bradley MPL-B540K-SJ24AA/A servo motor is a member of the MP-Series low inertia brushless servo motor family from Rockwell Automation. It is designed for applications requiring precise speed control, accurate positioning, and fast dynamic response in industrial motion systems. The motor combines a compact mechanical design with high torque density, making it suitable for demanding automation equipment where acceleration, positioning accuracy, and repeatable movement are required.
The MPL-B540K-SJ24AA/A features a 460 VAC motor design with a 165 mm frame size, 101.6 mm magnet stack length, 5.4 kW rated output, and 4000 RPM rated speed. It uses permanent magnet synchronous motor technology and integrates a single-turn 1024 sin/cos absolute encoder using Hiperface communication for position feedback. This feedback arrangement allows compatible motion controllers and drives to accurately determine rotor position during startup and operation without requiring a separate homing procedure in many applications.
The Allen-Bradley MPL-B540K-SJ24AA/A servo motor includes a 24 VDC holding brake, which is commonly used in vertical-axis applications or machinery where load holding is required when power is removed. The keyed shaft design and IEC metric mounting flange support integration with gearboxes, couplings, and machine mechanical assemblies.
The MPL-B540K-SJ24AA/A is typically paired with Rockwell Automation Kinetix servo drives and motion controllers. Successful operation depends on correct motor-drive matching, including feedback configuration, motor identification data, drive firmware support, cable selection, and motion tuning parameters.
When replacing an existing , engineers should verify the complete motion system rather than only the motor part number. Mechanical load characteristics, inertia ratio, drive configuration, brake wiring, feedback connection, and axis tuning values should all be reviewed before returning equipment to production.

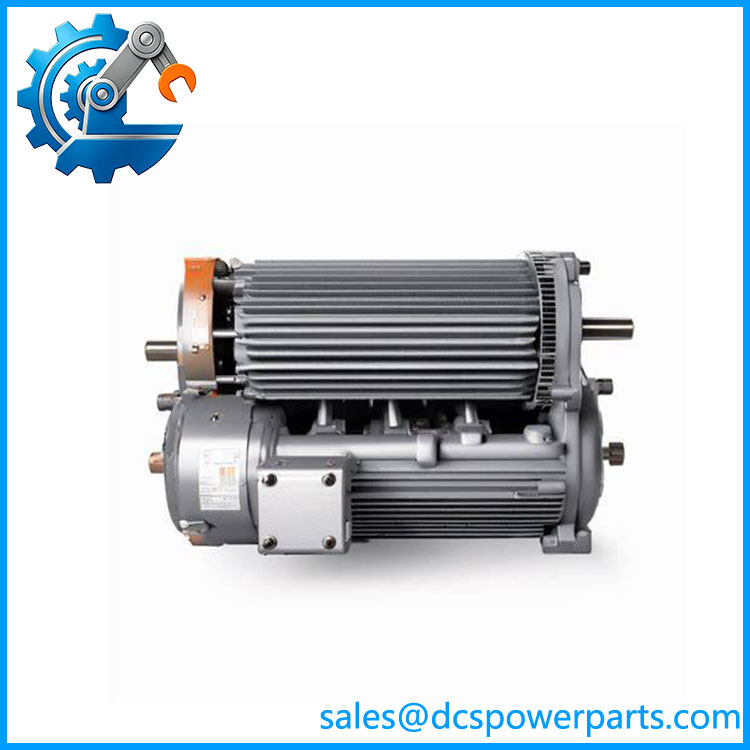

MPL-B540K-SJ24AAA
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving the include:
- Positioning accuracy errors
- Servo following errors
- Motor overheating
- Encoder communication faults
- Brake release problems
Possible causes:
- Incorrect drive configuration
- Improper axis tuning
- Excessive mechanical load
- Damaged feedback cable
- Incorrect brake voltage supply
Recommended troubleshooting steps:
- Verify motor identification parameters
- Check encoder feedback communication
- Measure brake operation voltage
- Review drive fault history
- Inspect motor cable and connectors
- Confirm mechanical coupling alignment
The servo motor is only one part of the motion control loop. Drive settings, mechanical transmission, controller commands, and feedback quality all affect final machine performance.
Typical Applications
Packaging Machinery
Used for:
- Filling equipment
- Labeling machines
- High-speed indexing systems
- Rotary positioning units
Robotics and Material Handling
Applied for:
- Pick-and-place systems
- Servo-driven mechanisms
- Automated transfer equipment
CNC and Precision Equipment
Used for:
- Axis positioning
- Feed control
- High accuracy motion applications
Manufacturing Automation
Applied for:
- Assembly machines
- Semiconductor equipment
- Production line motion systems
Technical Pitfalls to Avoid
1. Verify Drive Compatibility
Confirm:
- Kinetix drive model
- Motor feedback type
- Motor database support
- Firmware compatibility
2. Check Mechanical Matching
Verify:
- Load inertia
- Gear ratio
- Coupling condition
- Shaft alignment
3. Confirm Brake Requirements
Check:
- 24 VDC brake supply
- Brake release timing
- Vertical axis holding requirements
4. Validate Encoder Feedback
Inspect:
- Feedback cable condition
- Connector pins
- Encoder communication
- Position feedback stability
