Description
The part number MPB1-TP (often ordered or referenced as COM-MPB1-TP or part number 139850) refers to a communication module manufactured by Moeller / Eaton (Micro Innovation).
Product Overview
-
Manufacturer: Moeller / Eaton (Micro Innovation)
-
Part Number / Model: MPB1-TP (COM-MPB1-TP)
-
Component Type: Multi-Protocol Serial Communication Board / Interface Card
-
Platform: Moeller / Eaton XV400 / XV600 Series Micro Panels (HMI Operator Touch Terminals)
Key Specifications & Features
-
Physical Interfaces: Equipped to handle multiple legacy and industrial serial communication standards, including RS-232, RS-485, RS-422, and TTY configurations.
-
Multi-Protocol Support: Functions as a flexible protocol translator card, allowing the host HMI panel to communicate natively with a wide range of third-party controllers (such as Moeller Suconet K, Omron C/H/K series, Mitsubishi A/F series, Matsushita FP, and Telemecanique Unitelway).
-
Firmware & Configuration: Utilizes an onboard retentive flash memory storage system for standard and alternative drivers (like the Moeller PS40 PLC driver), which can be selected or updated using physical onboard jumper settings (
J6/J7).
Industrial Deployment
-
Applications: Integrated into industrial HMI touch panels and visualization units within manufacturing lines, factory automation cells, and machinery control rooms to link operator displays with multi-vendor PLC backbones via serial communication loops.

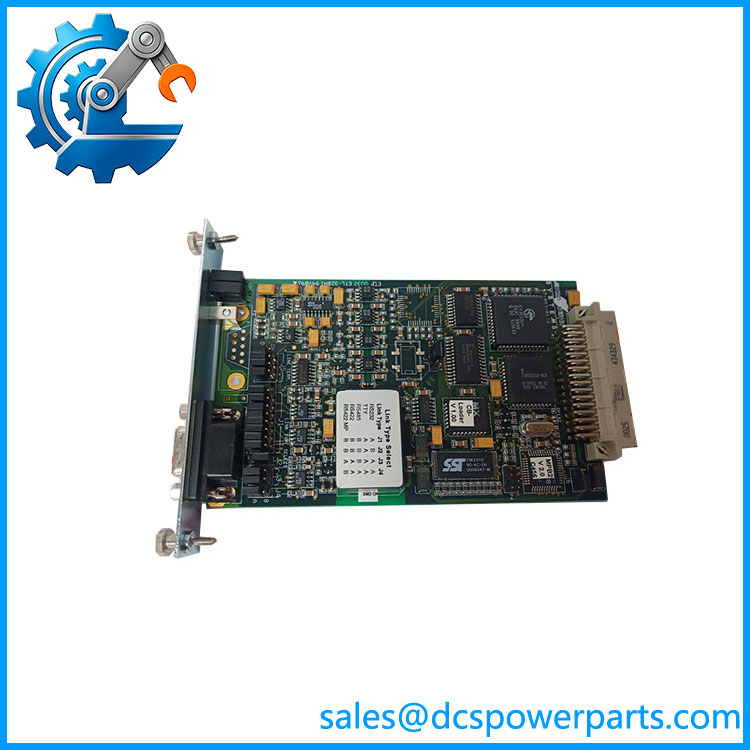

MPB1-TP
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | MPB1-TP |
| Module Type | Multi-protocol Serial Communication Board |
| Manufacturer | Micro Systems |
| Applicable Platform | ABB Advant OCS / Advant Master DCS Rack |
| Front Interface | D-Sub Serial Port (configurable RS232 / RS422 / RS485) |
| Backplane Interface | Advant internal rack bus connector |
| Supported Protocols | Modbus RTU, Suconet, Unitelway, Mitsubishi, Omron, Panasonic FP and other proprietary PLC protocols |
| Communication Rate | Up to 115.2 kbps |
| Mounting Form | Standard plug-in card for Advant controller rack |
| Power Supply | Powered via rack backplane |
| Operating Temperature | 0℃ ~ +60℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet internal installation) |
| Status Indicators | Power, Run, Transmit / Receive LED indicators |
| Spare Part Status | Original production discontinued; new surplus and refurbished modules available |
Key Features
- Multi-driver firmware design, one single board compatible with numerous mainstream PLC serial protocols
- Hardware jumper configuration to switch RS232/RS422/RS485 signal modes conveniently
- Built-in galvanic isolation circuit to suppress ground loop interference and improve communication stability
- Supports master/slave working mode to adapt diverse interconnection scenarios
- Front panel LED indicators enable straightforward on-site communication fault diagnosis
- Compact single-slot structure facilitates inspection and hot-swap maintenance within control racks
- Industrial optimized PCB layout with anti-vibration performance for long-term continuous unattended operation
- Strict full part number verification required; different firmware variants cannot be directly interchanged without adaptation
- Perfectly matched with PM665 and other Advant series processors for system expansion and retrofit
