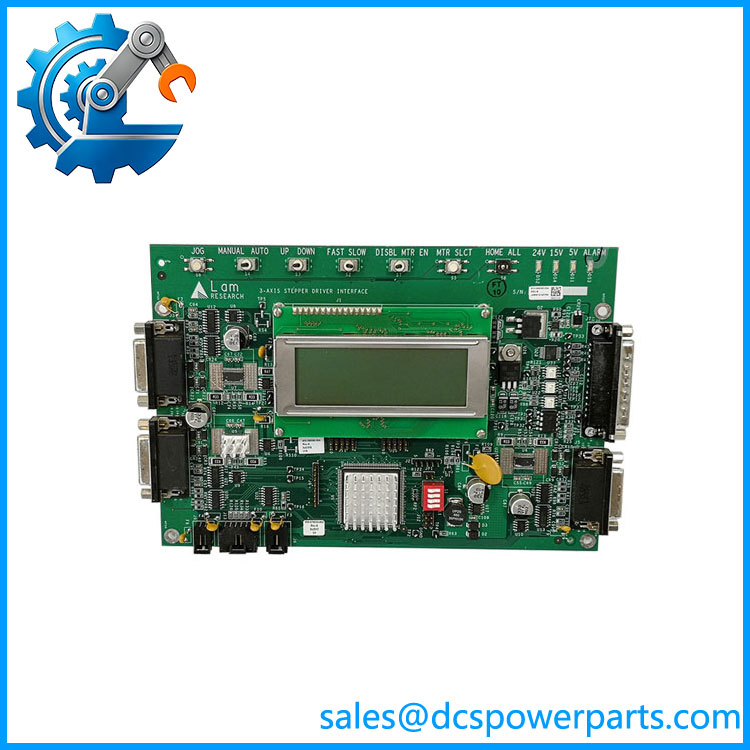

Motion-control faults in semiconductor equipment are often more complicated than a simple “motor failure.” The LAM 810-066590-004 is identified as a 3-Axis Stepper Driver Interface PCBA, placing it between the equipment control architecture and the stepper-drive hardware responsible for controlled mechanical movement. Available equipment records specifically identify the part as a 3-axis stepper driver interface and, in one configuration, associate it with an LCM-H02004DSF assembly.
The primary purpose of LAM 810-066590-004 is therefore motion-interface control rather than general process I/O. It is used in Lam Research semiconductor manufacturing equipment where multiple stepper-controlled axes require coordinated electrical signaling between the host control system and the corresponding drive hardware. A separate equipment record for 2300 Flex EX equipment lists 810-066590-004 as a “3-Axis Stepper controller driver with mounting plate and shield,” reinforcing its role in the motion-control section of the tool.
There is an important procurement distinction here. Some secondary listings describe this part as a VME backplane or generic process-control board, but other records specifically identify it as the 3-axis stepper driver interface. The latter description is better supported by multiple independent equipment-part records.
For replacement work, LAM 810-066590-004 should be matched against the actual tool configuration, connector arrangement, associated stepper drivers, and mounting assembly. Public documentation does not establish reliable universal values for input voltage, pulse frequency, current, or communication protocol, so those figures should not be treated as confirmed engineering specifications.
Product Introduction
A three-axis motion fault does not automatically mean the stepper motor or drive has failed. LAM 810-066590-004 provides the interface layer connecting three-axis stepper-drive hardware to the semiconductor-tool control system, making it a practical suspect when command or feedback paths fail.
For legacy replacement, the complete part number matters. The documented 810-066590-004 configuration can include the interface PCB, mounting plate, and shield, so procurement should confirm whether the replacement is the bare PCBA or the complete mechanical assembly.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Lam Research |
| Model / Part Number | 810-066590-004 |
| Product Type | 3-Axis Stepper Driver Interface PCBA |
| Primary Application | Semiconductor manufacturing equipment |
| Functional Area | Motion control |
| Number of Axes | 3 |
| Interface Function | Stepper-driver interface |
| Associated Hardware | LCM-H02004DSF in documented configuration |
| Assembly Configuration | PCB; some configurations include mounting plate and shield |
| Equipment Association | Lam Research 2300 Flex EX equipment is documented with this part |
| Motor Type | Stepper-motor drive system |
| Input Voltage | Not reliably confirmed from authoritative public documentation |
| Output Current | Not reliably confirmed |
| Pulse Frequency | Not reliably confirmed |
| Communication Protocol | Not reliably confirmed |
| Firmware | No independently verified firmware version established |
| Operating Temperature | Not reliably confirmed |
| Condition | New Surplus, subject to inspection and functional testing |
The three-axis interface function and association with LCM-H02004DSF are supported by equipment-part records. The 2300 Flex EX equipment listing identifies the part as a 3-axis stepper controller/driver assembly with mounting plate and shield.
810-066590-004
Related Products
- 810-801237-001 — Another Lam Research stepper-driver interface reference. It belongs to the same general motion-control category, but the different part number means connector and electrical compatibility must be verified before substitution.
- 810-801237-021 — Related stepper-driver interface hardware. Useful as a comparison when identifying the correct motion-control assembly, but not a confirmed drop-in replacement for 810-066590-004.
- 810-033620-008 — Match 3-axis stepper control PCB. It also serves three-axis motion functions but is associated with a different equipment/control application.
- 810-099175-013 — VMC 6-axis stepper indexer / VIOP Phase II reference. It handles a larger motion-axis configuration and belongs to a different control architecture.
- 810-072907-005 — Lam Research VME communication/clock-controller reference. It supports system-level communication/timing rather than directly providing the three-axis stepper interface.
- 810-046015-010 — VIOP III control board reference. It operates at the equipment I/O/control level and can be complementary to motion-interface hardware rather than serving as a direct replacement.
- 810-099175-012 — VME analog I/O board reference. Its primary role is analog signal acquisition/interface, making it functionally different from the 810-066590-004 motion board.
- 810-802205-007 — Hoist control PCB listed in the same 2300 Flex EX equipment configuration. It handles hoist motion rather than the three-axis stepper interface.
Frequently Asked Questions
What is LAM 810-066590-004 used for?
810-066590-004 is a 3-axis stepper driver interface PCBA used in Lam Research semiconductor equipment. Its job is to provide the electrical interface between the equipment’s control system and stepper-drive hardware used for controlled mechanical movement.
It should not be classified as a general-purpose PLC I/O card.
Which Lam Research equipment uses 810-066590-004?
Available equipment records specifically list 810-066590-004 among boards used in a 2300 Flex EX configuration, describing it as a 3-axis stepper controller/driver assembly with mounting plate and shield.
That does not establish compatibility with every Lam tool. The target equipment model and revision should be checked against the machine BOM.
Can I replace 810-066590-004 with 810-801237-021?
Not without engineering verification.
Both references are associated with stepper-driver interface functions, but their different part numbers indicate that they should not be presumed electrically or mechanically interchangeable. Compare:
- Equipment model.
- Connector layout.
- Axis assignment.
- Stepper-driver model.
- Board revision.
- Mounting/shield configuration.
A similar board description is not enough to authorize substitution.
Can I hot-swap the 810-066590-004?
Do not assume hot-swap capability.
This is motion-control interface hardware connected to stepper-drive circuitry. Unless the applicable Lam equipment service procedure specifically permits energized removal, isolate the equipment and associated motion-control power before removing the board.
The mechanical axes should also be secured according to the tool’s maintenance procedure.
Does 810-066590-004 support firmware v3.1?
There is no reliable public evidence establishing firmware v3.1 as a universal firmware version for this PCBA.
In this type of architecture, configuration and software dependencies may reside in the host controller and associated motion hardware rather than exclusively on the interface PCB. Verify the complete motion-control chain instead of matching a firmware number in isolation.
Will replacing 810-066590-004 erase my stepper-motor program?
The available identification describes 810-066590-004 as an interface/controller-driver PCB, not the primary machine computer or recipe-storage system.
Even so, record the existing axis configuration before replacement. In particular, preserve:
- Axis assignments
- Motion parameters
- Home/reference settings
- Travel limits
- Calibration data
- Drive configuration
- Machine configuration files
The exact storage arrangement depends on the Lam tool architecture.
How should I verify a New Surplus 810-066590-004?
For incoming inspection, I would require:
- Exact 810-066590-004 part-number marking
- PCB revision and assembly identification
- Connector condition
- Component-side photographs
- Mounting plate/shield confirmation if supplied as a complete assembly
- Evidence of functional testing
- Clear condition classification
