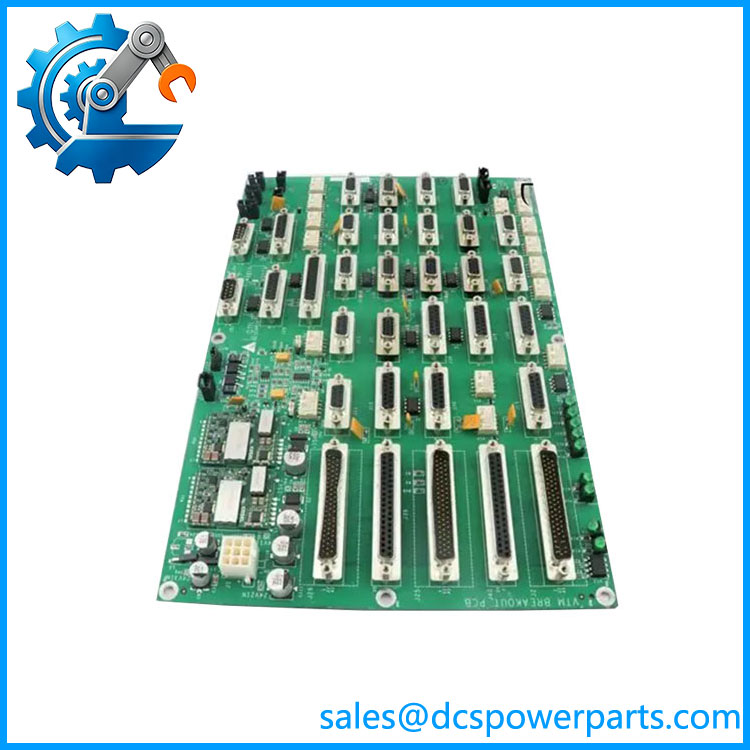

In semiconductor equipment, a VTM breakout board sits at an important boundary between the transfer mechanism and the equipment’s electrical control architecture. LAM 810-072907-005 is identified as a VTM Breakout PCB used in LAM Research semiconductor processing equipment. Available equipment-part references associate the board with the fabrication reference 710-072907-005 Rev. A, while other technical listings describe it as an interface assembly for VTM-related subsystems.
The practical role of LAM 810-072907-005 is signal routing and interface management rather than acting as a standalone PLC CPU or general-purpose controller. Within a vacuum transfer system, the board can provide organized electrical connections for transfer-module devices, sensors, actuators, and associated control circuits. That distinction matters during troubleshooting: replacing the PCB may restore a failed signal path, but it does not automatically resolve problems originating from a robot, cable harness, backplane, power supply, or higher-level control hardware. Some available technical references associate this part with VTM applications on LAM equipment families, including 2300-series and 9400-related systems, although exact machine compatibility should be confirmed from the equipment configuration and board revision.
For maintenance teams, LAM 810-072907-005 is primarily a spare-part replacement consideration for existing semiconductor fabrication equipment. LAM 810-072907-005 should be matched by complete part number and revision wherever possible. To be completely transparent, public part references do not provide enough authoritative information to establish universal voltage, current, protocol, or environmental ratings for this specific PCB, so those values should not be treated as confirmed specifications without the equipment documentation or board-level inspection.
Product Introduction
A failed VTM interface board can create symptoms that look like robot, sensor, or controller faults, making board-level identification important before replacement. LAM 810-072907-005 serves as a VTM breakout PCB within LAM Research semiconductor equipment, providing the physical interface between VTM-related field wiring and the equipment control structure.
For a DCS system upgrade or legacy replacement, this part should be treated as an equipment-specific PCB rather than a generic industrial I/O module. Part-number and revision matching are more important than applying generic electrical specifications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 810-072907-005 |
| Manufacturer | LAM Research |
| Product Type | VTM Breakout PCB / Interface Board |
| Primary Application | Vacuum Transfer Module (VTM) |
| Equipment Domain | Semiconductor Manufacturing Equipment |
| Board Assembly Reference | 710-072907-005 Rev. A |
| Functional Role | Signal breakout and electrical interface |
| System Position | VTM / equipment control interface |
| Board Format | Printed Circuit Board Assembly |
| Compatibility | LAM Research equipment configurations requiring the matching board revision |
| Operating Voltage | Not reliably confirmed from authoritative public documentation |
| Communication Protocol | Not reliably confirmed; do not assume a standard PLC protocol |
| Firmware | Not established as an independently firmware-configurable module |
| Condition | New Surplus, subject to inspection and test status |
The 710-072907-005 Rev. A board reference is specifically associated with the 810-072907-005 part number in available equipment-part records.
810-072907-005
Related Products
- 810-066590-004 — A related LAM PCB reference associated with VME/control-system hardware. It may be relevant when diagnosing communication or chassis-level problems around the VTM control architecture.
- 810-046015-010 — VIOP III board used for I/O-related functions; functionally different from the 810-072907-005 breakout interface.
- 810-069751-114 — RF/DC interface PCBA used in LAM equipment; intended for a different electrical subsystem and should not be considered a direct replacement.
- 810-800082-043 — VME breakout PCB, useful for systems using the corresponding VME architecture rather than the specific VTM breakout function.
- 810-001489-016 — Rocker valve interface PCB; supports valve-control interfacing and differs from the VTM breakout role.
- 810-068158-015 — Node/robot interface PCBA associated with equipment control and robot-related functions; application differs from the 810-072907-005 VTM breakout board.
- 810-801237-021 — Step-driver-related PCB for motion/control applications; potentially complementary at the equipment level but not a drop-in substitute.
- 605-109114-003 — CPU 7668 VxWin PCBA reference; represents a higher-level computing/control function rather than a breakout interface.
Frequently Asked Questions
What equipment uses the LAM 810-072907-005 VTM breakout PCB?
The available part references identify 810-072907-005 as a VTM Breakout PCB for LAM Research semiconductor manufacturing equipment. It is associated with Vacuum Transfer Module hardware and should be matched against the exact tool configuration before installation.
Can I use another 810-series LAM PCB as a replacement for 810-072907-005?
Not simply because the board belongs to the same 810 series.
Check these items first:
- Complete part number.
- Board revision.
- PCB assembly reference.
- Connector and mounting arrangement.
- Target equipment model and VTM configuration.
A VIOP, valve-interface, robot-interface, or VME breakout board may look functionally related while having completely different electrical assignments.
Can I hot-swap the LAM 810-072907-005?
Do not assume hot-swapping is supported. This is an equipment-specific PCB rather than a conventional hot-swappable PLC I/O module with a clearly published insertion/removal procedure.
Power down and isolate the applicable equipment according to the machine maintenance procedure before removing the board. Connector pin assignments and stored machine-state conditions should also be checked.
Does the LAM 810-072907-005 support firmware v3.1?
There is insufficient reliable public documentation to confirm a user-selectable firmware version such as v3.1 for this specific PCB. It should not be treated like a conventional PLC CPU where firmware compatibility can be checked solely by software revision.
For a replacement, compare the board revision and equipment configuration first.
Will replacing 810-072907-005 cause me to lose my control logic?
The board is identified as a VTM Breakout PCB, not as the primary application-program controller.
That means replacing the board would not normally be expected to erase the main equipment control program. The important qualification is that machine configuration, calibration data, or other system-specific information may reside elsewhere in the equipment architecture. Back up relevant machine data before maintenance whenever the equipment procedure permits it.
How can I verify that a New Surplus 810-072907-005 is authentic?
For a procurement inspection, compare:
- Full 810-072907-005 part number
- PCB assembly identification
- Revision marking
- Connector configuration
- PCB layout and component population
- Manufacturer markings
- Physical condition and evidence of previous installation
A “new surplus” label by itself does not prove that a board has never been installed. Ask for actual board photographs, identification labels, and test information rather than relying only on the seller’s condition description.
