Description
Product Features
The 853-266935-005 is a high-precision dedicated control module manufactured by LAM Research, specially optimized for advanced semiconductor wafer processing and precision industrial automation equipment. As a core signal control and logic processing component, it delivers ultra-stable operation, high-precision signal output and reliable system linkage for high-end manufacturing processes with strict precision requirements.
1. High Precision Signal Processing: Adopts industrial-grade high-resolution chip solution, supports accurate signal collection, calculation and output, effectively meets the ultra-precision control demands of semiconductor etching, deposition and other core processes.
2. Excellent Environmental Adaptability: Designed with cleanroom-grade standards, featuring low outgassing, dust-proof and anti-corrosion performance. It can operate stably in high-precision dust-free workshops and harsh industrial working environments.
3. High-speed & Stable Data Transmission: Equipped with optimized industrial bus interface, supports high-speed real-time data interaction and signal synchronization, effectively avoids data delay and signal distortion during equipment operation.
4. Intelligent Self-diagnosis Function: Built-in comprehensive fault detection and self-check mechanism, which can real-timely monitor module operating status, circuit abnormalities and signal errors, and feed back fault information to the host system in time for rapid maintenance.
5. Strong System Compatibility: Perfectly compatible with LAM series semiconductor processing equipment and supporting control systems, supports seamless system integration and parameter matching, no complex adaptation required during installation.
6. Durable Industrial-grade Design: Adopts high-strength anti-interference circuit design and optimized hardware structure, with excellent electromagnetic compatibility and vibration resistance, ensuring long-term continuous trouble-free operation.
7. Easy Maintenance & Expansion: Standard modular plug-in structure, convenient for on-site disassembly, replacement and system function expansion, effectively reducing equipment maintenance time and operating cost.

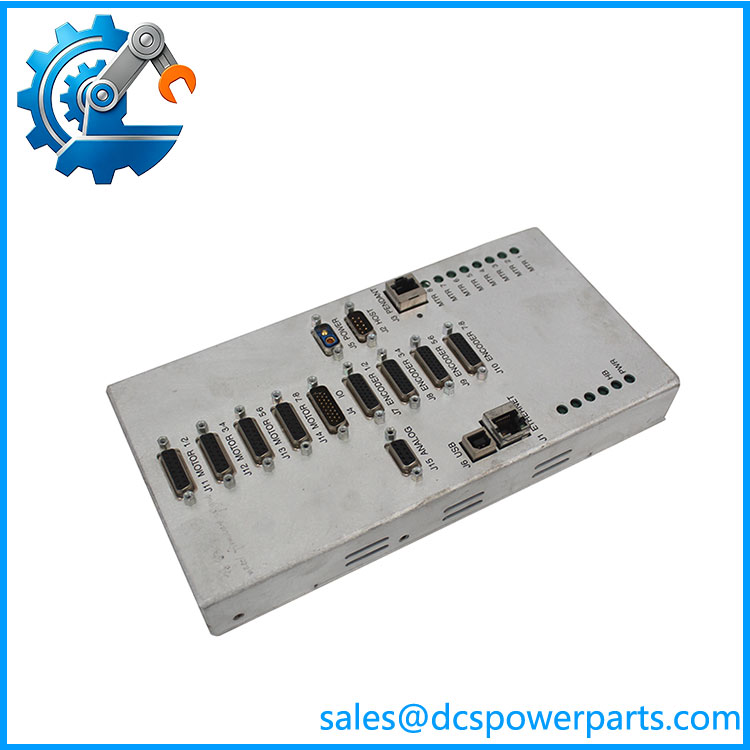

853-266935-005
Product Parameters
|
Item
|
Specification
|
|---|---|
|
Part Number
|
853-266935-005
|
|
Product Brand
|
LAM Research
|
|
Product Type
|
Semiconductor Precision Control Module
|
|
Core Application
|
Signal control, logic operation and data acquisition for semiconductor processing equipment
|
|
Operating Voltage
|
24V DC Industrial Standard Power Supply
|
|
Operating Temperature Range
|
0℃ ~ +55℃
|
|
Storage Temperature Range
|
-20℃ ~ +70℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Environmental Grade
|
Cleanroom compatible, low outgassing, anti-electromagnetic interference
|
|
Communication Mode
|
Industrial dedicated high-speed bus communication
|
|
Installation Method
|
Standard modular rack mounting
|
|
Self-diagnosis Function
|
Support real-time fault detection, status monitoring and abnormal alarm
|
|
Applicable System
|
LAM semiconductor etching and deposition equipment control system
|
Product Usage Method
1. Pre-installation Inspection: Check the appearance integrity of the 853-266935-005 module to confirm no damage, oxidation or loose components. Verify the matching of equipment rack slots and module specifications to ensure installation compatibility.
2. Static Protection Operation: Conduct installation in a dust-free and static-free working environment. Wear professional anti-static gloves and wrist straps to avoid static damage to the precision internal chips of the module.
3. Module Installation & Fixation: Power off the supporting equipment control rack, align the module with the standard slot, insert it smoothly and lock the fixing screws firmly to ensure stable connection without loose contact.
4. Circuit & Signal Wiring: Complete power supply lines, signal lines and communication bus wiring in strict accordance with the equipment wiring manual. Check the wiring sequence and tightness to avoid wrong wiring or virtual connection.
5. System Configuration & Debugging: Power on the equipment system, connect the dedicated configuration software, match the module parameters according to the equipment process requirements, set signal acquisition parameters and control logic, and complete parameter downloading.
6. Function Test Verification: Start the system self-diagnosis program, check the module communication status, signal acquisition accuracy and control output stability. Simulate working conditions to verify that all functions operate normally without abnormal alarms.
7. Formal Operation & Daily Maintenance: After debugging and testing are qualified, put the module into formal production operation. Regularly check the module operating temperature, communication status and wiring stability, clean dust regularly, and back up system configuration data to ensure long-term stable operation.
Product Application Fields
1. Semiconductor Manufacturing Industry: Mainly used in core processes such as semiconductor wafer etching, thin film deposition, ion implantation and photolithography, providing precise signal control and process logic support for wafer processing equipment.
2. High-precision Electronic Manufacturing: Applied to precision control of chip packaging, testing equipment and microelectronic processing equipment, ensuring high-precision and high-stability operation of micro-processing processes.
3. Advanced Industrial Automation: Suitable for high-end automated production lines with ultra-high precision control requirements, providing accurate signal acquisition and system linkage control for precision automation equipment.
4. Cleanroom Industrial Equipment: Widely used in dust-free workshop production and monitoring equipment in semiconductor, optoelectronics and new energy industries, adapting to high-cleanliness and high-precision industrial production scenarios.
5. New Energy Optoelectronic Industry: Used for precision control of photovoltaic cell production equipment, display panel etching and coating equipment, meeting the strict process control requirements of optoelectronic and new energy manufacturing.
