Janitza UMG 604-PRO Power Quality Analyzer

Product Overview

The Janitza UMG 604-PRO is a multifunction power-quality analyzer designed for applications where ordinary kWh measurement is not enough. It combines voltage and current measurement, active and reactive energy metering, harmonic analysis, event recording, transient detection, data logging, digital I/O, temperature measurement, and network communications in a compact DIN-rail device. Janitza specifies harmonic analysis through the 40th harmonic, with voltage and current sampling at 20 kHz per phase. The device can identify short-duration voltage events from 20 ms and record transients above 50 μs, giving engineers substantially more diagnostic information than a basic energy meter.

Within an industrial electrical monitoring architecture, the Janitza UMG 604-PRO normally sits at the measurement and power-quality layer rather than replacing a PLC CPU or DCS controller. Its Ethernet interface provides Modbus TCP/IP and gateway functions, while RS485 supports Modbus RTU master or slave operation. That makes it suitable for feeding electrical data into PLC systems, SCADA platforms, building-management systems, data-center monitoring systems, and energy-management software. The internal 128 MB memory can store approximately 5 million values, with configurable recording extending to roughly two years under suitable logging configurations.

For retrofit projects, the important point is that this device can perform local analysis instead of simply forwarding raw measurements. Users can configure recording functions, monitor load peaks, analyze harmonics, and use JASIC programming for application-specific logic. The UMG 604-PRO also provides two digital inputs, two semiconductor digital outputs, and a temperature measurement input supporting PT100, PT1000, KTY83, and KTY84 sensors.

Product Introduction — Non-Templated

A conventional energy meter may tell you how much power a facility consumed; the UMG 604-PRO is intended for the harder question of why the electrical system is behaving the way it is. Harmonics, voltage events, transients, unbalance, load peaks, and historical trends can be captured locally instead of requiring several separate monitoring instruments.

For a DCS system upgrade, MCC monitoring project, data-center power-quality installation, or industrial energy-management retrofit, its Ethernet/Modbus architecture is particularly useful. The catch is equally important: current-transformer ratios, voltage topology, supply-voltage variant, communications settings, and firmware/configuration should be verified before treating an installed or surplus unit as a direct replacement.

Key Technical Specifications

The supply-voltage range is variant-dependent. Janitza documents 230 V, 90 V, and 24 V supply options, so procurement should not rely on the model name alone when matching an installed unit.

Major Features / Practical Advantages

Power-Quality Measurement Beyond Basic Energy Metering

The UMG 604-PRO measures electrical quantities while also providing power-quality analysis. Its voltage measurement section supports a 0–600 Vrms L-N measuring range and up to 1000 Vrms L-L, with 20 kHz sampling per phase. Current inputs are designed around a 5 A nominal current and provide a 0.005–7 A measuring range. The published one-second overload capability reaches 100 A sinusoidal.

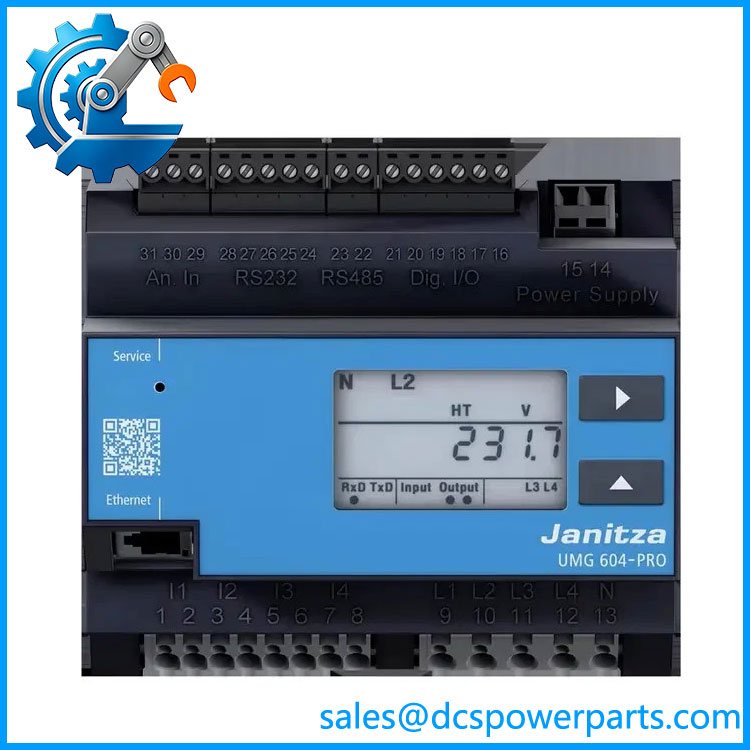

Janitza-UMG-604-PRO

Harmonics, Events, and Transients

Harmonic analysis extends through the 40th harmonic in Janitza’s current technical specification. The analyzer also calculates THD-U and THD-I and evaluates unbalance and positive, negative, and zero-sequence components. For troubleshooting, event recording covers voltage disturbances from 20 ms, while transient recording can capture events above 50 μs. That distinction matters when investigating switching events, capacitor-bank problems, drives, UPS systems, or other disturbances that a slower energy meter may never reveal.

Ethernet and Modbus Integration

The communications architecture is one of the practical strengths of the UMG 604-PRO. Ethernet provides Modbus TCP/IP and a Modbus gateway, while RS485 supports Modbus RTU master and slave operation. RS485 communication rates extend to 921.6 kbps in the documented specification. This permits multiple downstream Modbus devices to be incorporated through the gateway without forcing every instrument onto a separate Ethernet connection.

Local Data Storage

A 128 MB internal memory provides space for approximately 5 million stored values. Recording is configurable, and Janitza describes storage periods of up to about two years depending on the selected recording structure. For remote substations or electrical rooms where continuous SCADA polling cannot be guaranteed, local storage provides useful protection against gaps in historical data.

Programmable Functions

This is not simply a fixed-function meter. The UMG 604-PRO supports JASIC programming and can execute multiple programs simultaneously. That permits local calculations, monitoring logic, and application-specific functions without necessarily pushing every calculation into the PLC or SCADA layer. The engineering team should still document any custom program before replacing the device; a physically identical spare does not automatically reproduce site-specific application logic.

Field Installation Considerations

The device mounts on a 35 mm DIN rail and occupies approximately 6 horizontal pitches. Its documented operating temperature is -10°C to +55°C, with IP20 protection and no forced ventilation requirement. The voltage and current measurement inputs have CAT III overvoltage classification and a documented 4 kV measurement surge rating.

One procurement detail deserves emphasis: the UMG 604-PRO has multiple supply variants. A 24 V version cannot simply be substituted for a 230 V version because the model name is identical. Check the actual nameplate, item number, supply option, and existing wiring before approving a replacement.

Related Products

• Janitza UMG 605-PRO — Higher-capability member of the UMG PRO family, suited to installations requiring expanded power-quality functionality. It should not be treated as a parameter-for-parameter substitute without reviewing the measurement and communications requirements.
• Janitza UMG 604 — Earlier UMG family device with similar electrical-monitoring objectives. Check hardware revision and communication architecture before considering it for a retrofit.
• Janitza UMG 96RM — Compact panel-format multifunction measurement device aimed at applications where front-panel installation and a smaller form factor are more important.
• Janitza UMG 96-PQ-L — Power-quality-oriented UMG 96 family device for electrical distribution monitoring.
• Janitza UMG 509 — Power-quality measurement platform with broader analytical capabilities and a different installation/application profile.
• Janitza UMG 512-PRO — Higher-end power-quality analyzer intended for more demanding monitoring and analysis applications.
• Janitza UMG 103-CBM — Compact energy and electrical measurement device suited to distributed measurement architectures.
• Janitza UMG 20CM — Compact measurement platform for multi-circuit energy monitoring applications.

The correct substitute depends on the electrical topology, CT ratios, required power-quality functions, communication protocol, installation format, and existing GridVis/system architecture. A model number that looks similar is not enough evidence of interchangeability.

Frequently Asked Questions

Is the Janitza UMG 604-PRO a PLC or DCS I/O module?

No. It is a multifunction power-quality analyzer and energy-monitoring device. It can communicate with PLC/DCS/SCADA systems and has limited programmable logic capability, but it is not a replacement for a PLC CPU or conventional DCS I/O card.

Can I connect the UMG 604-PRO directly to a PLC?

Yes, when the PLC supports an appropriate documented communication method. Ethernet supports Modbus TCP/IP, while RS485 supports Modbus RTU. The device also provides a Modbus gateway for integrating downstream Modbus RTU devices into an Ethernet architecture.

Can I hot-swap this unit?

Do not assume hot swapping. The UMG 604-PRO is a DIN-rail electrical measurement device connected to voltage and current circuits. Replacement work requires an appropriate electrical isolation and site maintenance procedure. Current-transformer circuits in particular require proper CT secondary handling; opening an energized CT secondary can create a dangerous voltage.

Does the UMG 604-PRO support firmware v3.1?

The model number alone does not establish firmware version. Janitza publishes firmware-specific documentation and Modbus address/formulary information for particular firmware releases. For a replacement, record the installed unit’s firmware and configuration before changing hardware rather than assuming two UMG 604-PRO units have identical software behavior. Janitza currently provides documentation covering later firmware releases, including a Modbus address/formulary document for firmware 5.028 and higher.

What current transformer should be used?

The analyzer’s current inputs are based around a 5 A nominal current and a 0.005–7 A measuring range. The active-energy accuracy is specified as Class 0.5S for a ../5 A CT configuration. CT ratio, class, burden, polarity, and wiring must be selected according to the actual installation.

Does it record power-quality disturbances?

Yes. Janitza documents harmonic analysis, unbalance, THD-U/THD-I, short-term interruptions above 20 ms, and transient logging above 50 μs. The exact recording behavior depends on configuration and measurement conditions.

Can a New Surplus UMG 604-PRO be treated as a direct replacement?

Only after checking the configuration. Confirm the exact Janitza item number, supply-voltage variant, hardware revision, firmware, CT settings, voltage topology, communication settings, and any JASIC application programs. The same UMG 604-PRO model name covers different supply configurations, which is enough reason to verify the nameplate before purchase.

Procurement Note

For a Janitza UMG 604-PRO replacement, the most important procurement data are not just the model number. Request a clear photograph of the nameplate and verify the item number, supply-voltage variant, hardware revision, firmware/configuration, CT ratio, communications configuration, and physical terminal condition.

For an operating installation, preserve the existing configuration before removal whenever possible. Pay particular attention to CT polarity and ratio settings, voltage wiring, Modbus addressing, Ethernet configuration, and JASIC programs. A replacement that powers up and communicates is not necessarily a functionally equivalent replacement if those parameters differ.

Janitza’s current documentation confirms multiple UMG 604-PRO supply variants and extensive communication functionality, so a procurement specification should identify the complete installed configuration rather than simply stating “UMG 604-PRO.”
