Description
IS420YDOAS1B GE Mark VIeS Discrete Output I/O Pack
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IS420YDOAS1B |
| Functional Acronym | YDOA |
| System | GE Mark VIe / Mark VIeS |
| Module Type | Discrete Output I/O Pack |
| Output Function | Relay/contact discrete output |
| Relay/Coil Monitoring | 12 relay/coil monitoring channels |
| Redundancy | Simplex or TMR, depending on terminal board |
| Processor Board | BPPC |
| I/O Pack Response Time | Approx. 6 ms |
| DC Control Power | 24/28 VDC |
| Maximum I/O Pack Power | 19.8 W for the documented TRLYS1B configuration |
| Network Interface | Ethernet I/O network |
| Construction | Aluminum enclosure |
| Safety Rating | IEC 61508 |
| Ambient Operating Temperature | -40 to +70°C |
| Storage Temperature | -40 to +85°C |
| Mounting | Terminal-board assembly / DIN-rail-mounted terminal board |
| Compatible Terminal Boards | IS410TRLYS1B, IS410TRLYS1D, IS410TRLYS1F, IS410TRLYS2F |
GE’s Mark VIeS documentation specifies the IS420YDOAS1B as the I/O pack used with the TRLY relay-output terminal boards. The terminal-board selection determines the actual relay arrangement, contact ratings, monitoring functions, and redundancy architecture.
For the IS410TRLYS1B configuration, GE specifies 12 Form-C relay outputs, with contact ratings of up to 8 A at 24 VAC/DC, 1.2 A at 48 VDC, 0.6 A at 125 VDC, and 3 A at 120/240 VAC. These ratings belong to the terminal-board/output assembly rather than being generic ratings for the YDOA pack by itself.
Product Introduction
The GE IS420YDOAS1B is the YDOA discrete output I/O pack used in GE Mark VIeS functional-safety architectures. Its job is to interface the Mark VIe control network with compatible relay-output terminal boards, allowing control logic to operate field relays and other discrete actuators. The pack provides health diagnostics and receives terminal-board feedback for output supervision.
The hardware supports both simplex and TMR arrangements, depending on the selected TRLY terminal board. For TMR installations, three YDOA packs are used with the appropriate terminal-board configuration. GE documentation also identifies the pack as IEC 61508 safety-rated hardware intended for Mark VIeS functional-safety applications.

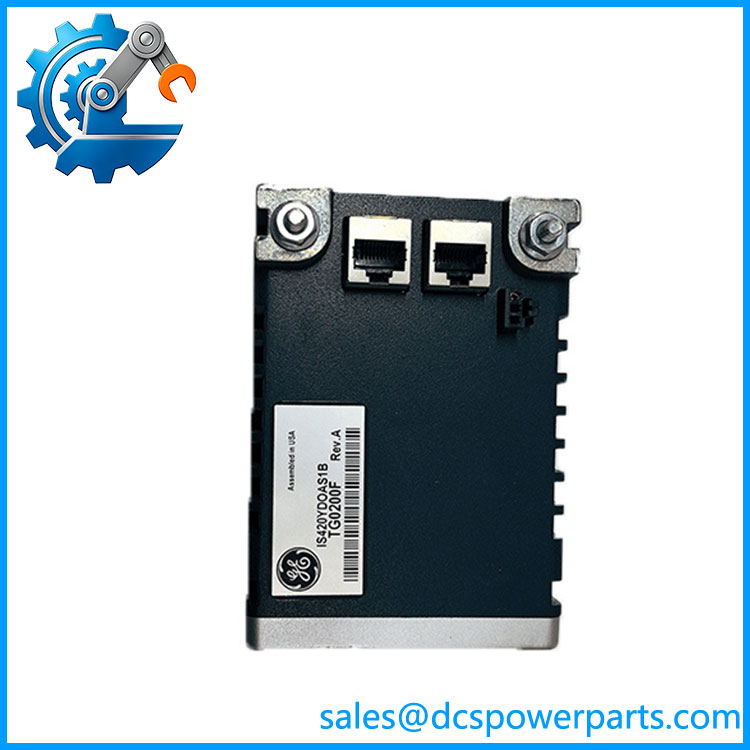

IS420YDOAS1B
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The IS420YDOAS1B is typically encountered in gas, steam, and other turbine control applications where discrete relay outputs are part of the Mark VIe/Mark VIeS control and protection architecture. Typical field duties include relay actuation, solenoid control, contactor commands, shutdown-related discrete signals, and alarm/control outputs. The exact field function depends on the TRLY terminal board and the application configuration.
Common Applications
- Turbine control: Relay-based commands for turbine auxiliary equipment and control devices.
- Functional safety systems: Mark VIeS safety-related discrete output circuits.
- Solenoid and actuator control: Applicable TRLY configurations provide dedicated output arrangements for field solenoids.
- TMR turbine protection/control: Three YDOA packs can be used with the TMR relay-output terminal-board architecture.
Field Pitfalls
1. Do not treat the YDOA as a standalone 12-channel transistor output card.
The IS420YDOAS1B is part of a two-part output architecture: the I/O pack plus a compatible relay terminal board. The terminal board determines the relay/contact arrangement and field-side electrical characteristics.
2. Terminal-board compatibility matters.
IS410TRLYS1B, TRLYS1D, TRLYS1F, and TRLYS2F do not provide identical functions. For example, the S1D version adds solenoid-integrity sensing, while S1F/S2F provide TMR-voted relay contacts. A YDOA replacement should therefore be checked against the complete installed assembly, not just the pack part number.
3. Do not substitute based only on the suffix or physical appearance.
Before commissioning, verify the I/O pack revision, terminal-board model, Simplex/TMR architecture, output load, contact-wetting arrangement, controller configuration, and installed Mark VIeS hardware baseline.
Related Products
- IS410TRLYS1B — Relay-output terminal board with 12 Form-C relay outputs; used with the .
- IS410TRLYS1D — Relay-output terminal board with solenoid integrity sensing; different field monitoring function from S1B.
- IS410TRLYS1F — TMR contact-voting relay-output terminal board.
- IS410TRLYS2F — TMR relay-output configuration using normally closed contacts.
- IS420YDIAS1B — Mark VIeS discrete input I/O pack; input rather than output function.
- IS420YAICS1B — Mark VIeS analog input I/O pack; used for analog signal acquisition rather than relay output.
- IS420PPDAH1B — Mark VIe power-distribution feedback I/O pack; different Mark VIe function and architecture.
- IS420UCSCS2A-B-V0.1-A — Mark VIe controller hardware; substantially different from the YDOA field I/O layer.
Procurement Note
For a replacement quotation, specify + the exact IS410TRLY terminal-board model + installed Mark VIe/Mark VIeS architecture. For TMR systems, confirm whether the application requires three I/O packs. Do not approve a substitution solely because another YDOA unit has the same physical dimensions or functional abbreviation.
⚠️ Engineering verification: Confirm the complete terminal-board assembly, hardware revision, controller configuration, output load, and safety-system configuration against the site documentation before installation.
