GE IS210BPPCH1AEC Product Description
Product Overview
GE IS210BPPCH1AEC is a BPPC I/O Pack Processor Board used in the GE Mark VIe turbine control system. It is part of GE’s Mark VIe distributed I/O architecture and functions as the processor/interface board for compatible I/O pack assemblies. GE’s Mark VIe architecture uses distributed I/O connected through an Ethernet-based I/O network, supporting scalable Simplex, Dual, and TMR control configurations.
The BPPC represents an updated generation of the earlier BPPB I/O-pack processor. Technical references identify BPPC-based packs as being used with ControlST V04.04 or later and distinguish them from Mark VIeS safety-system hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS210BPPCH1AEC |
| Functional Acronym | BPPC |
| Product Type | I/O Pack Processor Board |
| Control Platform | Mark VIe |
| Assembly Type | IS210 Special Assembly |
| PCB Design | Double-sided SMT |
| I/O Architecture | Distributed Mark VIe I/O |
| Communication | Ethernet-based I/O network |
| Application | Turbine and balance-of-plant control |
| Typical Systems | Gas, steam and wind turbine control |
| Safety System | Not a Mark VIeS safety pack |
The exact IS210BPPCH1AEC part number is listed by GE-related equipment suppliers as an I/O Pack Processor Board, while GE’s official Mark VIe documentation confirms the distributed Ethernet-based I/O architecture.
Main Features
BPPC I/O Pack Processor
The IS210BPPCH1AEC provides the processing function for compatible Mark VIe I/O packs. The BPPC family is an upgraded successor to the earlier BPPB architecture and supports newer Mark VIe system configurations.
Mark VIe Distributed I/O
GE Mark VIe uses a distributed architecture in which I/O processing is located close to field interfaces and communicates with the controller over an Ethernet-based I/O network. This reduces wiring and allows the control system to scale from simple to redundant configurations.
Dual/Redundant System Compatibility
BPPC-based I/O packs can be used in Simplex, Dual and TMR Mark VIe architectures, depending on the associated I/O pack and system configuration. Technical references also indicate compatibility between BPPC and certain earlier BPPB-based I/O packs in TMR applications.

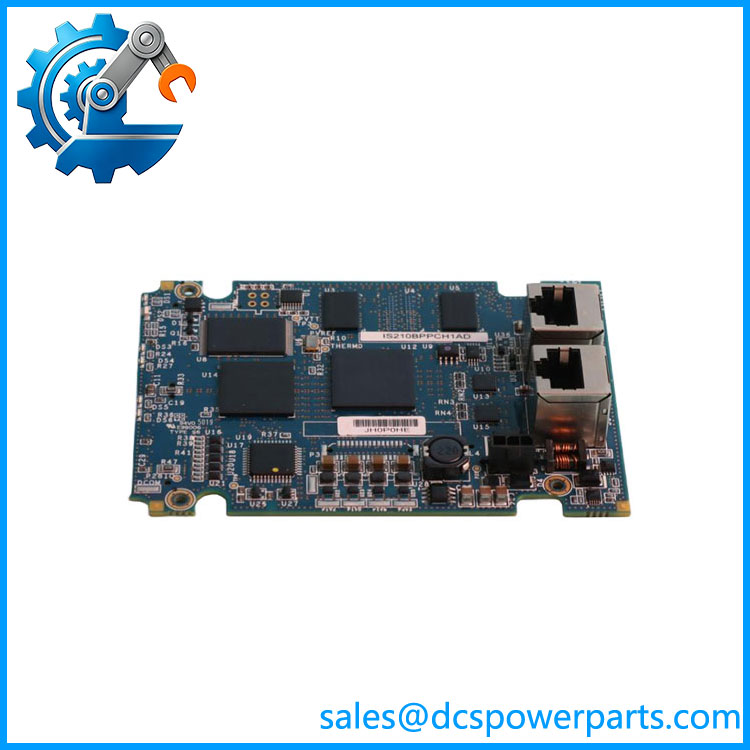

IS210BPPCH1AEC
Surface-Mount Construction
The IS210BPPCH1AEC is a compact double-sided SMT PCB, with components mounted on both sides. This construction allows the processor electronics to fit within the Mark VIe I/O-pack assembly.
Firmware and ControlST Compatibility
BPPC I/O packs were introduced as an upgrade to BPPB-based packs. Available technical documentation associates BPPC hardware with newer ControlST releases, making software/firmware compatibility an important consideration when replacing this board.
Application Fields
Gas Turbine Control
The board can be used within Mark VIe I/O packs for gas turbine monitoring and control, providing the processing and communication infrastructure between field I/O and the Mark VIe controller.
Steam Turbine Control
It is also applicable to Mark VIe steam-turbine control architectures where distributed I/O is required for monitoring and controlling turbine auxiliaries and process equipment.
Wind Turbine Control
GE’s Mark VIe platform supports wind-turbine control applications, making BPPC-based I/O hardware relevant to renewable-energy installations as well.
Balance-of-Plant Control
Mark VIe is also used for BOP applications, including auxiliary systems such as water treatment, electrical equipment and other plant utilities. GE describes Mark VIe as a common control platform across turbine-generator and balance-of-plant applications.
Compatibility and Replacement Notes
The IS210BPPCH1AEC should not be selected solely by matching the BPPC acronym. Before replacement, verify:
- Exact board part number: IS210BPPCH1AEC
- Associated IS220 I/O pack
- Mark VIe vs. Mark VIeS system
- ControlST/ToolboxST software version
- Firmware revision
- Simplex, Dual or TMR architecture
- Terminal-board and I/O-pack compatibility
A particularly important point is that BPPC boards are associated with Mark VIe, while Mark VIeS safety-system I/O packs use different hardware identification. Technical references explicitly state that BPPC boards are not designed for Mark VIeS systems.
