Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IS200TPROH1BBB |
| Manufacturer | General Electric (GE) |
| Series | Mark VI Speedtronic |
| Functional Acronym | TPRO |
| Product Type | Protective Termination Board |
| Primary Function | Emergency protection signal termination |
| Application | Turbine emergency overspeed and protection system |
| Compatible Module | VPRO Turbine Protection Board |
| System Configuration | Simplex / Triple Modular Redundant protection architectures |
| Field Interface | Speed signals, temperature signals, generator voltage, bus voltage |
| Terminal Blocks | Two barrier-style terminal blocks |
| PCB Type | Printed Circuit Board Assembly |
| Mounting | Mark VI control cabinet installation |
| Typical Equipment | Gas turbines, steam turbines, generator protection systems |
Application Scenarios & Pain Points
Emergency protection circuits are designed for the moments when normal control functions are no longer enough. A turbine may operate normally for years, yet a single failed termination path can compromise trip availability during a critical event.
Typical applications:
- Gas Turbine Protection: Used to terminate and condition signals associated with emergency overspeed protection, turbine trip logic, and generator protection inputs.
- Steam Turbine Systems: Supports independent protection paths where speed and voltage monitoring signals must reach dedicated protection processors.
- Power Generation Facilities: Installed in Mark VI turbine control cabinets as part of emergency shutdown and protection architectures.
- Turbine Upgrade Projects: Used when maintaining existing Mark VI systems while replacing aging protection hardware.
Field note: A generating station experienced intermittent emergency protection diagnostic alarms without actual overspeed conditions. Inspection found unstable signal termination rather than a failed VPRO module. After replacing the TPRO board and checking field wiring torque, the protection system returned to normal operation.

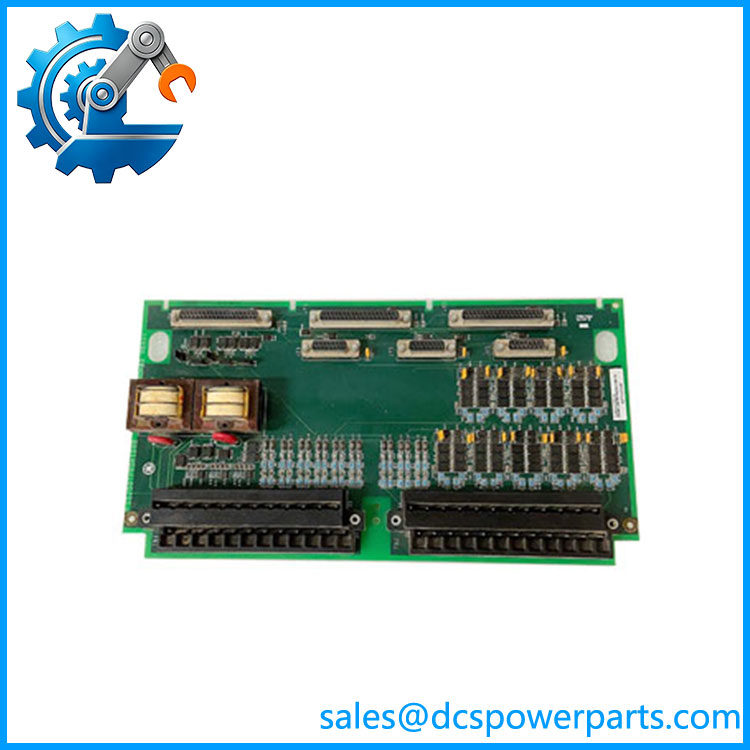

IS200TPROH1BBB
Related Products
- GE IS200TPROH1B — Base TPRO protective termination board family. The BBB suffix identifies a specific revision level and should be matched before replacement.
- GE IS200VPROH1B — VPRO turbine protection board. Receives processed protection signals from TPRO and performs emergency protection logic functions.
- GE IS200TREGH1B — Emergency trip relay terminal board. Works with VPRO systems for trip solenoid control circuits.
- GE IS200TRPGH1B — Trip relay protection interface board used within Mark VI emergency trip arrangements.
- GE IS200TVBAH2A — Mark VI terminal board for turbine control signal interface applications.
- GE IS200TBAIH1CCC — Analog terminal board used for Mark VI field signal termination and acquisition.
- GE IS200TBCIH1B — Contact input terminal board used for discrete field signal interfaces.
- GE IS200DSPXH1B — Mark VI processor interface board supporting control system processing functions.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Mixing TPRO and Standard Termination Boards
The TPRO board belongs to the emergency protection path. It is not interchangeable with general Mark VI terminal boards.
How to avoid: Confirm the installed board name, VPRO connection arrangement, and cabinet wiring drawings before replacement.
⚠️ Incorrect Trip Circuit Wiring
Emergency trip circuits are sensitive to wiring mistakes. A single misplaced conductor can prevent a valid shutdown signal from reaching the protection system.
How to avoid: Photograph terminal positions, label every conductor, and verify continuity before energizing.
⚠️ Ignoring Board Revision Differences
GE Mark VI boards often share similar physical layouts while having different hardware revisions.
How to avoid: Match the complete part number: IS200TPROH1BBB, including functional, hardware, and coating revisions.
Frequently Asked Questions (FAQ)
What is the GE IS200TPROH1BBB used for?
The IS200TPROH1BBB is a TPRO protective termination board used in GE Mark VI turbine control systems. It provides the interface between emergency protection field signals and VPRO protection modules.
Is the IS200TPROH1BBB a processor board?
No. It does not execute turbine control logic. Its role is signal termination, conditioning, and connection within the turbine protection system.
What signals connect to the TPRO board?
Typical signals include:
- Speed pickup inputs
- Temperature-related protection signals
- Generator voltage inputs
- Bus voltage inputs
Can IS200TPROH1BBB replace another Mark VI terminal board?
Not directly. Compatibility depends on:
- VPRO protection configuration
- Terminal wiring
- Cabinet design
- Board revision
- Protection scheme documentation
Why would an replacement fail after installation?
Common causes include:
- Incorrect terminal wiring
- Wrong board revision
- Damaged field cables
- Faulty VPRO interface
- Missing protection configuration checks
Does the require software configuration?
The board itself does not contain turbine application logic. However, the connected protection system configuration and wiring must match the installed Mark VI design.
Is a refurbished GE suitable for turbine service?
A tested refurbished unit can be suitable when terminal integrity, relay components, signal paths, PCB condition, and compatibility with the existing Mark VI protection architecture are verified before installation.
