Description
ICS Triplex T8312-4 | Trusted TMR Expander Interface Adapter | Four-Chassis Connection
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | T8312-4 |
| Product Type | Trusted TMR Expander Interface Adapter Unit |
| Manufacturer | ICS Triplex / Rockwell Automation |
| System | Trusted 8000 |
| Function | Controller-to-expander chassis interconnection |
| Expander Capacity | Up to 4 Expander Chassis |
| ODU Connectors | 4 × 12-pin |
| Internal Connector | 96-way Type C connector |
| Construction | PCB within shielded metal enclosure |
| Mounting | Controller Chassis rear connectors |
| Architecture | Trusted TMR |
The T8312 assembly consists of the adapter PCB, four or seven 12-pin ODU connectors depending on variant, and a 96-way Type C connector that mates with the connector assembly associated with the Trusted Expander Interface Modules. The unit is housed in a metal enclosure and clips onto the rear connectors of the Controller Chassis.
Product Introduction
The ICS Triplex T8312-4 is a passive interface assembly within the Trusted TMR architecture. Its job is physical and electrical interconnection: it links the Expander Interface Modules installed in the Trusted Controller Chassis with up to four downstream Trusted Expander Chassis. It is therefore not a conventional PLC CPU, digital input card, or digital output module.
For maintenance and procurement teams, that distinction matters. A T8312-4 failure or damaged connector assembly can interrupt communication with an entire group of expander chassis even though the active controller and I/O modules remain functional. Matching the correct four-chassis adapter is important when maintaining an existing Trusted installation.

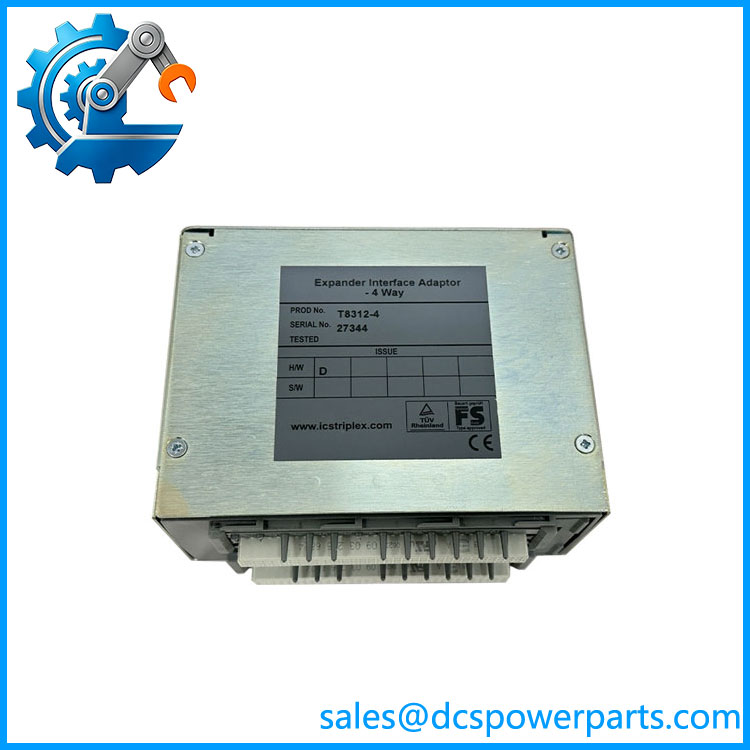

T8312-4
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a Trusted system uses distributed Expander Chassis, the interconnection hardware becomes part of the control-system communication path. A damaged connector, poor mechanical engagement, or incorrect adapter variant can look like an expander-interface or system communication fault rather than an obvious hardware failure.
Typical Applications
- Trusted TMR safety systems — controller-to-expander chassis interconnection.
- Distributed Trusted I/O installations — connecting the main Controller Chassis with multiple Expander Chassis.
- Legacy safety-system maintenance — replacement of damaged or unavailable interface assemblies.
- System cabinet refurbishment — maintaining existing Trusted 8000 hardware during planned shutdowns.
Technical Pitfalls
- Do not confuse T8312-4 with -7.
The suffix identifies the number of expander-chassis connections: -4 supports four, while -7 supports seven. - It is an interface adapter, not an I/O module.
Some secondary listings incorrectly classie as a digital output or I/O module. The Rockwell documentation identifies it as an Expander Interface Adapter Unit. - Inspect the rear chassis connectors during replacement.
The adapter clips directly onto the Controller Chassis rear connector assembly. Mechanical alignment and connector condition should be checked before installation. - Check the associated T8311 modules.
The interfaces with the Trusted Expander Interface Modules installed in the Controller Chassis. A suspected problem should therefore be diagnosed together with the corresponding interface modules and expander-side hardware. - Do not substitute based on physical appearance alone.
e a312-7 have similar construction but different connector counts and system capacity. The installed cabinet design should determine the required variant. - Avoid treating the adapter as a standalone active controller.
e does not replace the Trusted processor, Expander Interface Module, or Expander Processor. It provides the interconnection between those system elements.
Related Products
- ICS Triplex -7 — seven-chassis version of the Expander Interface Adapter Unit.
- ICS Triplex T8311 — Trusted TMR Expander Interface Module located in the Controller Chassis.
- ICS Triplex T8310 — Trusted Expander Processor associated with the Expander Chassis architecture.
- ICS Triplex T8300 — Trusted Expander Chassis.
- ICS Triplex T8100 — Trusted TMR Controller Chassis.
- ICS Triplex T8110B — Trusted TMR Main Processor.
- ICS Triplex T8121 — Trusted TMR Processor Interface Adapter.
- ICS Triplex T8314 — Trusted Fiber Optic TX/RX Unit.
- ICS Triplex T8153 — Trusted Communication Interface Adapter.
Procurement Note
For , verify the complete part marking and count the physical expander connections before ordering. The four-connector configuration is the defining difference from -7. Rockwell’s certification documentation also identifies , with “x” equal to 4 or 7, as the Trusted Expander Interface Adapter family.
For an installed safety system, I would also record the Controller Chassis model, T8311 configuration, number of T8300 Expander Chassis, connector condition, and any available system documentation before approving a replacement.
