Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | FS-SDIL-1608 |
| System | Safety Manager / FSC |
| Module Type | Safe line-monitored digital input |
| Number of Inputs | 16 |
| Input Standard | DIN 19234 / NAMUR |
| Switch Level | 1.4–1.9 mA |
| Hysteresis | 0.2 mA ±0.05 mA |
| Input Filter | First-order low-pass, 100 Hz |
| Maximum Field-Wire Resistance | 50 Ω |
| Loop Supply Voltage | 7.9–8.7 VDC |
| Loop Supply Current | 170 mA, short-circuit protected |
| Maximum Load Capacitance | 100 nF |
| Earth-Fault Monitoring | Yes |
| Power Requirement | 5 VDC, 160 mA; 24 VDC, 110 mA |
| Module Width | 4 TE / 4 HP |
| Module Height | 3 HE / 3U |
| Approvals | CE, TÜV, UL, CSA, FM |
These specifications come from Honeywell’s hardware reference; importantly, the input characteristics are specified in combination with the BN-1608 interface. That relationship should be preserved when evaluating a replacement or modifying field wiring.
Product Introduction
The Honeywell FS-SDIL-1608 is a 16-channel safety digital input module for Honeywell Safety Manager systems. Its primary role is acquisition and supervision of discrete safety signals while monitoring the integrity of the field circuit. The module supports DIN 19234/NAMUR input devices and provides earth-fault monitoring rather than functioning as a conventional non-safety PLC digital-input card.
The line-monitoring function is the important engineering feature. The module uses an 8 V field loop supply and defined current thresholds to distinguish the operating state of the connected input circuit, while additional diagnostics monitor field wiring faults. Honeywell documentation lists the FS-SDIL-1608 within the Safety Manager input-module family, alongside standard safe digital-input and analog-input modules.

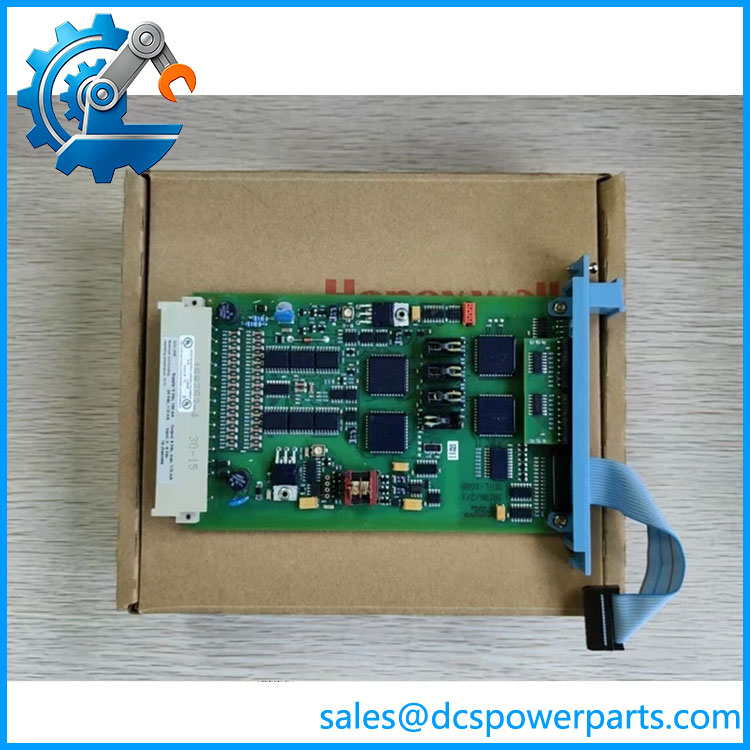

FS-SDIL-1608
Engineering Pain Point
The most common replacement error is treating FS-SDIL-1608 as a generic 16-channel 24 VDC digital input card. It is not. The input circuit is designed around the Safety Manager architecture, NAMUR/DIN 19234 characteristics, line supervision, and the associated BN-1608 interface. Substituting a standard DI module can remove the diagnostic behavior that the safety application depends on.
Typical Applications
- Emergency shutdown systems: Monitoring safety switches, pushbuttons, and other discrete shutdown inputs.
- Fire and gas systems: Acquisition of supervised discrete detector or switch signals.
- NAMUR proximity devices: Processing DIN 19234-compatible sensor signals through the specified interface.
- Safety Manager / FSC architectures: Dedicated safety input acquisition where field-loop supervision is required.
Technical Pitfalls to Avoid
- Do not treat it as a standard 24 VDC DI.
The documented input interface is based on DIN 19234/NAMUR characteristics, with a 1.4–1.9 mA switching level. - Verify the BN-1608 interface.
Honeywell explicitly states that the listed input specifications apply in combination with BN-1608. Check the installed interface and field termination before replacing the module. - Preserve line-monitoring components.
Removing or changing field resistors, sensor wiring, or termination arrangements can change the current seen by the SDIL input and create fault indications or incorrect signal states. - Check the hardware revision.
TÜV records identify multiple FS-SDIL-1608 revisions, including V1.0 and V1.1. For a safety-system replacement, match the installed revision and approved configuration rather than assuming every revision is interchangeable. - Do not confuse FS, FC, and FA variants.
Honeywell documentation lists FS-SDIL-1608, FC-, and FA- as related variants. The FC version is conformal coated, while the FA version is intended for specific hazardous-area applications. - Treat the safety configuration as part of the replacement.
Hardware compatibility alone does not establish functional equivalence in a safety system. Verify the installed Safety Manager configuration, I/O allocation, application logic, proof-test requirements, and certification basis before returning the channel to service.
Related Products
- Honeywell BN-1608 — Associated interface used with the input module; critical to the input-circuit specification.
- Honeywell FC- — Conformal-coated version of the family.
- Honeywell FA- — Variant intended for specified hazardous-area applications.
- Honeywell SDI-1624 — 16-channel safe digital input module for 24 VDC applications; different input architecture from .
- Honeywell SDI-1648 — 16-channel safe digital input module for 48 VDC applications.
- Honeywell SAI-0410 — Four-channel safe analog input module within the Safety Manager input family.
- Honeywell SAI-1620m — 16-channel high-density safe analog input module.
Procurement note: For , specify the complete model together with the installed hardware revision, BN-1608 interface, Safety Manager/FSC rack configuration, and field-device type. For a safety-system spare, matching the electrical function is only one part of the verification; the approved hardware revision and installed safety architecture also need to agree.
