HIMA Z7138 Product Page
Product Introduction

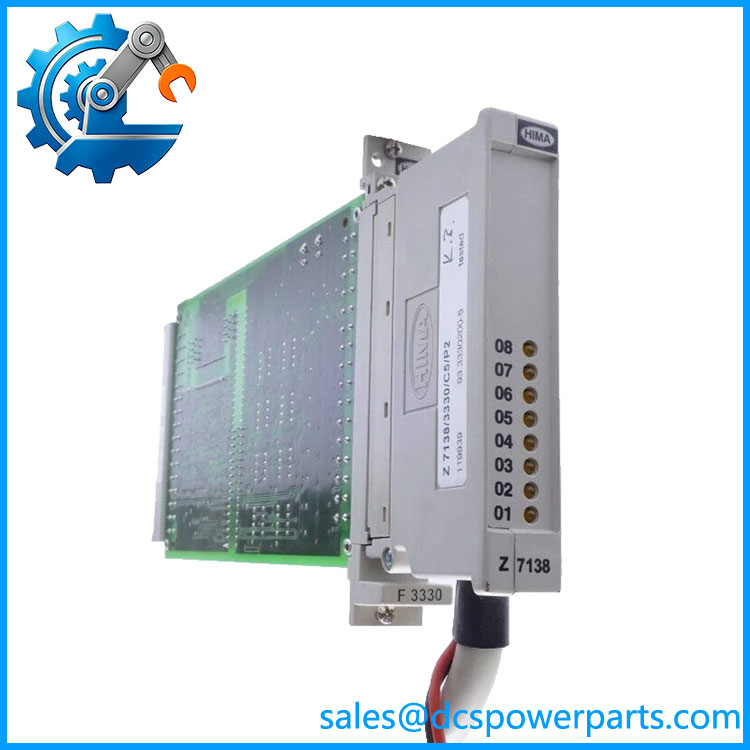

When an established safety PLC installation develops a failed output channel, the difficult part is rarely the logic itself—the real problem is maintaining the original field interface without disturbing validated wiring and shutdown logic. The HIMA Z7138 is an eight-channel digital output module intended to drive field-side loads from a HIMA safety control system. Available technical references identify 500 mA output capability per channel and protection-related parameters such as undervoltage and short-circuit behavior.
For maintenance teams supporting older HIMA installations, the Z7138 is primarily a replacement and lifecycle-management component rather than a general-purpose PLC output card. That distinction matters: channel count alone is not enough to establish interchangeability. Verify the exact module designation, rack position, wiring arrangement, field voltage, and associated terminal/cable assembly before replacing it. The related Z7138/3330 variants are documented as cable-plug assemblies for the F3330 output module, so the base Z7138 and its cable variants should not be treated as the same item.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | HIMA Z7138 |
| Product Type | Digital output module |
| Output Channels | 8 |
| Nominal Field Voltage | 24 VDC |
| Output Current | Up to 500 mA per channel |
| Internal Voltage Drop | Max. 2 V at 500 mA load |
| Undervoltage Tripping | Approximately ≤16 V |
| Short-Circuit Current | Approximately 0.75–1.5 A |
| Output Leakage Current | Max. 350 µA |
| Reset Output Voltage | Max. 1.5 V |
| Test Signal Duration | Max. 200 µs |
| Space Requirement | 4 TE |
| 5 VDC Operating Current | Approximately 110 mA |
| 24 VDC Operating Current | Approximately 180 mA, excluding additional load |
| Associated Module | F3330 |
| Related Cable Assembly | /3330 variants |
| System Application | HIMA safety-control / PLC systems |
The electrical values above are drawn from available technical listings for the . Exact behavior should be confirmed against the installed system documentation because legacy HIMA hardware was supplied in multiple configurations and later listings sometimes mix the module with its cable-plug assemblies.
Application Scenarios & Pain Points
A common maintenance problem with legacy safety PLCs is replacing one output without accidentally changing the field interface. The is relevant where the existing control architecture already depends on its eight-channel digital output arrangement.
- Safety control panels: Used where discrete output commands must be passed from the HIMA controller to field-side devices.
- Emergency shutdown circuits: Suitable for established safety-system architectures where replacement hardware must match the original channel and wiring configuration.
- Process-control actuators: Digital outputs can be used for compatible relays, solenoids, contactors, and other discrete loads within the specified electrical limits.
- Legacy system maintenance: Particularly relevant when a plant needs to keep an existing HIMA installation operational rather than redesigning the entire safety I/O structure.
Field note: Do not approve a replacement simply because the label says “.” I would first compare the complete part marking, rack location, cable arrangement, and mating connector. HIMA documentation and aftermarket records also associate with the F3330 output system, while /3330/C5 is specifically identified as a five-meter, two-pole cable-plug assembly.
Z7138
Related Products
- HIMA F3330 — The associated 8-channel safety-related output module; cable assemblies are documented in connection with this module.
- HIMA /3330/C5 — Cable-plug assembly associated with F3330, with a wired 5 m cable and two-pole connection.
- HIMA /3330/C8/P2 — Related wired cable-plug configuration using a different connection variant.
- HIMA /3330/C5/P2 — Alternative cable configuration for the F3330 interface.
- HIMA /3330/C6/P2 — Another connector/cable variant; the suffix is important when matching existing field wiring.
- HIMA F3236 — Related safety I/O module family component used for digital input applications; not a direct output replacement.
- HIMA Z7116/3236 — Cable-plug family associated with the F3236 input arrangement rather than the / output path.
- HIMA F3237 — Eight-channel safety-related input module; useful as a functional counterpart when reviewing the complete I/O architecture.
The critical procurement point is that , , and /3330 cable variants are not interchangeable descriptions. The suffixes identify different physical connection arrangements, so the complete part number should be matched before ordering.
Engineer’s Guide — Field Pitfalls to Avoid
Pitfall 1: Treating as a generic 24 VDC output card
The eight-channel count is not sufficient for substitution. Output current, protection behavior, rack interface, safety architecture, and field wiring all matter.
Avoidance: Compare the original module marking and system documentation before selecting an alternative.
Pitfall 2: Confusing with /3330 cable assemblies
This is an easy purchasing mistake. /3330/C5 is documented as a cable-plug assembly for the , not simply another electrical revision of the module.
Avoidance: Put the complete suffix in the purchase specification whenever the cable or connector assembly is involved.
Pitfall 3: Ignoring load current
The available technical data lists up to 500 mA per output and a maximum internal voltage drop of 2 V at that load. A field load that exceeds the intended electrical range can create nuisance trips or premature output-stage failure.
Avoidance: Measure the actual field load, especially where solenoids, contactors, or inductive devices are connected.
Pitfall 4: Assuming inventory condition from the part number
is identified as discontinued in available product records. New old stock, unused inventory, refurbished units, and previously installed modules should be treated differently during incoming inspection.
Avoidance: Require photographs of the actual nameplate, revision markings, connector condition, and packaging before accepting a lifecycle replacement.
FAQ
Is HIMA an input or output module?
The is identified in available part records as an 8-channel digital output module. It is intended to provide discrete output signals to compatible field devices rather than acquire field input signals.
How many output channels does the have?
The documented configuration is eight digital output channels. Available technical data also specifies up to approximately 500 mA output capability per channel.
Is HIMA still a current-production module?
Available lifecycle records identify the as discontinued by the manufacturer. For an existing installation, this makes exact-part replacement and condition verification particularly important.
Is the same as /3330/C5?
No. The distinction is important. is listed as the digital output module, while /3330/C5 is documented as a cable-plug assembly for the output module, with a wired 5-meter cable and two-pole connection.
What should I verify before replacing a ?
At minimum, verify the complete part number, module identification, rack position, mating connector, field voltage, output load current, wiring arrangement, and system documentation. For a safety system, also verify that the replacement is acceptable within the site’s validated configuration.
Can I use a generic 8-channel digital output card instead?
Not as a direct assumption. An eight-channel count does not establish functional or safety compatibility. The electrical characteristics, backplane interface, diagnostics, failure behavior, and system certification all need to match the original architecture.
What should procurement request for a replacement ?
Request the exact marking and revision, actual-unit photographs, condition classification, test information where available, and confirmation of the applicable cable/connector arrangement. For legacy safety hardware, these details are more useful than a generic statement that the part is “compatible.”
