Description
The identifiers GVC750BE101, 5SXE02-0137 (or related semiconductor codes), and 3BHE009681R0101 refer to a specialized power electronics component manufactured by ABB.
Key Overview & Specifications
-
Product Type: Integrated Gate-Commutated Thyristor (IGCT) Gate Unit / Semiconductor Module Controller
-
Brand / Family: ABB Medium-Voltage Drive Components / IGCT Stack Accessories
-
Current Class: Designed for roughly the 750 A converter leg current tier (indicated by the 750 designation in GVC750).
Core Function & Applications
-
Function: Acts as a dedicated high-performance gate unit that provides the high peak gate current and precise turn-off control required for IGCT power semiconductor devices. It ensures fast, reliable commutation and snubberless operation in high-power conversion stages.
-
Communication: Utilizes fiber-optic command and feedback links for complete galvanic isolation and high electromagnetic compatibility (EMC) immunity in noisy industrial switchgear.
-
Common Applications: Medium-voltage (MV) frequency converters, high-power industrial drives (such as the ABB ACS6000 series), traction inverters, and heavy-duty renewable energy power controllers.

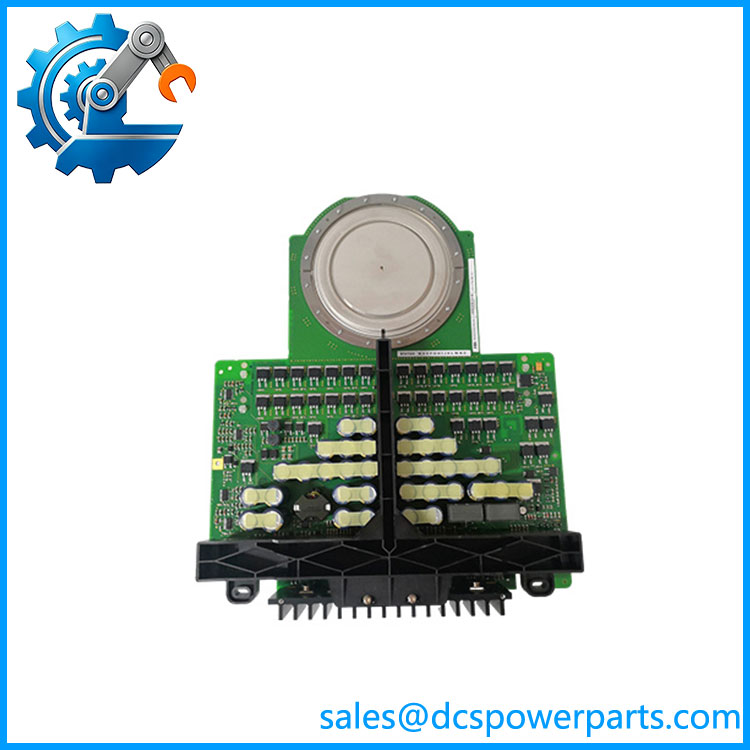

GVC750BE101
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | GVC750BE101
3BHE009681R0101 Gate chip code：5SXE02-0137 |
| Module Type | IGCT Gate Driver Control Board |
| Manufacturer | ABB |
| Applicable Device | 5SHY3545L0009 / 5SHY3545L0010 IGCT |
| Application Platform | Unitrol 5000 Excitation System, ACS Medium Voltage Drives |
| Control Power | 24 VDC auxiliary power |
| Core Function | IGCT turn-on/turn-off gate pulse drive, device status monitoring, overcurrent / over-temperature fault detection |
| Signal Interfaces | Fiber optic communication interface for receiving PWM commands from USC controller |
| Protection Logic | IGCT short-circuit protection, driver power loss monitoring, device fault feedback |
| Mounting Form | Plug-in board inside power converter cabinet |
| Cooling Mode | Conduction heat dissipation |
| Operating Temperature | -20 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet installation) |
| Commissioning Tool | ABB Unitrol excitation configuration software |
| Spare Part Status | OEM production discontinued; new surplus & refurbished boards available |
Key Features
- Specialized drive board for IGCT power semiconductor; converts optical fiber control commands into high-current gate drive pulses
- Fast fault detection circuit, immediately blocks drive signal when IGCT failure occurs to avoid secondary damage
- Optical fiber control signal transmission, effectively isolating strong power electromagnetic interference inside excitation cabinet
- Works cooperatively with USC329AE01 supervisory controller to build complete Unitrol excitation regulation system
- Built-in fault latch function, records trip cause for post-failure troubleshooting
- Strict mechanical positioning and keyed interface, prevents misinstallation
- Different suffix revision variants cannot be directly interchanged; replacement requires consistency of part number and firmware version
Application Scope
Reminder: Many trading platforms confuse it with AC800M DCS CPU module; GVC750BE101 is power electronic driver board, not process controller.
