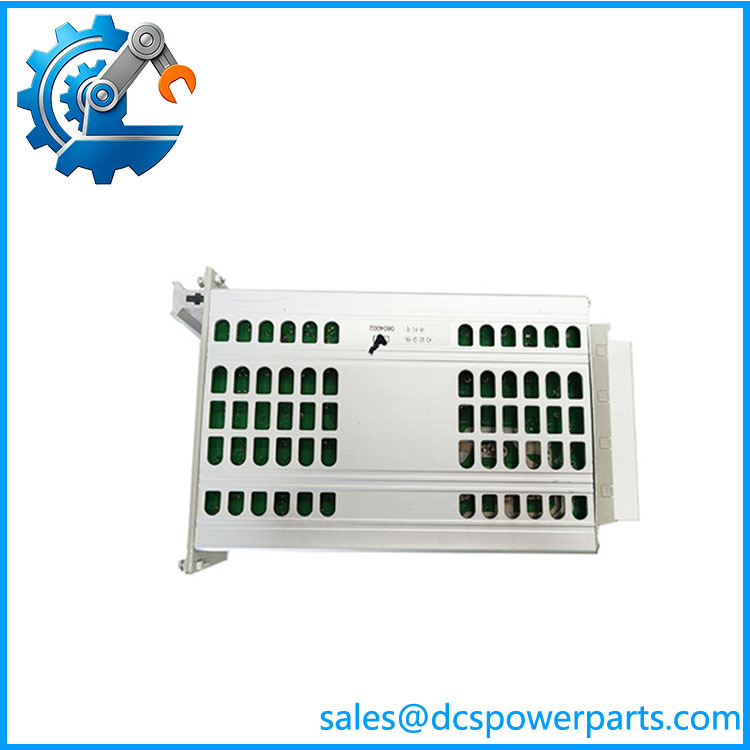

GE WES5120 5120-1506 | WES Field Controller Master Unit

Description

Product Overview

GE WES5120 5120-1506 is identified in multiple industrial automation catalogs as a WES field controller master unit. The part belongs to GE’s WES/WESDAC family of utility automation equipment and is intended to serve as a central controller within a larger field-control architecture. The distinction between a master controller and an individual I/O module is important here: GE WES5120 5120-1506 should not be treated as a generic analog or digital I/O card simply because some secondary listings describe it that way.

The GE WES5120 5120-1506 appears alongside WES5120 5120-1106, WES5123-1200, WES5123-2600, WES5162-9101, WES5302-111, WES5302-150, WESDAC D20ME, and WESCOM D200 in WES-related product catalogs. This supports its classification within the GE WES field-control ecosystem, but it does not establish interchangeability between those assemblies.

A major procurement issue is the poor quality of specifications published by some secondary sources. One listing calls the 5120-1506 a power module, another calls it an analog-output module, and another describes it as a turbine-control CPU with highly specific processor, memory, Ethernet, and real-time specifications. Those descriptions conflict with each other. For engineering purposes, the safest confirmed identification is GE WES5120 5120-1506 — Field Controller Master Unit.

Technical Specifications

Specification Warning

I would not use the following commonly published claims as confirmed specifications for this exact part without a GE drawing:

• 24 VDC input
• Modbus interface
• 4-channel analog output
• 32-bit RISC CPU
• 16 MB RAM
• RS-232/RS-485/Ethernet ports
• 350 kHz output frequency
• Vibration-monitoring inputs
• 100 kHz sampling rate

These values appear in conflicting secondary listings and are not mutually consistent.

WES5120 5120-1506

Main Features and Advantages

WES Field Controller Platform

The most consistently supported role of 5120-1506 is the WES field-controller master unit. This makes it relevant to maintenance of installed GE WES utility-control systems where the original controller architecture remains in service.

Central Control Function

As a master-unit assembly, the controller’s function should be considered at system level. Field I/O, communication interfaces, and supervisory functions may be provided by associated WES hardware rather than being integrated into this particular assembly.

Legacy System Support

The practical value of this part is primarily replacement and maintenance. If a WES installation is still operating correctly, replacing an individual failed controller is generally a much smaller engineering task than redesigning the complete field-control system.

Exact-Part Identification

The full designation is important. GE WES equipment includes closely related assemblies such as and WES5123 controllers. Catalog listings distinguish these parts separately.

Hardware and Software Matching

For a replacement, the controller hardware is only one part of the compatibility equation. Firmware, application software, configuration data, memory/storage arrangement, and communication parameters should all be documented before removing the existing unit.

Application Scenarios

Utility Automation

WES hardware is associated with utility field-control applications, making the 5120-1506 relevant to legacy electrical automation systems.

Substation and Remote Control

A field-controller master can sit between field equipment and higher-level SCADA infrastructure, depending on the actual WES configuration.

RTU/SCADA Systems

The family is cataloged alongside GE WES field controllers and WESDAC/WESCOM hardware used in utility automation.

Legacy Spare Parts

For plants maintaining older WES systems, an exact tested 5120-1506 can be useful as a cabinet spare where software and system configuration make modernization impractical.

Engineer’s Guide: Field Pitfalls

WARNING 1 — Do not classify it as a power supply

A secondary listing calls a power module and assigns it a 100–240 VAC input and N+1 redundancy characteristics. Those specifications are not supported by the more consistent field-controller identification.

Procurement rule: Do not use those power-supply specifications for a purchase specification.

WARNING 2 — Do not assume it is an analog-output card

Another listing calls the same part an analog-output module and gives unrelated electrical specifications.

Procurement rule: Require the actual nameplate and GE documentation before assigning an I/O function.

WARNING 3 — Be skeptical of turbine-control claims

A 2025 secondary article describes 5120-1506 as a CPU for a turbine-control platform and supplies detailed claims about 32-bit RISC processing, 16 MB RAM, redundant CPUs, and turbine applications. Those claims are not corroborated by the more consistent WES field-controller listings.

Procurement rule: Do not copy those values into a technical datasheet without primary documentation.

WARNING 4 — Do not assume 5120-1106 and 5120-1506 are interchangeable

Both are cataloged as GE field-controller master units, but they are separate part numbers.

Procurement rule: Match the complete part number and hardware revision.

Frequently Asked Questions

What is GE 5120-1506?

It is a GE WES-series field controller master unit associated with the WES/WESDAC utility automation product family.

Is 5120-1506 an I/O module?

The strongest available identification says no. It is cataloged as a field-controller master unit. Some secondary sellers describe it as an analog-output or other I/O module, but those descriptions conflict with the broader product identification.

Is it the same as 5120-1106?

No. They are separate GE part numbers, although both are identified as field-controller master units.

Is it a turbine controller CPU?

There is a secondary source making that claim, but the available evidence is inconsistent. I would not describe 5120-1506 as a turbine CPU unless the customer’s equipment documentation confirms that application.

What should be checked before purchasing?

For an industrial replacement, request:

1. Exact nameplate.
2. Assembly/board revision.
3. Firmware revision.
4. Memory and storage configuration, where applicable.
5. Front and rear photographs.
6. Connector configuration.
7. Original system/rack information.
8. Power-up test.
9. Controller diagnostic test.
10. Communication test with representative WES equipment.
11. Application boot/functional test where possible.

Bottom line: The defensible product classification is GE 5120-1506 — WES Field Controller Master Unit. The model identity is supported by multiple industrial catalogs, while the detailed specifications circulating online are contradictory and should be verified before being used for engineering or procurement.
