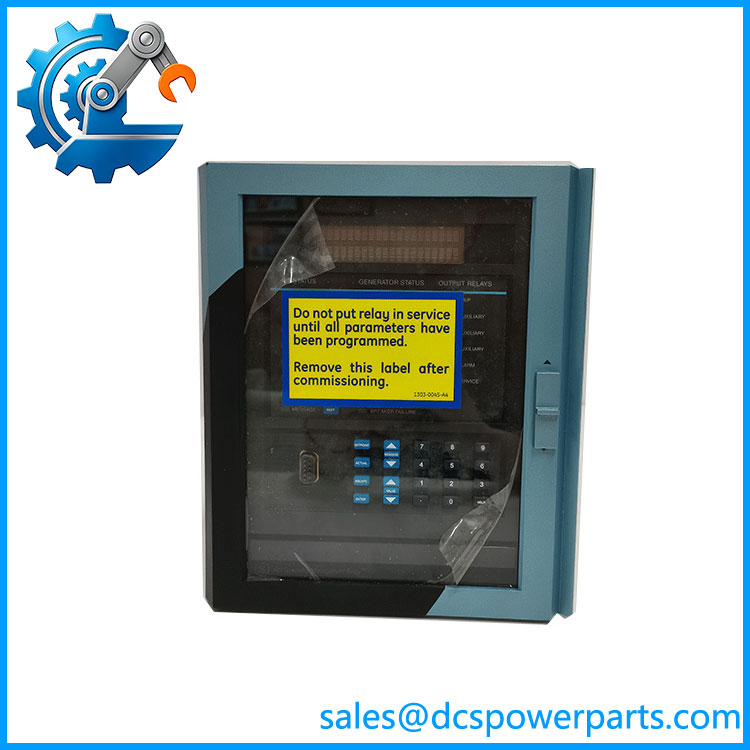

GE SR489-P5-LO-A20 | 489 Generator Management Relay

Description

Product Introduction

The GE Multilin SR489-P5-LO-A20 is a member of the GE Multilin SR489 Generator Management Relay family. The SR489 is designed for generator protection, measurement, monitoring, and control, combining electrical protection functions with generator operating data in a dedicated relay platform. It is intended for applications where the generator requires more than basic overcurrent protection and where operating measurements, alarms, trips, and control functions need to be integrated into one protection device.

The SR489-P5-LO-A20 is particularly relevant to industrial generator installations, utility auxiliary generation, standby generation, and other medium-voltage or low-voltage generator systems. Depending on the configuration, the relay monitors quantities such as phase current, ground current, voltage, frequency, power, and generator operating conditions, then uses configured protection elements to initiate alarms or trips.

The exact suffix is important. SR489-P5-LO-A20 is not simply interchangeable with every SR489 relay. The P5, LO, and A20 configuration designations can affect the hardware and application characteristics. For procurement, the complete ordering code, nameplate information, CT ratings, control voltage, firmware, and communication arrangement should be compared against the installed relay before substitution.

Technical Specifications

Main Features and Engineering Considerations

Generator Protection and Management

The family combines generator protection with measurement and operating-data functions. Typical protection applications include phase overcurrent, ground-fault protection, voltage and frequency supervision, reverse power, loss-of-field-related protection, and other generator-specific protection elements depending on the installed configuration and firmware.

The relay can therefore serve as a central protection and monitoring device rather than simply acting as an overcurrent relay.

SR489-P5-LO-A20

Electrical Measurement

Generator current and voltage measurements provide the relay with the data required for protection calculations, metering, alarms, and event analysis. Correct CT and VT ratios are critical because incorrect settings can produce incorrect measured values and incorrect protection operating points.

For the -P5-LO-A20, the 5 A CT configuration should be confirmed against the existing generator protection wiring before installation.

Configurable Protection

The architecture allows protection elements and operating logic to be configured for the generator application. This provides considerable flexibility, but it also creates a maintenance risk: two relays with the same basic model designation may contain different settings, logic, firmware, and communication configurations.

A replacement should therefore not be considered complete merely because the front panel powers up.

Application Scenarios

The GE Multilin -P5-LO-A20 can be used in:

• Industrial generator protection
• Standby generator systems
• Synchronous generators
• Induction generators
• Power-generation plants
• Cogeneration systems
• Motor-generator sets
• Generator switchgear
• Utility auxiliary generation
• Legacy GE Multilin protection systems

Engineer’s Guide: Field Pitfalls

⚠️ Do not replace the relay by model number alone.
The complete ordering code, hardware configuration, firmware, and application settings need to be checked.

⚠️ Verify CT secondary rating.
The P5 designation indicates a 5 A CT configuration. Connecting a relay configured for a different CT arrangement can create serious protection-setting problems.

⚠️ Back up the settings before replacement.
Protection settings, logic, timers, trip assignments, alarms, communication parameters, and scaling should be documented before removing the existing relay.

⚠️ Firmware compatibility matters.
A replacement with a different firmware revision may behave differently with configuration software or an existing settings file.

⚠️ Test protection functions.
A successful power-up test does not prove that the protection relay is healthy. A proper test should include current/voltage injection and verification of the relevant trip and alarm elements.

⚠️ Check communication configuration.
If the relay is integrated with a plant SCADA or DCS system, verify the communication port, protocol, address, baud rate, and mapped data points after replacement.

Frequently Asked Questions

It is a GE Multilin Generator Management Relay used for generator protection, monitoring, measurement, and control.

What does do?
The is designed specifically for generator management, combining protection functions with metering, monitoring, alarms, control, and event information.

What does the P5 configuration indicate?
It is associated with a 5 A CT input configuration and should be matched to the generator’s CT secondary wiring.

No. It is a dedicated generator protection and management relay, although it provides programmable logic and control functions.

Can a different suffix be used as a replacement?
Not automatically. The complete ordering code and hardware configuration should be verified before substitution.

What should be checked before purchasing?

2. Complete nameplate
3. CT secondary rating
4. VT/PT configuration
5. Control power requirements
6. Hardware revision
7. Firmware revision
8. Protection settings
9. Trip/alarm output assignments
10. Communication configuration
11. Existing configuration file
12. Current/voltage injection test

Procurement note: For a used or refurbished , I would require the exact nameplate, firmware information, configuration/settings backup, and protection-function test results. A relay that only passes a power-on test is not sufficient evidence for generator protection service.
