Description
Product Overview
The GE ITM11A8XJ036645 PM0N2000 is a programmable logic controller module designed for industrial automation applications requiring compact control, integrated I/O handling, and communication capability. This controller combines processing functions with onboard input and output resources, allowing it to manage machine sequences, equipment interlocks, and process operations without requiring a separate basic control interface. The unit is associated with GE legacy PLC hardware platforms used in manufacturing equipment, automated machinery, and industrial control installations.
The GE ITM11A8XJ036645 PM0N2000 provides a fixed I/O configuration with 20 inputs and 16 outputs, making it suitable for applications where discrete signal monitoring and actuator control are central requirements. Its integrated communication ports support connection with programming devices, operator interfaces, and other automation equipment through serial communication methods such as RS232, RS422, and RS485. The GE ITM11A8XJ036645 PM0N2000 is often considered during legacy PLC maintenance projects where keeping an existing control design in operation is more practical than replacing an entire machine control system.
For engineers supporting older GE installations, this controller provides a direct hardware option for restoring production equipment or maintaining spare inventory. The module’s application suitability depends on the original program structure, I/O addressing, communication settings, and installed hardware revision. A replacement unit should be checked against existing ladder logic, memory configuration, and field wiring before commissioning.
The practical value of the GE ITM11A8XJ036645 PM0N2000 comes from maintaining continuity in established automation systems. Proper verification of stored programs and communication parameters remains important because legacy PLC applications often contain machine-specific logic developed over years of operation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | GE ITM11A8XJ036645 PM0N2000 |
| Manufacturer | General Electric (GE) |
| Product Type | Programmable Logic Controller Module |
| Controller Function | Logic processing and integrated I/O control |
| Series | GE Legacy PLC Control Platform |
| Digital Inputs | 20 points |
| Digital Outputs | 16 points |
| Memory Capacity | Approximately 14.8K |
| Communication Ports | RS232 / RS422 / RS485 |
| Communication Support | Serial industrial communication |
| Application | Machine automation, equipment control, process applications |
| Mounting | Industrial control cabinet installation |
| Replacement Use | Legacy PLC maintenance and restoration |

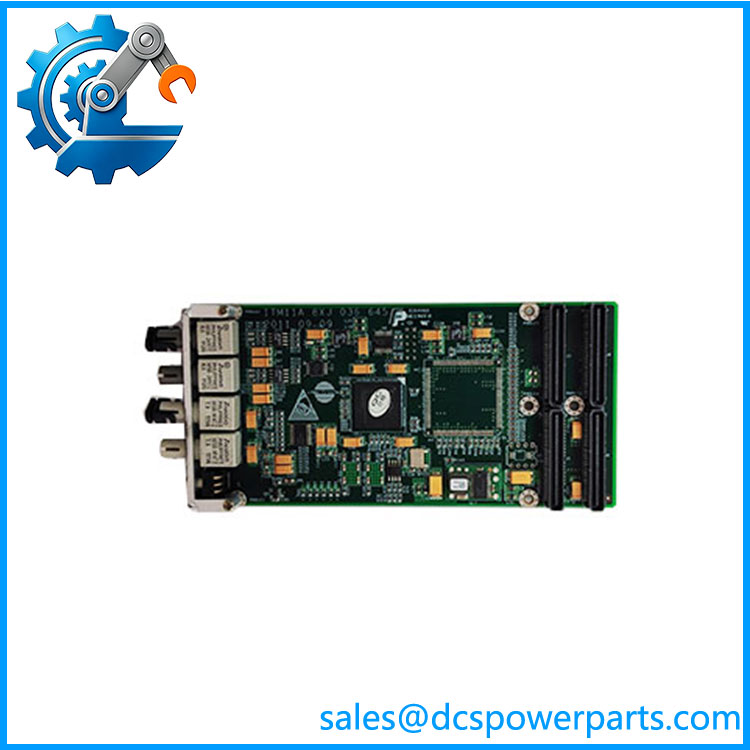

ITM11A8XJ036645
Related Products
- GE IC693CPU331 — GE Series 90-30 CPU module with larger modular PLC architecture. Suitable for applications requiring expandable I/O and rack-based configurations.
- GE IC693CPU374 — Higher-performance Series 90-30 CPU with enhanced communication capability. Used when upgrading from older GE controllers while retaining the Series 90-30 platform.
- GE IC693MDL730 — Digital output module for Series 90-30 systems. Provides additional actuator control channels when expanding discrete outputs.
- GE IC693MDL645 — Digital input module used with GE Series 90-30 PLC racks. Supports additional field signal collection.
- GE IC200CPUE05 — VersaMax CPU module. Used for different GE PLC architectures where compact modular control is required.
- GE IC200PWR012D — VersaMax power supply module. Supports VersaMax-based control systems and expansion configurations.
- GE HWA143-TDM-PMC-V20 — GE communication interface hardware. Used for data communication applications rather than direct PLC logic execution.
Frequently Asked Questions (FAQ)
1. What type of PLC system uses the GE PM0N2000?
The is associated with GE legacy PLC control applications. It is intended for systems where integrated logic processing, discrete I/O control, and serial communication are required.
2. Can I hot-swap the GE PM0N2000?
Hot replacement depends on the machine design and installation procedure.
Recommended steps:
- Stop the controlled equipment safely.
- Isolate power according to site procedures.
- Remove and replace the controller.
- Verify communication and I/O operation before returning to production.
Legacy PLC controllers typically require a controlled shutdown before replacement.
3. Does the GE PM0N2000 support firmware v3.1?
Firmware support depends on the exact controller revision and programming environment. The model number alone does not confirm firmware compatibility. Engineers should verify the installed software version, backup program file, and hardware revision before replacement.
4. Will replacing this PLC module erase my control logic?
The stored application program should be backed up before replacement. If the replacement module does not contain the original user program, the machine logic will need to be restored from the approved backup file.
Recommended procedure:
- Upload and save the existing PLC program.
- Record communication settings.
- Install replacement hardware.
- Download and verify the application.
5. How can I confirm a New Surplus GE PM0N2000 is authentic?
Inspection should include:
- Checking GE identification labels.
- Verifying model and revision markings.
- Inspecting connectors and housing condition.
- Performing functional testing before field installation.
6. Is the GE PM0N2000 suitable for a PLC modernization project?
It is primarily used for maintaining existing systems. For modernization, engineers should compare the cost and risk of retaining the current PLC platform against migration options, including program conversion, I/O replacement, and machine downtime requirements.
7. What information should be checked before ordering a GE ?
Provide:
- Existing PLC model and rack information
- Current program backup availability
- Communication configuration
- I/O wiring details
- Hardware revision information
