GE IS420YDIAS1B Product Description

Key Technical Specifications

GE identifies the IS420YDIAS1B as the common I/O pack used across the Mark VIeS Functional Safety contact-input modules. The pack itself does not determine whether the field system is a 24 VDC or 48 VDC contact-input arrangement; that function is determined by the compatible terminal board. For example, GE specifies IS410STCIS2A for simplex 24 VDC contact inputs and IS410STCIS4A for simplex 48 VDC contact inputs, both using the same YDIA pack.

Product Introduction

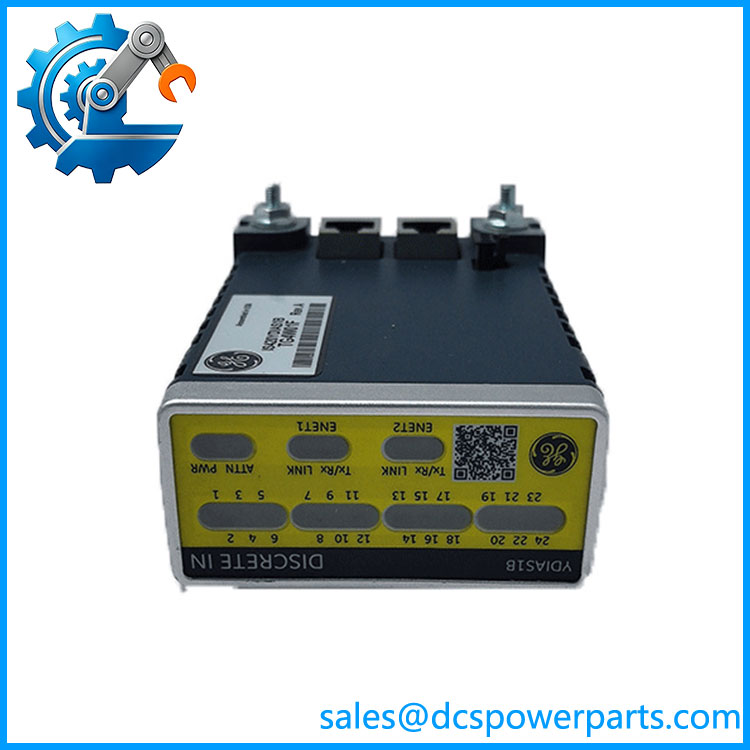

The GE IS420YDIAS1B is a Mark VIeS YDIA discrete contact-input I/O pack designed to interface field contact signals with Mark VIeS safety control logic. It accepts up to 24 discrete inputs and communicates the processed I/O information through one or two I/O Ethernet networks. The pack contains a processor board and a discrete-input acquisition board, making it the active electronic portion of the contact-input assembly.

IS420YDIAS1B

The GE IS420YDIAS1B is not a complete 24-point field terminal module. It mounts to a compatible Mark VIeS contact-input terminal board through a DC-37 interface. The terminal board provides the field wiring and contact wetting arrangement, while the YDIA handles input acquisition, processing, diagnostics, and I/O network communication. This distinction is important when sourcing a replacement because the same YDIA pack can be used with different terminal-board configurations.

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A common maintenance error is ordering an IS420YDIAS1B as though it were a standalone 24 VDC digital-input module. It is not. The YDIA is the electronic I/O pack, while the attached terminal board determines the field-contact voltage, wiring arrangement, and redundancy configuration. A replacement must therefore be checked against the complete installed I/O assembly.

Typical Applications

• Mark VIeS turbine safety systems — acquisition of discrete contact signals used by safety control logic.
• Emergency and protective status monitoring — contact-based process and equipment status inputs.
• Simplex safety I/O — one YDIA pack mounted on an appropriate STCI terminal board.
• Dual I/O architectures — two YDIA packs used where the system architecture specifies Dual redundancy.
• TMR safety architectures — three YDIA packs connected through an appropriate TBCI terminal-board arrangement.

GE documentation specifies that the Mark VIeS contact-input architecture supports Simplex and TMR configurations, while the TBCI terminal board can also be configured for Dual operation. In TMR operation, the controller performs 2-out-of-3 voting on the discrete inputs.

Technical Pitfalls

1. Verify the terminal board before ordering.
The YDIA pack is compatible with multiple contact-input terminal boards. IS410STCIS2A provides a simplex 24 VDC contact-input arrangement, while IS410STCIS4A provides the corresponding 48 VDC version. TBCI boards provide different redundancy options. Do not determine the field voltage from the YDIA part number alone.

2. The 24 channels are discrete contact inputs, not analog inputs.
The configuration exposes Contact01 through Contact24 as Boolean inputs. The system can configure each input as used/unused, normal/inverted, with optional SOE and filtering parameters.

3. Input filtering is configurable.
The Mark VIeS configuration provides contact-input filter selections of zero, 10, 20, 50, or 100 ms. This is relevant when contacts are connected to mechanical switches or devices that produce bouncing or short-duration transitions.

4. SOE timing is a significant feature.
GE specifies a 1 ms SOE sample rate for the contact-input module. If the existing application relies on sequence-of-events data, verify the SOE configuration and controller setup rather than assuming that simply installing the replacement pack restores the original event behavior.

5. Do not confuse the YDIA with PDIA.
The Mark VIeS documentation distinguishes YDIA and PDIA I/O variables and configurations. The YDIA is the discrete contact-input pack. Its application and terminal-board compatibility should be checked against the actual I/O type configured in the project.

6. The input circuits should not be described as channel-to-channel isolated without qualification.
The field terminal board performs the initial signal conditioning, while the YDIA acquisition circuitry provides isolation between the field input circuitry and the control electronics. Public secondary descriptions sometimes overstate the isolation architecture. For safety-system documentation, use GE’s actual terminal-board and system documentation rather than a reseller specification.

7. Power is separate from contact wetting power.
GE specifies 24/28 VDC and 6.8 W maximum for YDIA I/O-pack control power. The terminal board can have a separate contact wetting supply; for the 24 VDC STCI arrangement, GE specifies a floating 24 VDC nominal wetting source with a 20–32 VDC range. These should not be treated as the same electrical specification.

8. TMR replacement requires matching hardware forms.
A TMR contact-input system uses three YDIA packs. When replacing one pack, check the hardware form, terminal-board configuration, IONet assignment, controller configuration, and project database. A pack that physically fits the terminal board is not automatically a valid safety-system substitute.

9. Hardware diagnostics should be checked after installation.
GE lists power-up self-test, loss of contact-input voltage, detection of a non-responding contact input during background testing, and incorrect-terminal-board detection among the diagnostic functions. The status LEDs and controller-level health variables should be reviewed after commissioning.

10. Used inventory requires label and connector verification.
For surplus IS420YDIAS1B stock, inspect the two RJ45 Ethernet connectors, DC-37 connector, three-pin power connector, enclosure, LEDs, and identification label. The PCB/hardware form and revision should be recorded before installation, especially where multiple I/O packs are used in a redundant safety architecture.

Related Products

• GE IS410STCIS2A — simplex 24 VDC contact-input terminal board used with one IS420YDIAS1B.
• GE IS410STCIS4A — simplex 48 VDC contact-input terminal board using the same YDIA pack.
• GE IS410TBCIS2C — TBCI 24 VDC contact-input terminal board supporting TMR, Dual, or Simplex configurations.
• GE IS410TBCIS3C — TBCI 48 VDC contact-input terminal board supporting TMR, Dual, or Simplex configurations.
• GE IS420YAICS1B — YAIC analog I/O pack; analog rather than discrete contact input.
• GE IS420YDOAS1B — YDOA output I/O pack for applicable Mark VIeS output terminal boards.
• GE IS420UCSCS2A — Mark VIeS Safety Controller communicating with distributed safety I/O.
• GE IS410STAIS2A — simplex analog I/O terminal board for the YAIC analog I/O pack.
• GE IS410SRLYS2A — simplex Form-C relay-output terminal board for the YDOA output pack.

Procurement note: For an IS420YDIAS1B replacement, record the complete YDIA label, hardware revision, installed terminal-board part number, field contact voltage, Simplex/Dual/TMR architecture, IONet assignment, and Mark VIeS project/firmware environment. GE’s documentation confirms that IS420YDIAS1B is the common safety contact-input pack, while the terminal board determines the specific contact-input implementation.
