GE IS420UCSCS2A-B-V0.1-A Product Description

Key Technical Specifications

GE specifies the IS420UCSCS2A as the Mark VIeS Safety Controller. The controller uses a dual-core 1.6 GHz AMD G-Series processor, 2 GB ECC SDRAM and a 128 GB SSD, and supports Simplex, Dual and TMR configurations. The published specifications also identify three IONet interfaces for Mark VIe/Mark VIeS I/O communications.

Product Introduction

The GE IS420UCSCS2A-B-V0.1-A is associated with the Mark VIeS Functional Safety UCSC controller platform, where the controller executes application-specific safety logic rather than functioning as a conventional remote I/O module. It communicates with distributed Mark VIeS I/O through the R/S/T IONet interfaces and can participate in Simplex, Dual, or TMR architectures. This makes the controller a central component in safety-related control applications where controller architecture, application configuration, and certified hardware/software combinations have to remain aligned.

The GE IS420UCSCS2A is designed as a base-mounted, fanless controller with software-configured hardware rather than conventional hardware jumpers. GE specifies Function Block Diagram, Relay Ladder Diagram, and Cause and Effect Matrix programming for the Mark VIeS safety environment. The controller supports control-logic frame rates of 10, 40, 80, and 160 ms, with synchronization across controllers when Dual or TMR configurations are used.

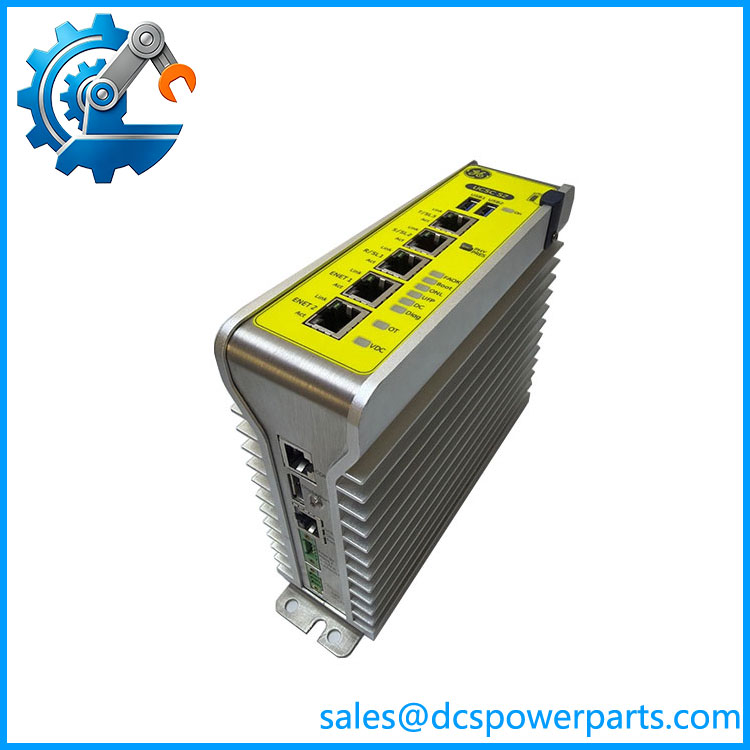

IS420UCSCS2A-B-V0.1-A

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

Replacing a UCSC safety controller is not equivalent to replacing a standard PLC CPU. The physical controller is only one element of a certified safety-control configuration. The application database, ToolboxST project, controller firmware, I/O configuration, redundancy architecture, and safety validation all matter. A replacement that powers up correctly can still be unsuitable if its software or firmware level does not match the existing Mark VIeS project.

Typical Applications

• Mark VIeS turbine safety systems — execution of safety-related control logic associated with turbine and power-generation applications.
• Safety instrumented functions — controller-level processing for defined functional safety loops.
• Dual-controller architectures — synchronized safety controllers used where the system design calls for controller redundancy.
• TMR safety architectures — three-controller configurations for applications requiring the corresponding Mark VIeS safety architecture.
• Industrial functional safety systems — applications requiring an IEC 61508-compliant controller platform.

Technical Pitfalls

1. Verify the complete hardware identification.
GE documentation identifies IS420UCSCS2A as the controller replacement part, while secondary inventory records may append strings such as -B-V0.1-A. Do not assume every suffix represents a separate electrically interchangeable controller. Record the complete label, serial information, firmware identification, and project configuration before procurement.

2. Firmware and ControlST/ToolboxST compatibility must be checked.
The Mark VIeS UCSCS2A platform is tied to specific ControlST generations. GE documentation indicates the UCSCS2A became available beginning with ControlST V07.02. A controller revision should therefore be evaluated against the site’s actual ControlST/ToolboxST environment instead of being treated as an isolated hardware purchase.

3. Do not confuse UCSCS2A with UCSCH1B.
Both belong to the UCSC family, but their roles are different. IS420UCSCS2A is the Mark VIeS Safety Controller, while IS420UCSCH1B is the Mark VIe Gateway Controller. The gateway controller has different processing, communication, and programming characteristics and should not be substituted solely because the mechanical form factor appears similar.

4. IONet redundancy is part of the system design.
The three R/S/T IONet interfaces support the Mark VIeS I/O communication architecture. Cable routing, network assignment, controller redundancy, and I/O pack configuration need to correspond to the existing system design. A simple Ethernet connectivity check does not prove that the safety I/O architecture is correctly configured.

5. Power quality matters.
The controller accepts 18–30 VDC with 28 VDC nominal operation and has a maximum specified power consumption of 30.8 W. The case is bonded to the power-supply negative according to the installation information, so grounding and DC supply arrangements should be checked rather than assuming that any nominal 24 VDC source is adequate.

6. Do not infer SIL capability from the hardware alone.
GE describes the UCSCS2A as a safety controller compliant with IEC 61508 and suitable for safety applications, but the achieved safety integrity of an installed safety function depends on the complete certified architecture, application, diagnostics, configuration, and installation. The controller should not be represented as independently providing SIL 3 for every arbitrary application.

7. Check thermal clearances during replacement.
The UCSC uses convection cooling rather than a fan. GE specifies -40 to +70°C ambient operation and provides separate mounting-base dimensions. Installation spacing and unrestricted airflow around the heat-dissipating surfaces therefore remain important when replacing a controller inside a crowded cabinet.

8. TMR replacement requires architectural discipline.
In a TMR installation, replacing one controller is not simply a matter of installing another powered unit. Controller identity, network assignment, application download, synchronization, diagnostics, and the site’s safety maintenance procedure should all be checked before returning the system to service.

9. Used inventory requires more than a visual inspection.
For a used IS420UCSCS2A-B-V0.1-A, inspect the power connector, Ethernet/IONet ports, mounting base, enclosure, status LEDs, label information, and evidence of storage or environmental damage. If possible, functional testing should include boot behavior, communication, controller diagnostics, and compatibility with the intended Mark VIeS configuration.

Related Products

• GE IS420UCSCH1B — Mark VIe Gateway Controller; similar UCSC family but a different controller role and programming/communication profile.
• GE IS420UCSBS1A — Mark VIeS/Mark VIe UCSC controller family member used in related control architectures; verify application compatibility before substitution.
• GE IS420UCSBH1A — UCSC controller variant associated with Mark VIe/Mark VIeS control platforms; hardware and firmware compatibility must be checked.
• GE IS420UCSCH2A — UCSC controller variant used in Mark VIeS-related applications; not an automatic replacement for UCSCS2A.
• GE IS420YDIAS1B — Mark VIeS discrete/contact-input I/O pack used with applicable safety terminal boards.
• GE IS420YAICS1B — Mark VIeS analog I/O pack used with applicable STAI safety terminal boards.
• GE IS420YDOAS1B — Mark VIeS relay/output I/O pack used with applicable SRLY safety terminal boards.
• GE IS410STCIS2A — Mark VIeS 24 VDC contact-input terminal board that works with the IS420YDIAS1B I/O pack.
• GE IS410STAIS2A — Mark VIeS simplex analog I/O terminal board associated with the IS420YAICS1B I/O pack.
• GE IS410SRLYS2A — Mark VIeS Form-C relay-output terminal board associated with the IS420YDOAS1B I/O pack.

Procurement note: For an IS420UCSCS2A-B-V0.1-A replacement, capture the complete nameplate information rather than ordering from the base model alone. The critical checks are controller hardware revision, firmware, ControlST/ToolboxST compatibility, existing Simplex/Dual/TMR architecture, IONet configuration, application project, and the exact safety-system configuration. For used or surplus stock, request clear photographs of the identification label and connectors and confirm that the unit can be tested in a compatible Mark VIeS environment before treating it as a ready-to-install replacement.
