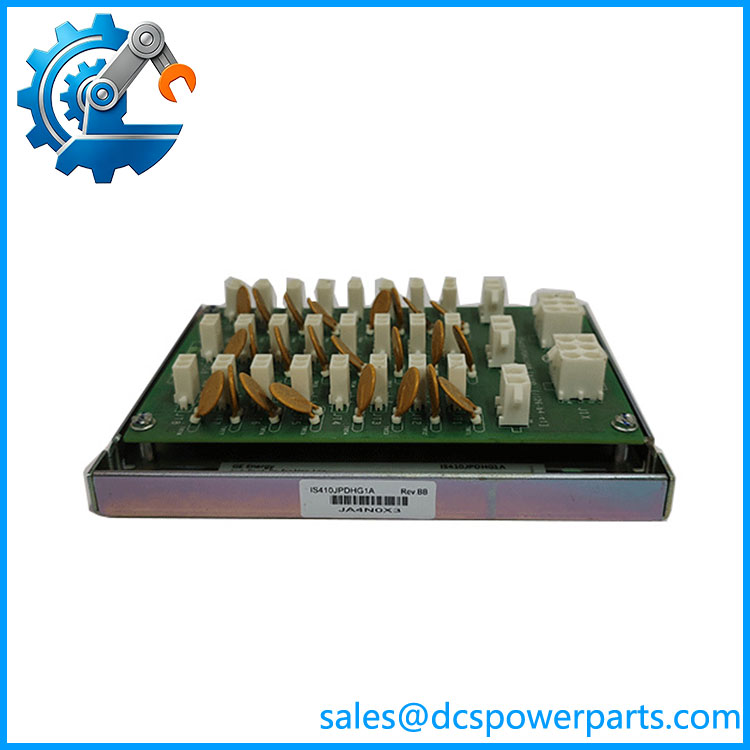

GE IS400JPDHG1ABB / IS410JPDHG1A | High-Density Power Distribution Board

Key Technical Specifications

GE’s Mark VIeS system documentation specifically lists as the High Density Power Distribution Board and identifies 24 I/O-pack power connections, three Ethernet-switch power connections, a 6-pin 28 VDC input, and 0.8 A maximum I/O-pack output rating at 70°C. GE’s IECEx certificate lists IS400JPDHG1A/ among the covered Mark VIe programmable-control-system equipment and specifies a 24–28 VDC, 13 A maximum input for this model group.

Product Introduction

The is a JPDH High-Density Power Distribution Board used in GE Mark VIe and Mark VIeS control architectures. It does not perform control logic or protocol conversion. Its job is electrical distribution: taking the incoming 24/28 VDC control-power feed and routing it to multiple Mark VIe I/O packs while maintaining separate R, S, and T power paths where the cabinet uses TMR architecture. GE documentation identifies the JPDH as providing power for up to three groups of eight I/O packs, along with dedicated power connections for IONet Ethernet switches.

For plant maintenance, this distinction matters. The JPDH is a power-distribution component rather than an intelligent I/O module. It has no role in executing application logic, processing analog signals, or communicating process data. A failure can nevertheless affect a large portion of a turbine control cabinet because loss of a distribution branch can remove power from downstream I/O electronics.

IS400JPDHG1ABB-IS410JPDHG1A

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A common Mark VIe troubleshooting mistake is to treat an I/O pack that will not start as an I/O-pack failure immediately. With the JPDH architecture, the first checks should include the incoming control-power feed, the R/S/T distribution path where applicable, the individual branch protection device, and the cable between the JPDH and affected I/O pack. GE’s system documentation shows that each I/O-pack branch is individually protected, so a single downstream fault can present as a localized loss of power rather than a complete cabinet shutdown.

Typical Applications

Gas and steam turbine control cabinets
The primary application is distribution of Mark VIe control power to distributed I/O packs used for turbine instrumentation, valve control, protection, and auxiliary equipment.

Mark VIeS functional safety systems
The JPDH is listed within the Mark VIeS power-distribution architecture and can be used with simplex or TMR power arrangements depending on cabinet design.

TMR I/O power distribution
The R/S/T arrangement allows separate control-power paths to the three corresponding I/O-pack groups. This is important when diagnosing a TMR cabinet because loss of one feed should not automatically be interpreted as loss of all three I/O paths.

Expanded I/O cabinets
The J1X connection permits JPDH distribution to be extended to another JPDH. GE documentation specifically describes daisy-chain use for larger I/O configurations.

Technical Pitfalls

1. Do not confuse JPDH with JPDS or JPDG.
   JPDS and JPDG perform different stages of Mark VIe power distribution. JPDH is the high-density downstream distribution point for I/O packs and IONet switches.
2. Do not treat the board as a regulated DC power supply.
   The JPDH distributes incoming control power; it does not replace the upstream Mark VIe power supply.
3. Check R/S/T wiring before replacing a board.
   In TMR installations, the three feeds have specific functions. A missing R, S, or T feed can produce symptoms that resemble a defective I/O pack.
4. Check the branch protection device.
   Each I/O-pack connection has its own PTC protection. A shorted I/O pack or damaged power cable should be investigated before installing another JPDH.
5. Verify the complete assembly number.
   The relationship between and is documented through GE drawings/certification records, but purchasing should still be based on the exact label and cabinet documentation. GE’s older certification record specifically references an associated with the distributor board.
6. Do not assume a generic 24 VDC distribution board is an equivalent substitute.
   Connector arrangement, branch protection, TMR wiring, current capacity, hazardous-location requirements, and Mark VIe cabinet harnessing all need to match.

Related Products

• GE IS410JPDSG1A — Core control-power distribution module; used upstream of JPDH in applicable Mark VIe architectures.
• GE IS410JPDGH1A — Control and I/O wetting power distribution module with a different distribution function from JPDH.
• GE IS410JPDEG1A — I/O wetting power distribution module.
• GE IS410JPDDG1A — I/O wetting power branch distribution hardware.
• GE IS420PPDAH1B — Power Distribution Diagnostic Feedback I/O Pack; used for power-distribution monitoring rather than passive power fanout.
• GE IS420UCSBH1A — Mark VIe control processor/I/O-related hardware; fundamentally different from JPDH.
• GE IS220PDIOH1A — Mark VIe discrete I/O pack, supplied through the appropriate power-distribution architecture.
• GE IS220PAICH1A — Mark VIe analog input pack; requires the correct JPDH/JPDS power arrangement.
• GE IS220PTURH1A — Mark VIe turbine protection I/O pack family; power-distribution compatibility must be checked at cabinet level.

Procurement Note

For a replacement request, provide , , the equipment serial/ML information when available, and a clear photograph of the board label. Do not rely on “JPDH” alone. The exact assembly revision, Mark VIe versus Mark VIeS cabinet configuration, connector arrangement, and upstream power-distribution hardware can determine whether a replacement is appropriate.

The most useful acceptance test is not simply checking continuity. Verify the incoming 24/28 VDC feed, each R/S/T branch as applicable, output voltage under the expected connected load, branch protection behavior, J1/J1X wiring, and the downstream I/O-pack startup sequence.
