Description
The GE IS230SNRTH2A is a Mark VIe RTD input module assembly designed for turbine temperature monitoring applications. It combines the RTD input processing electronics with the SRTD terminal board interface, allowing resistance temperature detector signals from field devices to be processed by the Mark VIe controller system.
Key Functions:
- RTD temperature signal acquisition
- Simplex Mark VIe I/O configuration
- Connection to turbine field temperature sensors
- Interface with Mark VIe controller through I/O network architecture
- Designed for Speedtronic turbine control applications
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IS230SNRTH2A |
| Manufacturer | GE |
| Product Family | Mark VIe Speedtronic |
| Product Type | RTD Input Module Assembly |
| Configuration | Simplex |
| Input Signal Type | RTD Resistance Temperature Detector |
| Associated I/O Pack | PRTDH1B |
| Terminal Board | SRTDH2A |
| RTD Channels | 8 channels (typical Mark VIe RTD configuration) |
| Sensor Types | PT100 and compatible RTD inputs (configuration dependent) |
| Communication Interface | Mark VIe I/O Ethernet network |
| Installation | Mark VIe I/O rack / terminal board assembly |
| Power Supply | 28 VDC field/control supply architecture |
| Diagnostics | Channel status monitoring and module diagnostics |
| Application | Gas turbine, steam turbine, generator temperature monitoring |
| Mounting | Industrial control cabinet installation |
| Operating Environment | Power plant automation environment |
Product Introduction
GE IS230SNRTH2A Product Introduction
GE IS230SNRTH2A is a Mark VIe RTD input module assembly designed to measure temperature signals from resistance temperature detectors installed throughout turbine and auxiliary equipment systems. The module is part of the GE Speedtronic distributed I/O architecture and provides the measurement interface between field temperature sensors and turbine control processors.
The GE IS230SNRTH2A is commonly used for monitoring critical thermal points including turbine bearings, generator components, lubrication systems, cooling circuits, and auxiliary equipment. RTD signals are processed through the associated SRTD terminal interface before being transferred into the Mark VIe control system.
The GE IS230SNRTH2A should be treated as part of a complete temperature measurement chain rather than an isolated replacement card. Correct operation depends on RTD sensor selection, wiring method, terminal board compatibility, controller configuration, and I/O communication status.

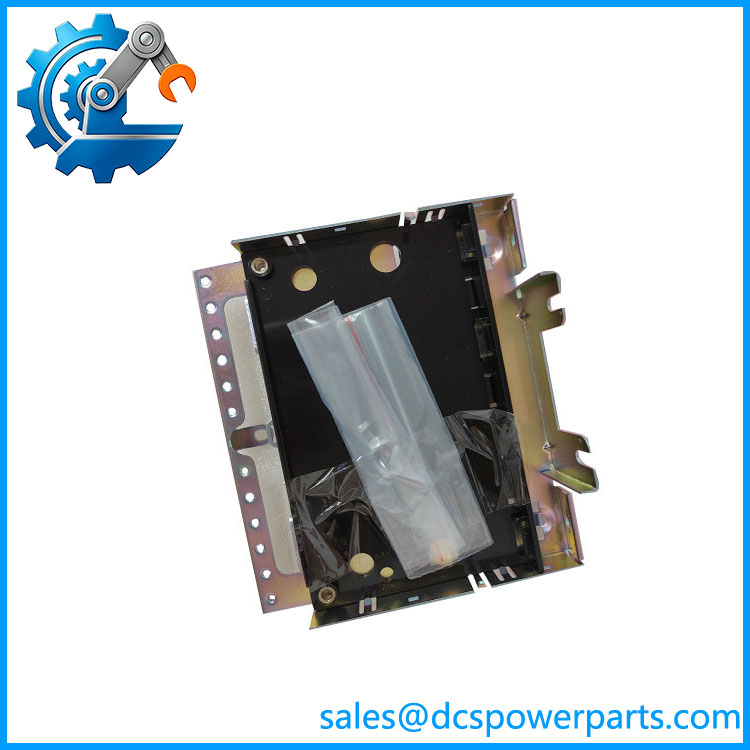

IS230SNRTH2A
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A turbine control system begins showing abnormal temperature alarms or inconsistent temperature readings. Operators replace the RTD sensor, but the problem remains.
Temperature measurement faults are often caused by issues between the sensor and controller, including cable resistance, terminal connections, grounding problems, or incorrect channel configuration.
The RTD input module is only one part of the measurement loop.
Typical Applications
Gas Turbine Control
Used for monitoring:
- Bearing metal temperatures
- Compressor section temperatures
- Exhaust-related auxiliary temperatures
- Generator temperature points
Steam Turbine Systems
Applied for:
- Bearing protection monitoring
- Steam system temperature supervision
- Rotating equipment protection
Power Generation Plants
Used in:
- Combined cycle power stations
- Generator auxiliary systems
- Turbine protection systems
Industrial Rotating Equipment
Applied for:
- Large compressor packages
- Pump systems
- Mechanical condition monitoring
Technical Pitfalls to Avoid
1. Confirm RTD Wiring Configuration
Incorrect wiring can create measurement errors.
Check:
- 2-wire / 3-wire / 4-wire RTD configuration
- Sensor type
- Cable resistance compensation
- Channel scaling parameters
2. Verify Terminal Board Matching
The is associated with the Mark VIe RTD terminal assembly. Confirm the installed terminal board before replacement.
3. Check Field Wiring Quality
Common causes of unstable temperature signals:
- Loose terminal screws
- Damaged RTD cables
- Poor shielding
- Ground loops
- Moisture contamination
4. Confirm Mark VIe Configuration
Before commissioning a replacement module, verify:
- ToolboxST hardware configuration
- I/O assignment
- Channel calibration
- Alarm thresholds
- Controller communication status
