GE IS220PPDAH1B | Feedback Module | Mark VIe Power Distribution Monitoring

Key Technical Specifications

GE documentation identifies IS220PPDAH1B as the Mark VIe/Mark VIeS Power Distribution System Feedback module. The official Mark VIe certification documentation lists it separately from the analog, discrete, RTD, servo, and communications I/O packs.

The PPDA pack is installed on compatible power-distribution boards and provides feedback information from the power-distribution system to the Mark VIe control architecture. Available technical documentation identifies two 115/230 VAC analog feedbacks, local ground monitoring, and multiple fused-AC feedback signals.

IS220PPDAH1B

Product Introduction

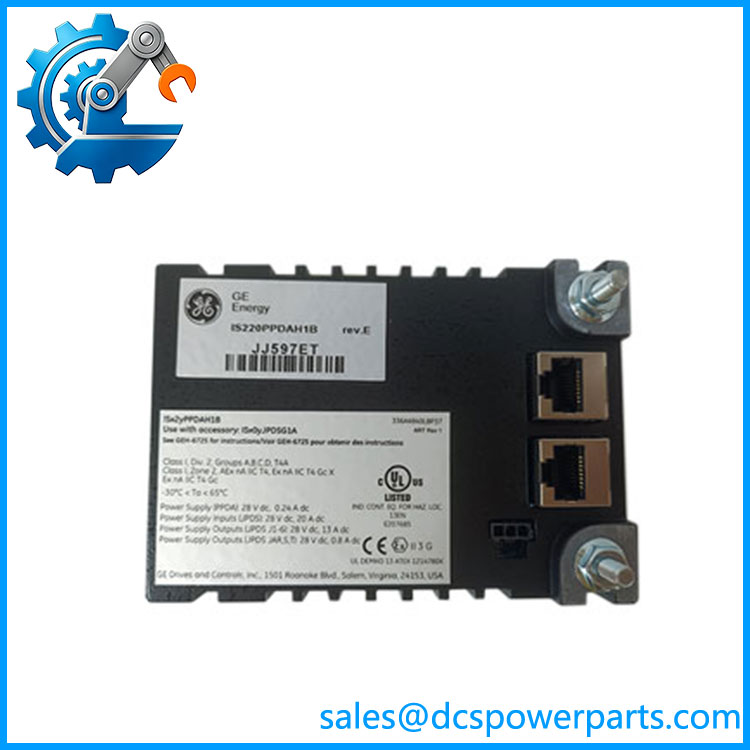

GE IS220PPDAH1B Power Distribution Feedback Module

The GE IS220PPDAH1B is a Mark VIe Power Distribution System Feedback I/O pack. Unlike a conventional field I/O module, it monitors internal power-distribution hardware and passes diagnostic and status information into the turbine control architecture through the IONet. It is designed to operate with compatible JPDS, JPDC, or JPDM power-distribution boards.

Its value is diagnostic visibility. The pack allows the control system to see power-distribution feedback rather than treating the power subsystem as a black box. For turbine maintenance, that distinction matters when investigating cabinet power faults, feedback abnormalities, or board-level diagnostic conditions.

Application Scenarios & Field Pitfalls

Engineering Pain Point

A turbine can have a perfectly healthy controller while a problem exists farther upstream in its internal power-distribution hardware. That is where the IS220PPDAH1B becomes important. It receives feedback from the power-distribution assembly and places the resulting information onto the IONet, giving the Mark VIe system a way to diagnose power-related conditions. The PPDA is therefore a system-monitoring component, not a replacement for a conventional AI or DI pack.

Typical Applications

• Gas Turbines — Mark VIe cabinet power-distribution monitoring and diagnostics.
• Steam Turbine Control — Internal control-system power feedback and fault monitoring.
• Power Generation — Monitoring redundant or distributed control-system power assemblies.
• Industrial Turbomachinery — Diagnostic feedback from JPDS/JPDC/JPDM-based power-distribution arrangements.

Technical Pitfalls to Avoid

1. Do not confuse PPDA with a conventional process I/O pack.
   The is specifically a Power Distribution System Feedback pack. It does not provide the same field-signal functionality as Mark VIe PAIC, PDIA, PDOA, or PRTD modules. GE’s documentation classifies these modules separately.
2. Verify the host power-distribution board.
   The PPDA is associated with JPDS, JPDC, and JPDM boards. Confirm the installed board and feedback arrangement before replacing the pack.
3. Check the revision carefully.
   GE’s lifecycle documentation lists IS220PPDAH1A as the earlier catalog number and as the available replacement catalog number. Do not assume every older Mark VIe configuration should be changed without checking the applicable system documentation.
4. Ground-fault diagnostics depend on the associated hardware.
   Available documentation indicates ground-fault detection when the PPDA is used with the appropriate JPDE arrangement. Confirm the complete board configuration before diagnosing a missing or abnormal ground-fault signal.
5. Do not use questionable channel-count specifications as a replacement criterion.
   Some commercial descriptions incorrectly characterize this part as a conventional multi-channel digital I/O module. GE identifies specifically as a Power Distribution System Feedback Module.

Related Products

• GE IS220PPDAH1A — Earlier PPDA catalog number. GE’s lifecycle documentation identifies the H1B version as the available catalog-number replacement for the H1A. Verify system revision requirements before substitution.
• GE IS220PDIAH1B — Mark VIe Control Discrete Input module. It is used for conventional discrete field inputs and is functionally different from the PPDA power-feedback pack.
• GE IS220PDOAH1B — Mark VIe Control Discrete Output module. It handles discrete output functions and is not a substitute for PPDA power-distribution monitoring.
• GE IS220PAICH1B — Mark VIe Control Analog I/O module providing analog input/output functions. It belongs to the same Mark VIe I/O-pack architecture but serves process instrumentation rather than power-distribution feedback.
• GE IS220PRTDH1B — Mark VIe RTD input module for resistance-temperature measurement. Use it for RTD signals, not internal power-system feedback.
• GE IS220PHRAH1B — Mark VIe HART-enabled analog I/O module. It supports HART instrumentation and has a completely different field-I/O role from the PPDA.
• GE IS220PSCAH1B — Mark VIe serial communications module. It is intended for serial communication functions rather than power-distribution feedback acquisition.
• GE IS220PPRFH1B — Mark VIe PROFIBUS master gateway module. Its purpose is network communication with PROFIBUS devices, not power monitoring.
• GE IS220PSVOH1B — Mark VIe servo control module. It is used for servo-related control and feedback functions and should not be confused with the PPDA power-feedback pack.
• GE IS420PVIBH1B — Mark VIe vibration-monitoring module. It addresses machinery vibration acquisition rather than internal control-system power feedback.

Procurement note: The critical identification for this component is , not simply “Mark VIe I/O Pack.” Confirm the PPDA function, H1B revision, host JPDS/JPDC/JPDM board, IONet configuration, and associated power-distribution hardware before approving a replacement. The available GE documentation clearly distinguishes PPDA from the Mark VIe’s conventional analog, discrete, RTD, and communications packs.
