Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS220PDIAH1A |
| Functional Acronym | PDIA |
| Product Type | Mark VIe Discrete Input I/O Pack |
| System Platform | GE Mark VIe Control System |
| Input Type | Discrete contact inputs |
| Input Channels | Up to 24 contact inputs |
| Input Voltage Levels | Supports multiple voltage levels depending on terminal board type |
| Communication | Dual Ethernet IONet interface |
| Power Supply | 28 VDC nominal |
| Power Connection | Three-pin DC power input |
| Field Interface | DC-37 connector to terminal board |
| Diagnostic Interface | Front infrared serial port |
| Status Indicators | Power, Ethernet link/activity LEDs |
| Mounting | Mark VIe distributed I/O installation |
| Operating Environment | Industrial turbine control cabinets |
| Hazardous Area Support | Available with approved terminal board combinations |
Product Introduction
GE IS220PDIAH1A Overview

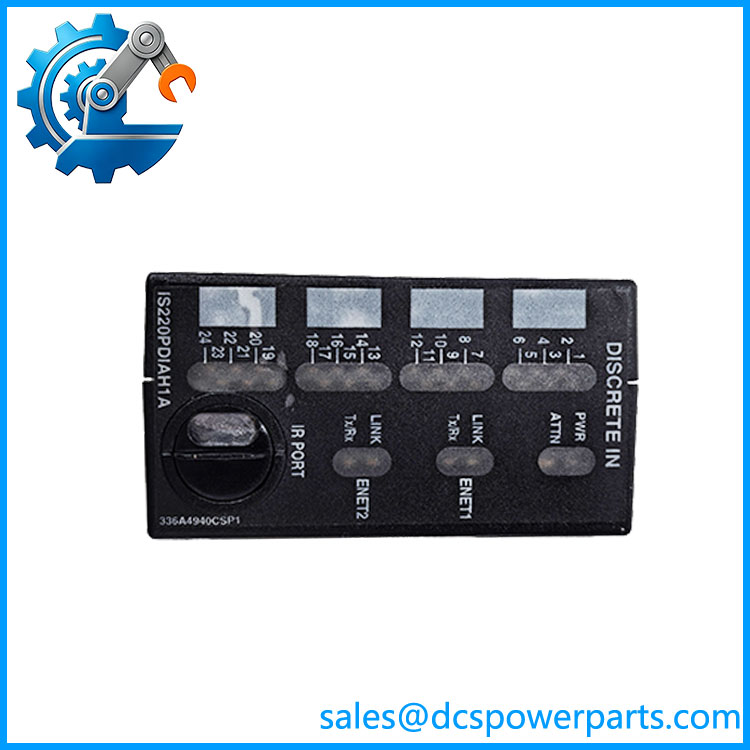

The GE IS220PDIAH1A is a Mark VIe Discrete Input I/O Pack designed for GE Speedtronic turbine control systems. It provides the interface between field-level discrete devices and the Mark VIe control architecture, allowing the controller to acquire status signals from switches, relays, contact devices, and other binary field instruments.
The GE IS220PDIAH1A combines a processor board common to the Mark VIe distributed I/O family with a dedicated acquisition board designed specifically for discrete input functions. The module receives field signals through an associated terminal board and transfers processed input data through one or two Ethernet communication networks to the turbine controller.
The GE IS220PDIAH1A PDIA module supports up to 24 contact inputs and works with multiple Mark VIe terminal boards depending on the required field interface arrangement. Compatible terminal boards include the IS200STCIH1A, IS200STCIH2A, IS200STCIH8A, IS200TBCIH2C, and IS200TBCIH4C models.
The GE IS220PDIAH1A is commonly installed in turbine control cabinets where discrete feedback signals are required for monitoring and sequencing functions. Typical signals include valve position feedback, breaker status, permissive contacts, trip indications, and auxiliary equipment states.
The is not a standalone PLC input module. It is part of the Mark VIe distributed I/O architecture, and correct operation depends on the installed terminal board, I/O network configuration, controller software database, and turbine application logic.
When replacing an , engineers should verify the terminal board type, IONet configuration, firmware revision, application configuration, and existing input assignments. Hardware replacement without matching the Mark VIe configuration may result in communication alarms or incorrect field signal interpretation.
IS220PDIAH1A
Application Scenarios & Field Considerations
Engineering Pain Point
Common issues involving the PDIA module include:
- Loss of discrete input signals
- Turbine permissive failures
- Incorrect switch status feedback
- I/O communication alarms
- Startup sequence interruptions
The PDIA module may be the source of the issue, but engineers should also inspect:
- Terminal board wiring
- Field contact condition
- 28 VDC supply stability
- Ethernet communication links
- Controller I/O configuration
Recommended troubleshooting steps:
- Check PDIA LED status
- Verify Ethernet link activity
- Inspect terminal board connections
- Confirm input voltage levels
- Review Mark VIe diagnostic alarms
- Compare I/O configuration database
The provides field signal acquisition, but reliable turbine operation depends on the complete Mark VIe I/O chain.
Typical Applications
Gas Turbine Control Systems
Used for:
- Turbine startup sequencing
- Protection logic inputs
- Valve and actuator feedback
- Auxiliary equipment monitoring
Steam Turbine Systems
Applied for:
- Trip signal monitoring
- Mechanical protection feedback
- Equipment status acquisition
Generator Control Applications
Used for:
- Breaker status inputs
- Synchronization permissives
- Electrical protection signals
Industrial Automation Systems
Applied for:
- Contact monitoring
- Remote equipment status
- Discrete process signals
Technical Pitfalls to Avoid
1. Confirm Terminal Board Compatibility
Before replacement, verify:
- Installed terminal board model
- Field wiring arrangement
- Input voltage requirements
- Hazardous area certification needs
The PDIA pack depends on the correct terminal board combination.
2. Check Ethernet Network Configuration
Verify:
- ENET1 / ENET2 connections
- Network addressing
- I/O controller assignment
- Communication status
3. Inspect Field Inputs
Check:
- Contact resistance
- External voltage supply
- Wiring continuity
- Terminal tightness
4. Preserve Existing Configuration
Before replacement:
- Record I/O assignments
- Save Mark VIe configuration files
- Document terminal wiring
- Verify controller software compatibility
